IS Z (5901079) - Ferris ISZ Series 61" Zero-Turn Mower, 25hp Kohler (SN: 2269 & Above) Instrument & Control Panel Group Parts Diagram

ISZ Series 61" Zero-Turn Mower, 25hp Kohler

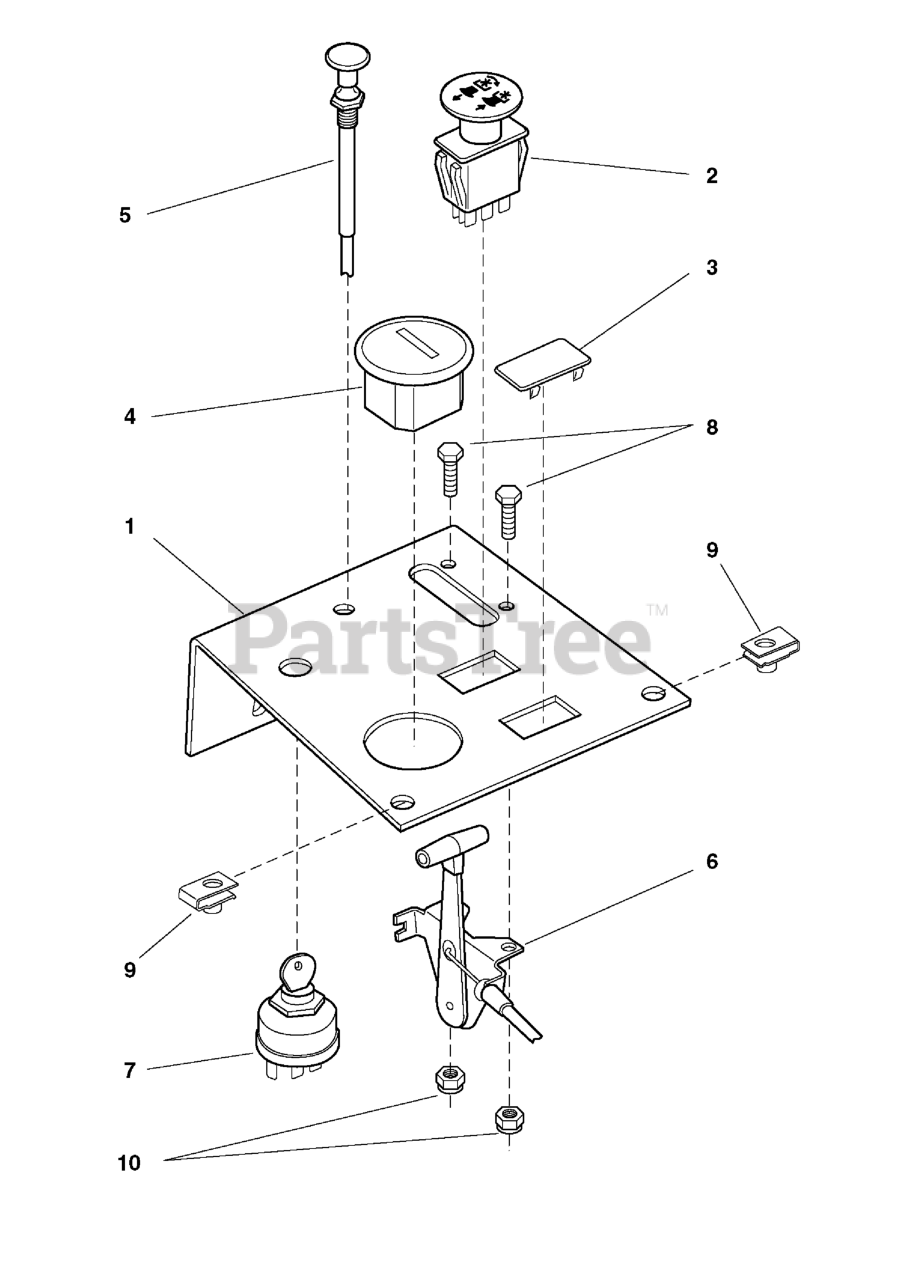

Instrument & Control Panel Group Parts Diagram

  • Title

1

Ferris 5045937B

PANEL, Instrument

$

$

Currently unavailable

2

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

3

Ferris 1709188

HOLE PLUG
(Superseded to 1709188SM)

$4.99

$

In Stock, Qty 6

0

4

Ferris 5020060

HOUR METER

$250.99

$

Usually ships in 2-12 days

0

5

Ferris 5021663

CABLE, Choke Control, 57"
(Superseded to 5021663SM)

Note: (Kawasaki)

$58.99

$

Usually ships in 2-12 days

0

5

Ferris 5021675

CABLE, CHOKE CONTROL, 45

Note: (Kohler)

$63.99

$

In Stock, only 1 left!

0

6

Ferris 5021662

CABLE, Throttle, 54"

$80.99

$

Usually ships in 2-12 days

0

7

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

Usually ships in 2-12 days

0

8

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

9

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

10

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0
