IS Z (5901079) - Ferris ISZ Series 61" Zero-Turn Mower, 25hp Kohler (SN: 2269 & Above) Pump Drive Group Parts Diagram

ISZ Series 61" Zero-Turn Mower, 25hp Kohler

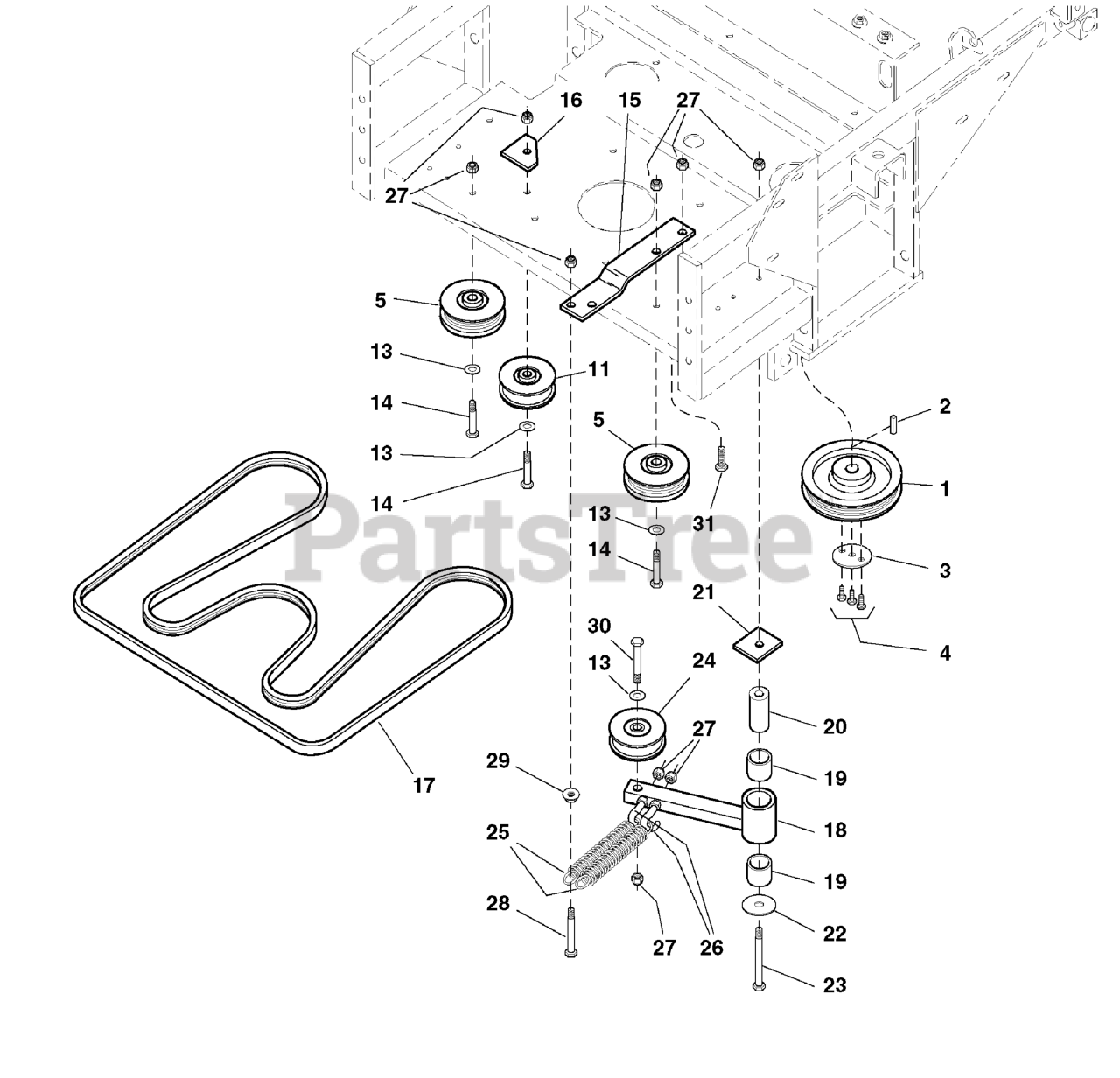

Pump Drive Group Parts Diagram

  • Title

1

Ferris 5022155

PULLEY, Pump Drive
(Superseded to 5022155SM)

$130.99

$

Usually ships in 2-12 days

0

2

Ferris 5023254

KEY, 5MM SQ. x 25MM w/ Round Ends
(Superseded to 5023254SM)

$4.49

$

In Stock, only 1 left!

0

3

Ferris 5045143

WASHER, Pulley Retaining

$

$

Currently unavailable

4

Ferris 5025248

BOLT, M6 x 10MM

$

$

Currently unavailable

5

Ferris 5060020

IDLER PULLEY ASSEMBLY

Note: (Includes Ref No. 6, 7, 8, 9 & 10)

$119.99

$

Usually ships in 2-12 days

0

6

Ferris 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

7

Ferris 5020865

SNAP RING, Internal
(Superseded to 5020865FS)

$2.99

$

Usually ships in 2-12 days

0

8

Ferris 5020880

INSERT, Bearing
(Superseded to 5020880SM)

$12.99

$

Usually ships in 2-12 days

0

9

Ferris 5021879

INSERT, Bearing, Shoulder
(Superseded to 5021879FS)

$16.99

$

Usually ships in 2-12 days

0

10

Ferris 5045073

PULLEY, Idler

$

$

Not available

11

Ferris 5060021

BACKSIDE IDLER PULLEY ASSEMBLY
(Superseded to 5060021SM)

Note: (Includes Ref No. 6, 7, 8, 9 & 12)

$121.99

$

Usually ships in 2-12 days

0

12

Ferris 5045140

PULLEY, Backside Idler
(Superseded to 5045140FS)

$99.99

$

Usually ships in 2-12 days

0

13

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 2 left!

0

15

Ferris 5045396

SPRING ANCHOR

$

$

Currently unavailable

16

Ferris 5045144

SUPPORT, Pulley

$

$

Not available

17

Ferris 5022062

BELT, Pump Drive
(Superseded to 5022062SM)

$152.99

$

In Stock, only 1 left!

0

18

Ferris 5045132B

IDLER ARM ASSEMBLY, Complete
(Superseded to 5045132BFS)

Note: (Includes Ref No. 19)

$103.99

$

Usually ships in 2-12 days

0

19

Ferris 5022157

BUSHING, Brass
(Superseded to 5022157SM)

$12.99

$

Usually ships in 2-12 days

0

20

Ferris 5102004

SPACER, .39 X 1.00 X 2.55, SS
(Superseded to 5102004YP)

$27.99

$

Usually ships in 2-12 days

0

21

Ferris 5045090

SPACER, Idler Pivot
(Superseded to 5045090SM)

$9.99

$

Usually ships in 2-12 days

0

22

Ferris 5025305

WASHER, 3/8 x 1-3/4
(Superseded to 5025305SM)

$3.99

$

Usually ships in 2-12 days

0

23

Ferris 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, only 1 left!

0

24

Ferris 5060040

HYDRO IDLER PULLEY ASSEMBLY
(Superseded to 5060040SM)

Note: (Includes Ref No. 6, 7, 8, 9 & 12)

$180.99

$

Usually ships in 2-12 days

0

25

Ferris 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.49

$

Usually ships in 2-12 days

0

26

Ferris 5025290

SCREW HOOK
(Superseded to 5025290SM)

$5.99

$

Usually ships in 2-12 days

0

27

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

28

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

Usually ships in 2-12 days

0

29

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

30

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 6

0

31

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0
