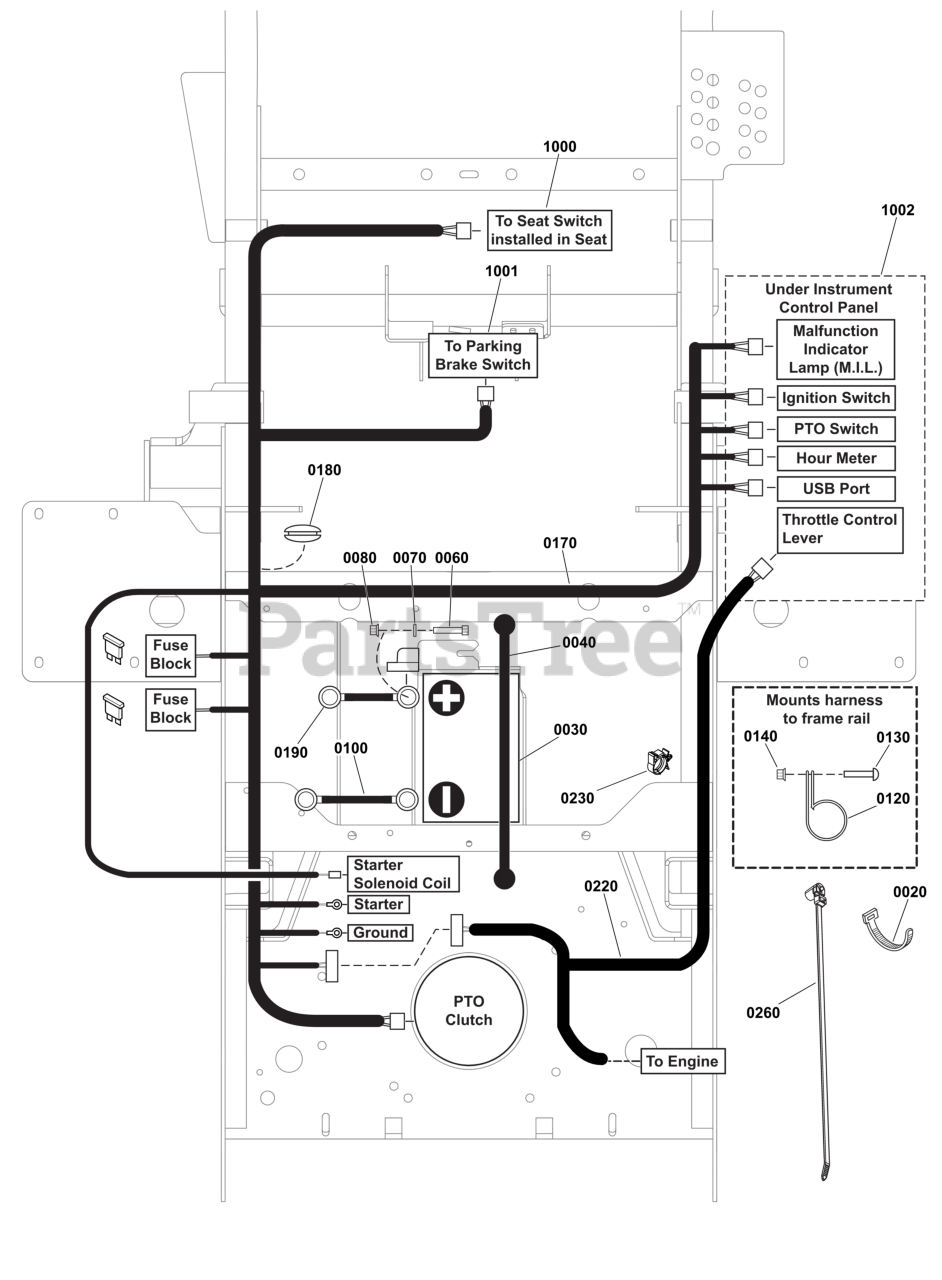

ISX 2200 (5902080) - Ferris ISX2200 Series 60" Zero-Turn Mower, 26hp Kawasaki Electrical Group - Kawasaki FT730V EFI - S/N: 4002328397 and Above Parts Diagram

ISX2200 Series 60" Zero-Turn Mower, 26hp Kawasaki

Electrical Group - Kawasaki FT730V EFI - S/N: 4002328397 and Above Parts Diagram

  • Title

0020

Ferris 5021029SM

TIE, Cable 11" Long

$

$

Not available

0030

BATTERY, 11U1L, 350 CCA

$

$

Not available

0040

Ferris 1722009SM

STRAP, Rubber, 13"

$10.99

$

In Stock, only 3 left!

0

0060

Ferris 5025010X6SM

BOLT, 1/4-20 X 3/4" G

$3.99

$

In Stock, Qty 20+

0

0070

Ferris 703332

WASHER

$4.49

$

In Stock, Qty 20+

0

0080

Ferris 5025126FS

NUT

$4.49

$

Usually ships in 2-12 days

0

0100

Ferris 5021406SM

BATTERY CABLE, NEGATI

$16.99

$

Usually ships in 2-12 days

0

0120

Ferris 5021500FS

CLAMP

$4.49

$

Usually ships in 2-12 days

0

0130

Ferris 5025299X8YP

CAPSCREW

$4.49

$

Usually ships in 2-12 days

0

0140

Ferris 5025391FS

NUT

$3.99

$

In Stock, Qty 7

0

0170

Ferris 84011123

HARNESS, Wiring

$

$

Currently unavailable

0180

Ferris 5102677YP

GROMMET, 1-1/2" ID FOR 1/4" METAL

$7.49

$

Usually ships in 2-12 days

0

0190

Ferris 5021405SM

BATTERY CABLE, POSITI

$18.99

$

Usually ships in 2-12 days

0

0220

Ferris 84011447

HARNESS, Wiring, ETC Lever

$

$

Currently unavailable

0230

Ferris 5104705YP

CLIP

$2.49

$

Usually ships in 2-12 days

0

0260

Ferris 84011125

CABLE, Tie (Sold as a bag of 5)

$

$

Currently unavailable

1000

Refer to: Seat Mount & Floor Group

$

$

Not available

1001

Refer to: Parking Brake Group

$

$

Not available

1002

Refer to: Instrument Control Panel Group

$

$

Not available
