ISX 2200 (5902080) - Ferris ISX2200 Series 60" Zero-Turn Mower, 26hp Kawasaki Fuel Tank and Mount Group Parts Diagram

ISX2200 Series 60" Zero-Turn Mower, 26hp Kawasaki

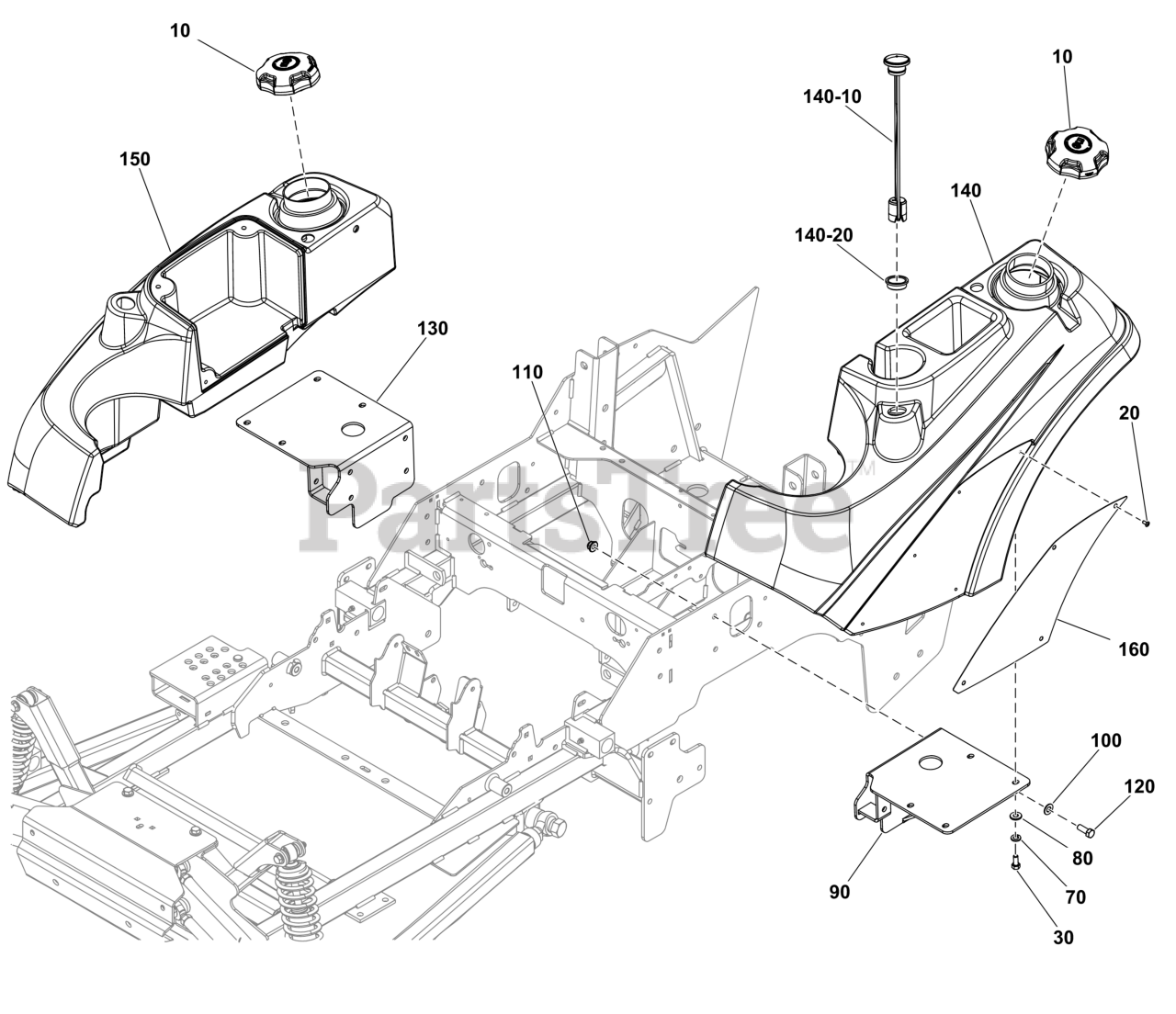

Fuel Tank and Mount Group Parts Diagram

  • Title

10

Ferris 84005958

CAP, FUEL TANK

$40.99

$

In Stock, only 1 left!

0

20

Ferris 5025386SM

SCREW, #10-24 X 3/8"

$3.99

$

Usually ships in 2-12 days

0

30

Ferris 5025011X6SM

BOLT, 5/16-18 X 3/4"

$3.99

$

In Stock, Qty 6

0

70

Ferris 5025170SM

WASHER, 5/16" LOCK

$3.99

$

Usually ships in 2-12 days

0

80

Ferris 5025292SM

WASHER, 5/16" GD.9 FL

$3.99

$

In Stock, only 4 left!

0

90

Ferris 84008230

MOUNT, Tank

$

$

Currently unavailable

100

Ferris 5025156FS

WASHER

$3.49

$

Usually ships in 2-12 days

0

110

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 15

0

120

Ferris 5025013X8SM

BOLT, 3/8-16 X 1" GD5

$3.99

$

In Stock, only 4 left!

0

130

Ferris 84008231

MOUNT, Tank

$159.99

$

Usually ships in 2-12 days

0

140

Ferris 5108364FS

TANK, FUEL

Note: (Includes items # 140-10 and 140-20.)

$480.99

$

Usually ships in 2-12 days

0

140-10

Ferris 5022917FS

GAUGE, FUEL

Note: (One per fuel tank)

$48.99

$

Usually ships in 2-12 days

0

140-20

Ferris 5022917X1SM

GROMMET, FUEL GAUGE

Note: (One per fuel tank)

$6.99

$

In Stock, only 2 left!

0

150

Ferris 5108363FS

TANK, FUEL

$480.99

$

Usually ships in 2-12 days

0

160

Ferris 5401095BFS

BADGE

$49.99

$

Usually ships in 2-12 days

0
