ISX 2200 (5902080) - Ferris ISX2200 Series 60" Zero-Turn Mower, 26hp Kawasaki Instrument Control Panel Group - Fuel Injected Models with Electronic Throttle Control Lever Parts Diagram

ISX2200 Series 60" Zero-Turn Mower, 26hp Kawasaki

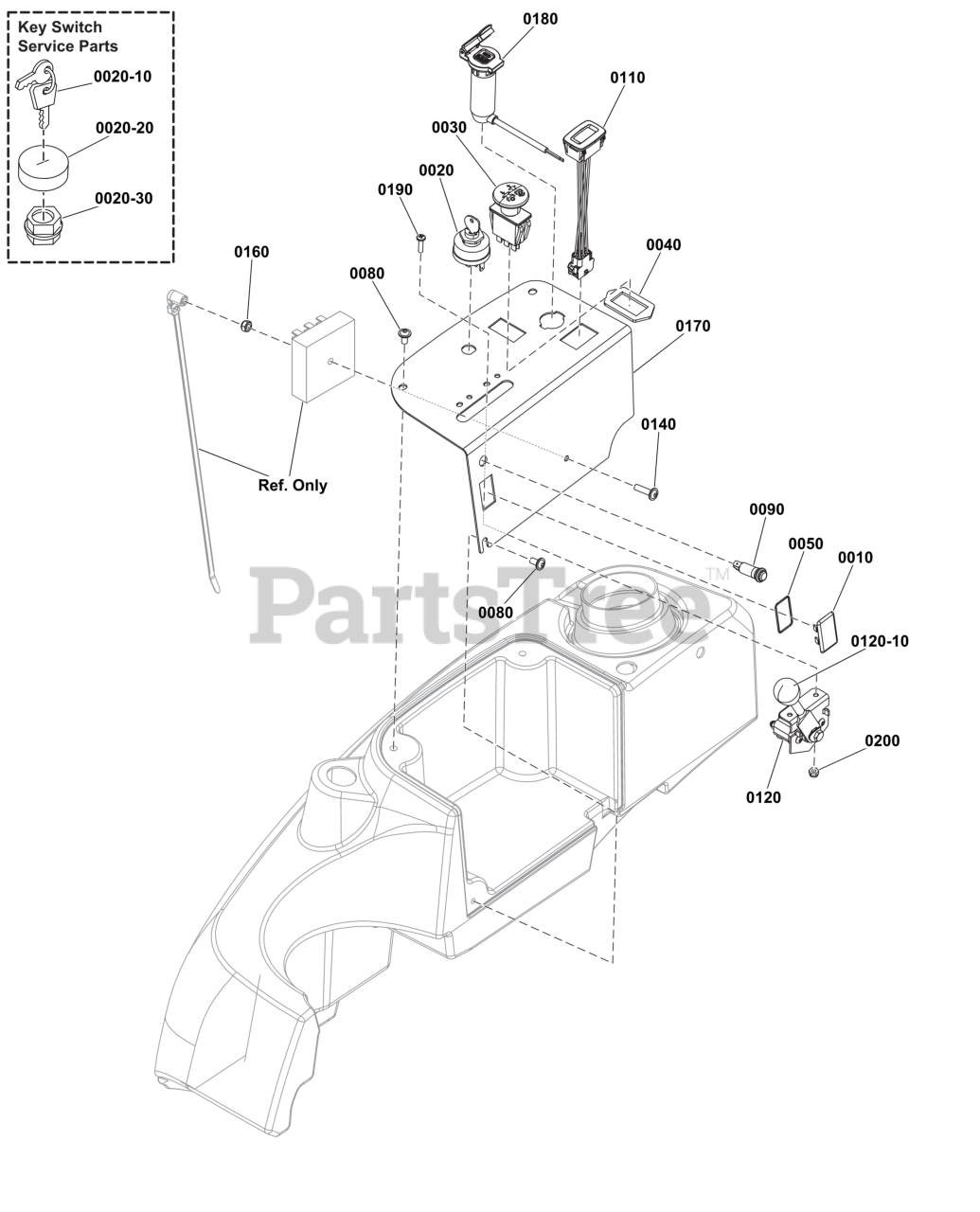

Instrument Control Panel Group - Fuel Injected Models with Electronic Throttle Control Lever Parts Diagram

  • Title

0010

Ferris 1709188SM

PLUG, BLACK PLASTIC

$4.99

$

In Stock, Qty 7

0

0020

Ferris 5020927FS

SWITCH, IGNITION

Note: (Includes items # 0020-10, 0020-20, and 0020-30).

$33.99

$

In Stock, Qty 11

0

0020-10

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

0020-20

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, Qty 7

0

0020-30

Ferris 5022791SM

NUT, PLASTIC (SV)

$3.49

$

In Stock, only 2 left!

0

0030

Ferris 1722887SM

SWITCH-PTO PUSH

$33.99

$

In Stock, Qty 20+

0

0040

Ferris 5022222SM

RING, SWITCH RETAINER

$4.49

$

In Stock, only 1 left!

0

0050

Ferris 5022269SM

O-RING, 7/8" ID X 1/1

$3.49

$

Usually ships in 2-12 days

0

0080

Ferris 84002228

SCREW, FLANGE

$2.49

$

In Stock, only 2 left!

0

0090

Ferris 5103809YP

LIGHT, Indicator

$29.99

$

Usually ships in 2-12 days

0

0110

Ferris 84008510

HOURMETER

$33.99

$

In Stock, only 1 left!

0

0120

Ferris 84008804

CONTROL, Electronic Throttle

Note: (Includes item # 0120-10).

$

$

Currently unavailable

0120-10

Ferris 5046360X1SM

KNOB, THROTTLE CONTRO

$10.99

$

In Stock, only 2 left!

0

0140

Ferris 5025299X8YP

CAPSCREW

$4.49

$

Usually ships in 2-12 days

0

0160

Ferris 5025095SM

NUT, 1/4-20 HEX NYLON

$3.49

$

In Stock, only 4 left!

0

0170

PANEL, CONTROL, COMPACT, EFI - BLK

$

$

Not available

0180

Ferris 84008798

USB Port

$

$

Currently unavailable

0190

Ferris 5025179X6SM

SCREW - #10-24

$3.99

$

Usually ships in 2-12 days

0

0200

Ferris 5025271FS

NUT

$3.99

$

Usually ships in 2-12 days

0
