ISX 3300 (5901914) - Ferris ISX3300 Series Zero-Turn Mower, 37hp Briggs & Stratton Instrument Control Panel Parts Diagram

ISX3300 Series Zero-Turn Mower, 37hp Briggs & Stratton

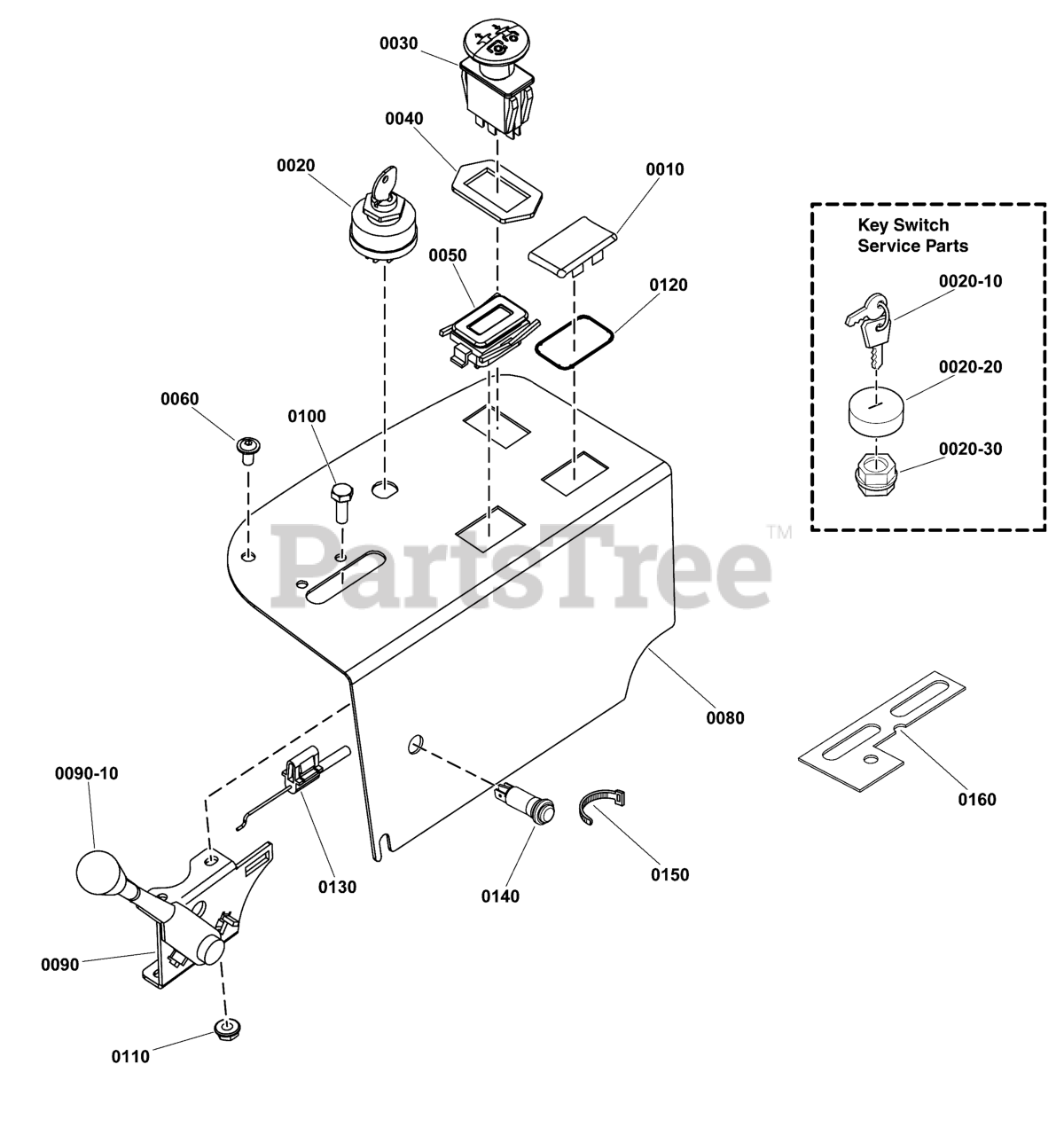

Instrument Control Panel Parts Diagram

  • Title

0010

Ferris 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, Qty 5

0

0020

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

In Stock, only 1 left!

0

0020-10

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

0020-20

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

Usually ships in 2-12 days

0

0020-30

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

Usually ships in 2-12 days

0

0030

Ferris 1722887

SWITCH-PTO PUSH
(Superseded to 1722887SM)

$33.99

$

Usually ships in 2-12 days

0

0040

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

0050

Ferris 84008510

HOURMETER

$33.99

$

Usually ships in 2-12 days

0

0060

Ferris 5106469

SCREW, FLANGE, ALLEN HD, 1/4-20X.5 S/S
(Superseded to 84002228)

$2.49

$

In Stock, only 3 left!

0

0080

Ferris 5412044A

PANEL, CONTROL, IS2100/3200 - BLK

$

$

Not available

0090

Ferris 5101537

LEVER, THROTTLE CONTROL, HEAVY-DUTY
(Superseded to 5101537SM)

$48.99

$

Usually ships in 2-12 days

0

0090-10

Ferris 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

$10.99

$

Usually ships in 2-12 days

0

0100

Ferris 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

0110

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

0120

Ferris 5022269

O-RING, 7/8" ID X 1/16" W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

0130

Ferris 5101076

CABLE, THROTTLE 47"
(Superseded to 5101076SM)

$35.99

$

Usually ships in 2-12 days

0

0140

Ferris 5103809

LIGHT, INDICATOR, PANEL, LED, RED
(Superseded to 5103809YP)

$29.99

$

Usually ships in 2-12 days

0

0150

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

0160

PLATE, THROTTLE STOP, SW35

$

$

Not available
