ISX 3300 (5901979) - Ferris ISX3300 Series 61" Zero-Turn Mower, 31hp Kawasaki Instrument Control Panel Group Parts Diagram

ISX3300 Series 61" Zero-Turn Mower, 31hp Kawasaki

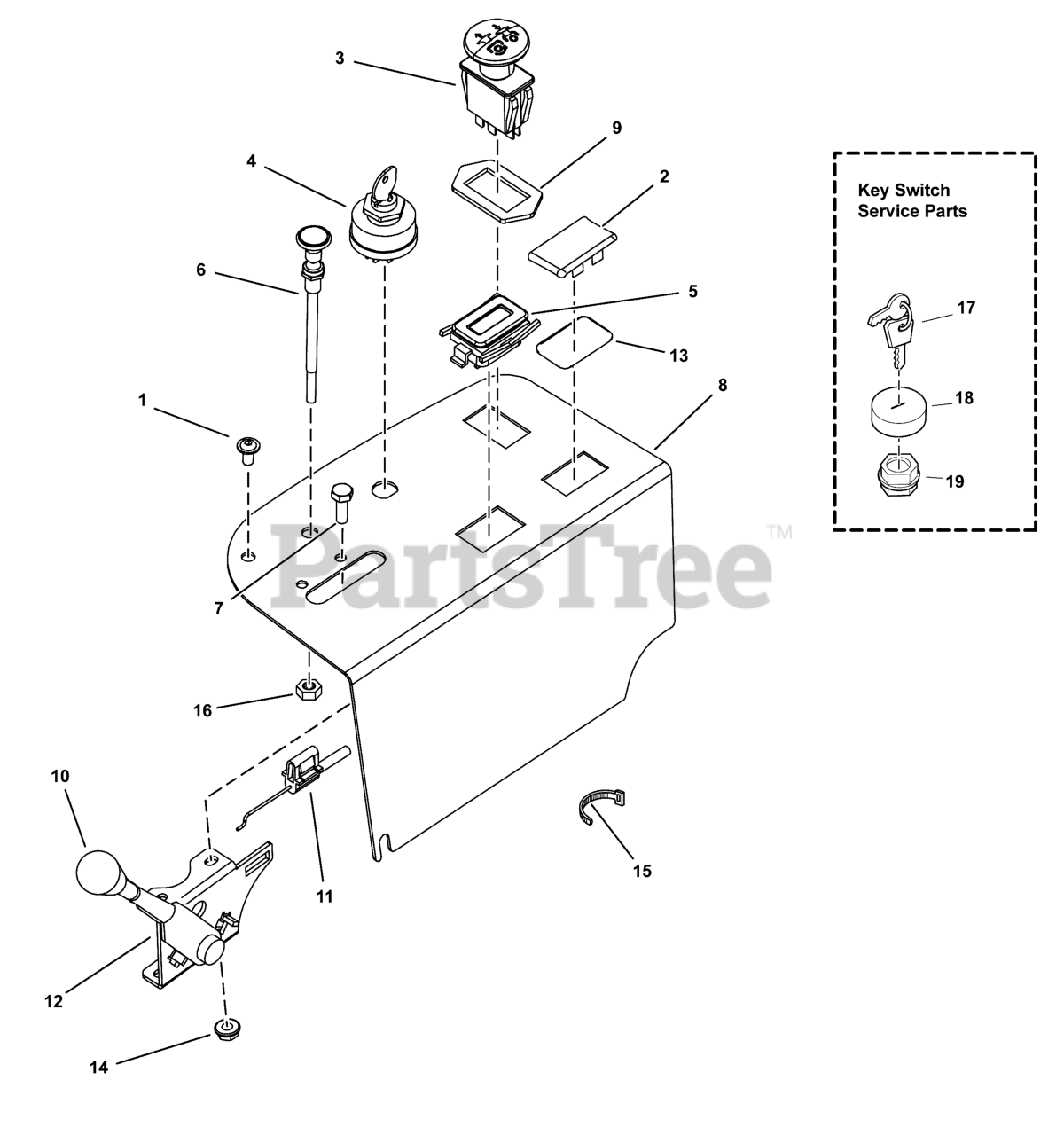

Instrument Control Panel Group Parts Diagram

  • Title

1

Ferris 5106469

SCREW, FLANGE, ALLEN HD, 1/4-20X.5 S/S
(Superseded to 84002228)

$2.99

$

In Stock, only 3 left!

0

2

Ferris 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$5.49

$

In Stock, Qty 7

0

3

Ferris 1722887

SWITCH-PTO PUSH
(Superseded to 1722887SM)

$35.99

$

In Stock, Qty 20+

0

4

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Includes components #17, #18, and #19)

$34.99

$

In Stock, Qty 7

0

5

Ferris 84008510

HOURMETER

$35.99

$

In Stock, only 2 left!

0

6

Ferris 5047779

CABLE, CHOKE CONTROL, 51" (Z)
(Superseded to 5047779SM)

$55.99

$

In Stock, only 2 left!

0

7

Ferris 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$7.49

$

Usually ships in 2-12 days

0

8

Ferris 5411933AA

PANEL, CONTROL, IS2100Z - BLK
(Superseded to 5411933AAFS)

$34.99

$

Usually ships in 2-12 days

0

9

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 2 left!

0

10

Ferris 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

Note: (SV)

$11.99

$

In Stock, only 2 left!

0

11

Ferris 5101072

CABLE, THROTTLE, 52"
(Superseded to 5101072FS)

$28.99

$

In Stock, only 2 left!

0

12

Ferris 5101537

LEVER, THROTTLE CONTROL, HEAVY-DUTY
(Superseded to 5101537SM)

Note: (Includes component #10)

$50.99

$

In Stock, only 4 left!

0

13

Ferris 5022269

O-RING, 7/8" ID X 1/16" W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

16

Ferris 5025035

NUT, 3/8-24 HEX (SV)
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5022789

KEY, IGNITION MOLDED SET

Note: (SV)

$

$

Currently unavailable

18

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

Note: (SV)

$4.99

$

In Stock, Qty 7

0

19

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

Note: (SV)

$3.49

$

In Stock, only 2 left!

0
