ISX 3300 (5902036) - Ferris ISX3300 Series Zero-Turn Mower, 40hp Briggs & Stratton Electrical Group Parts Diagram

ISX3300 Series Zero-Turn Mower, 40hp Briggs & Stratton

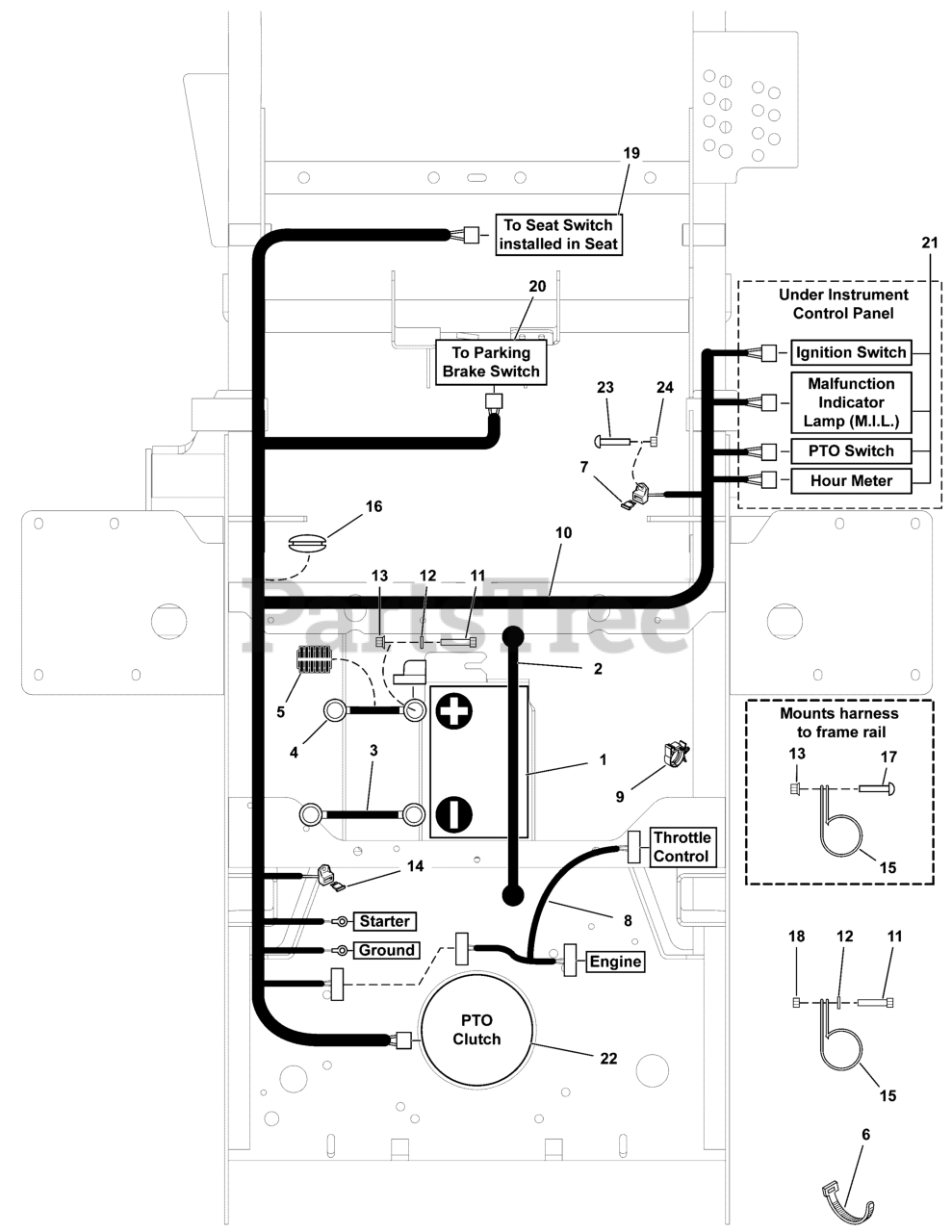

Electrical Group Parts Diagram

  • Title
1

BATTERY, CE, 12 VOLT 340 CCA - 11U1L

$

$

Not available

2

Ferris 1722009

STRAP, BATTERY, 14 LONG, Rubber
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

3

Ferris 5021406

BATTERY CABLE, NEG, 22, 1/4-5/16
(Superseded to 5021406SM)

$16.99

$

Usually ships in 2-12 days

0

4

Ferris 5021405

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5021405SM)

$18.99

$

Usually ships in 2-12 days

0

5

Ferris 5050927X16

WIRE LOOM, 3/8 ID X 16 IN
(Superseded to 5050927X16YP)

$4.99

$

Usually ships in 2-12 days

0

6

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

7

Ferris 5102710

FUSE, ATO, 25 AMP
(Superseded to 5102710YP)

Note: (SV)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5109278

HARNESS, THROTTLE JUMPER, BRIGGS EFI

$

$

Currently unavailable

9

Ferris 5104705

ROSEBUD LOOM CLIP
(Superseded to 5104705YP)

$2.49

$

Usually ships in 2-12 days

0

10

Ferris 5105535

HARNESS, Wiring, Large ZTR
(Superseded to 5105535YP)

$207.99

$

Usually ships in 2-12 days

0

11

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

12

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

13

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

14

Ferris 5101935

FUSE, ATO-15 (15 AMP)(SV)
(Superseded to 5101935YP)

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

15

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

16

Ferris 5102677

GROMMET, 1-1/2" ID FOR 1/4" METAL

$

$

Currently unavailable

17

Ferris 5025299X8

SCREW, 1/4-20 X 1, ALLEN BH, CZ
(Superseded to 5025299X8YP)

$4.49

$

Usually ships in 2-12 days

0

18

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

19

Refer to: Seat Mount & Floor Group

$

$

Not available

20

Refer to: Parking Brake Group

$

$

Not available

21

Refer to: Instrument Control Panel Group

$

$

Not available

22

Refer to: Engine & PTO Group

$

$

Not available

23

Ferris 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$

$

Currently unavailable

24

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 5101932

CLAMP, VINYL INSULATED, .625
(Superseded to 5101932YP)

Note: (Not illustrated.)

$7.99

$

Usually ships in 2-12 days

0
