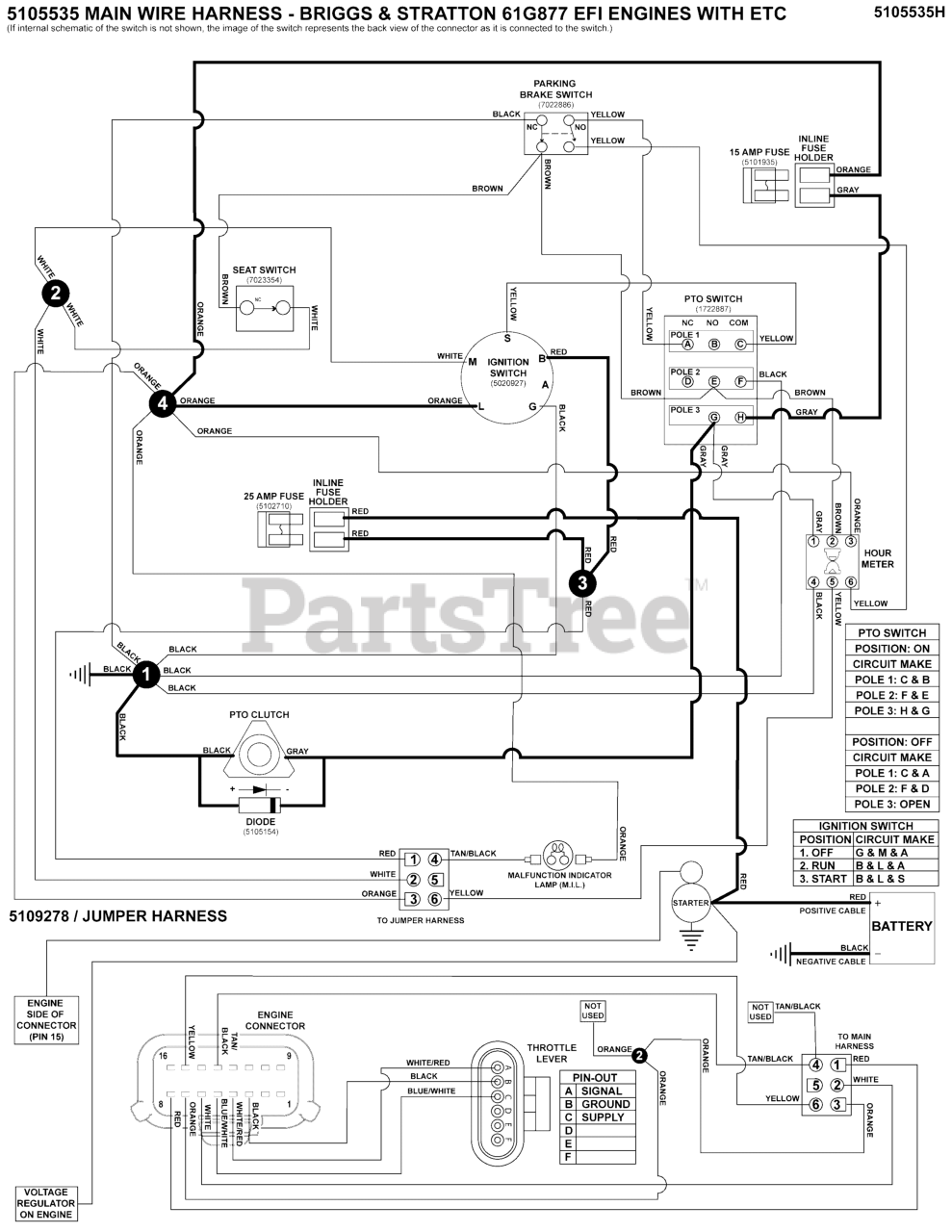

ISX 3300 (5902036) - Ferris ISX3300 Series Zero-Turn Mower, 40hp Briggs & Stratton Electrical Schematic - PTO Clutch Circuit - B&S 61G877 Parts Diagram

ISX3300 Series Zero-Turn Mower, 40hp Briggs & Stratton

Electrical Schematic - PTO Clutch Circuit - B&S 61G877 Parts Diagram

  • Title
5105535

Ferris 5105535

HARNESS, Wiring, Large ZTR
(Superseded to 5105535YP)

$207.99

$

Usually ships in 2-12 days

0

5109278

Ferris 5109278

HARNESS, THROTTLE JUMPER, BRIGGS EFI

$

$

Currently unavailable
