ISX 3300 (5902036) - Ferris ISX3300 Series Zero-Turn Mower, 40hp Briggs & Stratton Fender Group Parts Diagram

ISX3300 Series Zero-Turn Mower, 40hp Briggs & Stratton

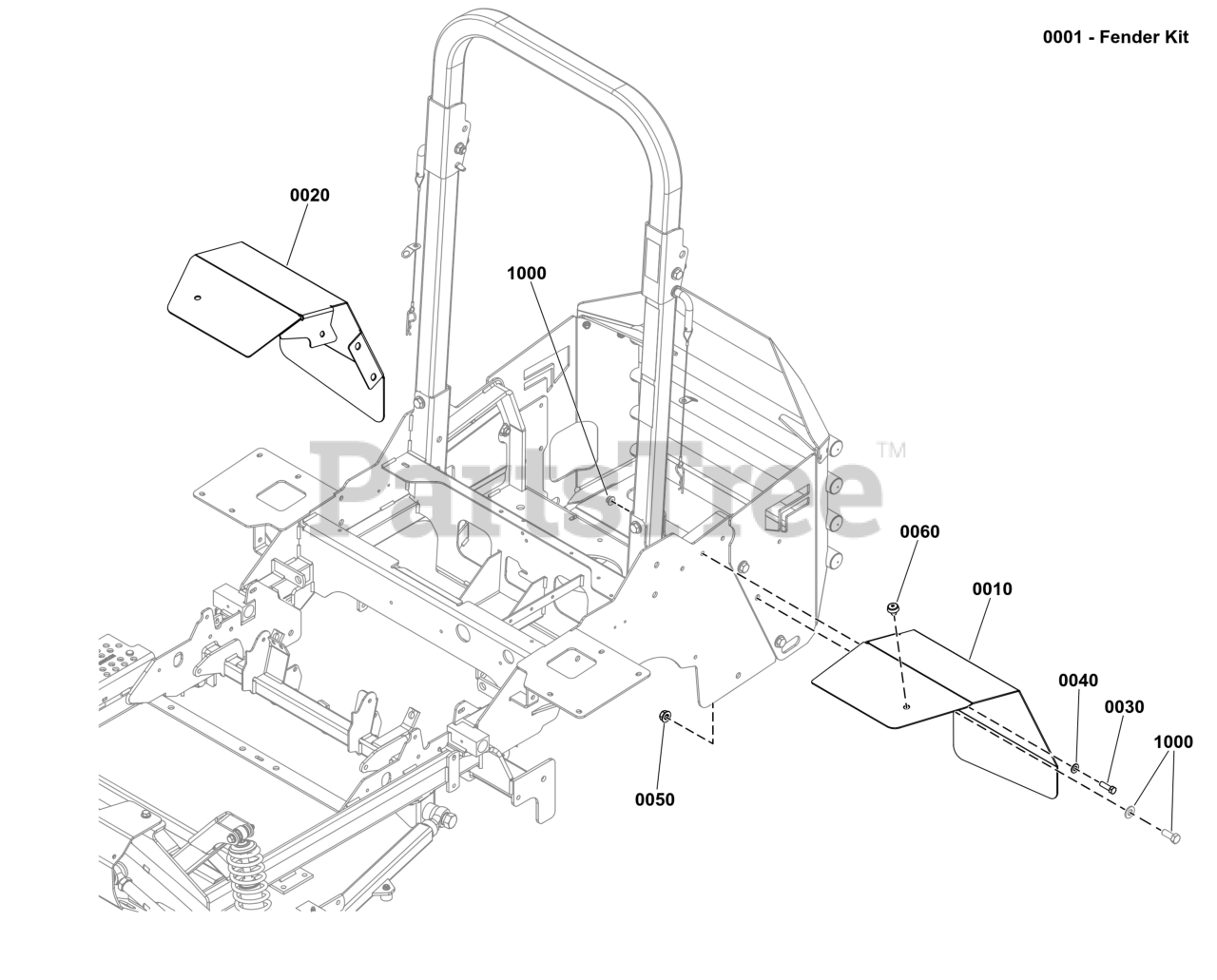

Fender Group Parts Diagram

  • Title
0001

Ferris 5601372

KIT, EU FENDERS, ISX3300CE

Note: (Refer to Note: *)

$308.99

$

Usually ships in 2-12 days

0

0010

WELD, PLATE, FENDER, LH, ISX3300 - RED

$

$

Not available

0020

WELD, PLATE, FENDER, RH, ISX3300 - RED

$

$

Not available

0030

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

0040

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0050

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0060

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

1000

Refer to: Rear Bumper and ROPS Group

$

$

Not available
