ISX 3300 (5902065) - Ferris ISX3300 Series 60" Zero-Turn Mower, 38hp Kawasaki 60" Mower Deck Group - Housing, Covers, Spindles, and Blades Parts Diagram

ISX3300 Series 60" Zero-Turn Mower, 38hp Kawasaki

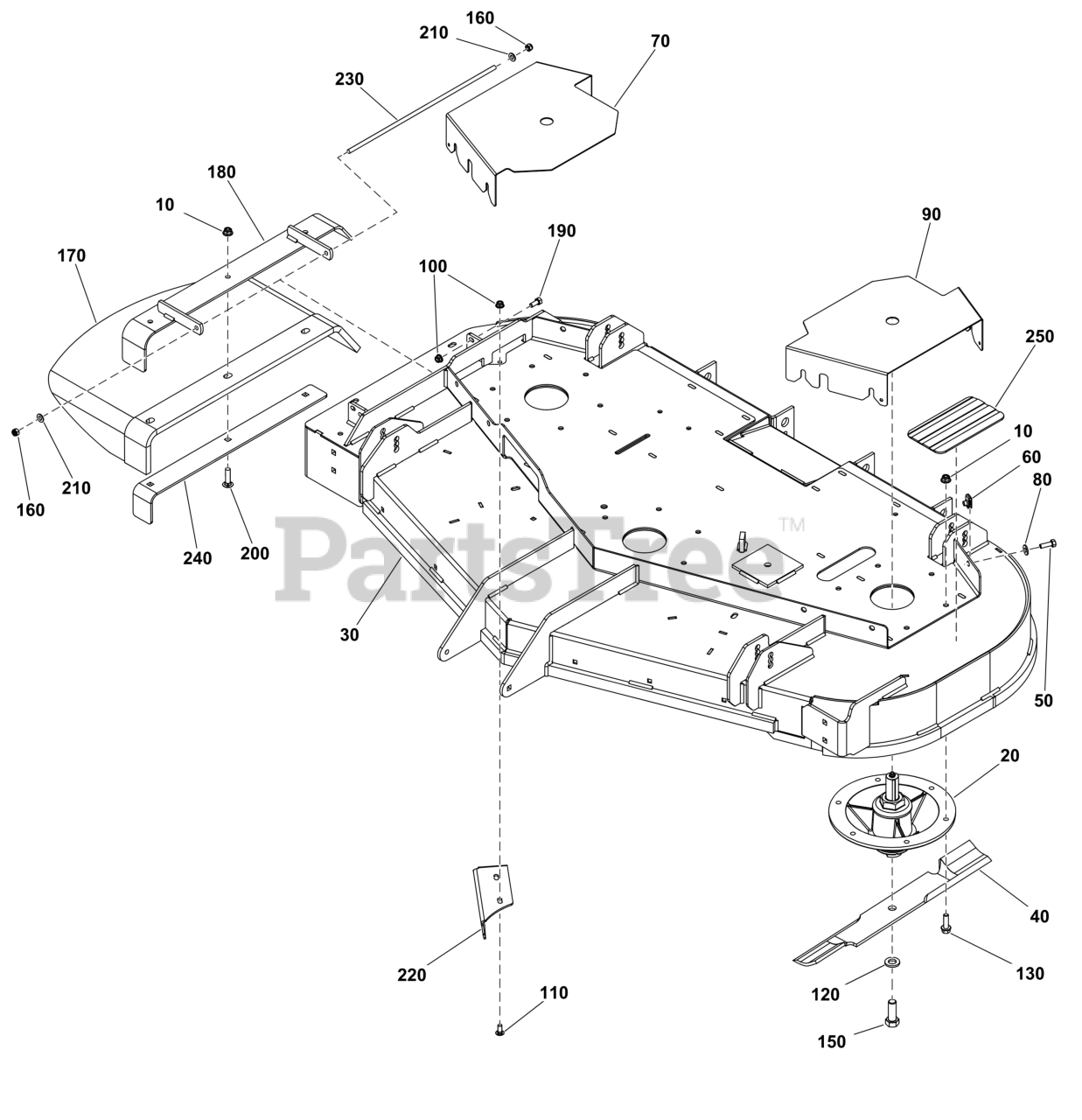

60" Mower Deck Group - Housing, Covers, Spindles, and Blades Parts Diagram

  • Title

10

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

20

Ferris 84003242

SPINDLE ASSEMBLY

$372.99

$

In Stock, only 1 left!

0

30

Ferris 5601460

DECK SHELL W/DECALS, 60" (5423418B)

Note: (Includes safety decals.)

$2791.99

$

Usually ships in 2-12 days

0

40

Ferris 5101755S

BLADE SET, 61 DECK (3)

Note: (Set of 3 blades)

$83.99

$

In Stock, only 4 left!

0

50

Ferris 5025011X8FS

BOLT

$3.99

$

In Stock, Qty 7

0

60

Ferris 5022308SM

BODY CLIP, 5/16-18 X

$5.99

$

In Stock, only 2 left!

0

70

Ferris 84007986

GUARD, RH

$37.99

$

Usually ships in 2-12 days

0

80

Ferris 5025292SM

WASHER, 5/16" GD.9 FL

$4.49

$

In Stock, Qty 11

0

90

Ferris 84007987

GUARD, LH

$37.99

$

In Stock, only 1 left!

0

100

Ferris 5025392FS

NUT
(Superseded to 703115)

$3.49

$

In Stock, Qty 11

0

110

Ferris 5025145X6SM

BOLT, 5/16-18 X 3/4",

$3.99

$

In Stock, Qty 20+

0

120

Ferris 5025477SM

WASHER, 5/8" YZ

$4.49

$

In Stock, Qty 20+

0

130

Ferris 5025390X10FS

BOLT

Note: (Torque spindle mounting bolt to: 25-30 ft-lbs (34-41 Nm))

$2.99

$

Usually ships in 2-12 days

0

150

Ferris 5025320X14FS

BOLT

Note: (Torque blade mounting bolt to: 120-135 ft-lbs (163-183 Nm))

$4.49

$

Usually ships in 2-12 days

0

160

Ferris 5025045SM

NUT, 5/16-24 HEX NYLO

$3.49

$

In Stock, Qty 15

0

170

Ferris 5413499

CHUTE, RUBBER DISCHARGE (5104442)

$160.99

$

Usually ships in 2-12 days

0

180

Ferris 84007973

FRAME, Chute
(Superseded to 84008171)

$92.99

$

Usually ships in 2-12 days

0

190

Ferris 5025011X6SM

BOLT, 5/16-18 X 3/4"

$3.99

$

In Stock, only 2 left!

0

200

Ferris 5025146X12YP

BOLT, 3/8-16 X 1-1/2

$4.49

$

In Stock, only 1 left!

0

210

Ferris 703350

WASHER

$4.49

$

In Stock, only 4 left!

0

220

Ferris 84008169

DEFLECTOR

$24.99

$

In Stock, only 1 left!

0

230

Ferris 5061300FS

ROD
(Superseded to 5061300SM)

$14.99

$

In Stock, only 2 left!

0

240

Ferris 84003245

PLATE, SUPPORT

$29.99

$

In Stock, Qty 5

0

250

Ferris 5101004SM

SAFETY WALK

$9.99

$

In Stock, only 1 left!

0
