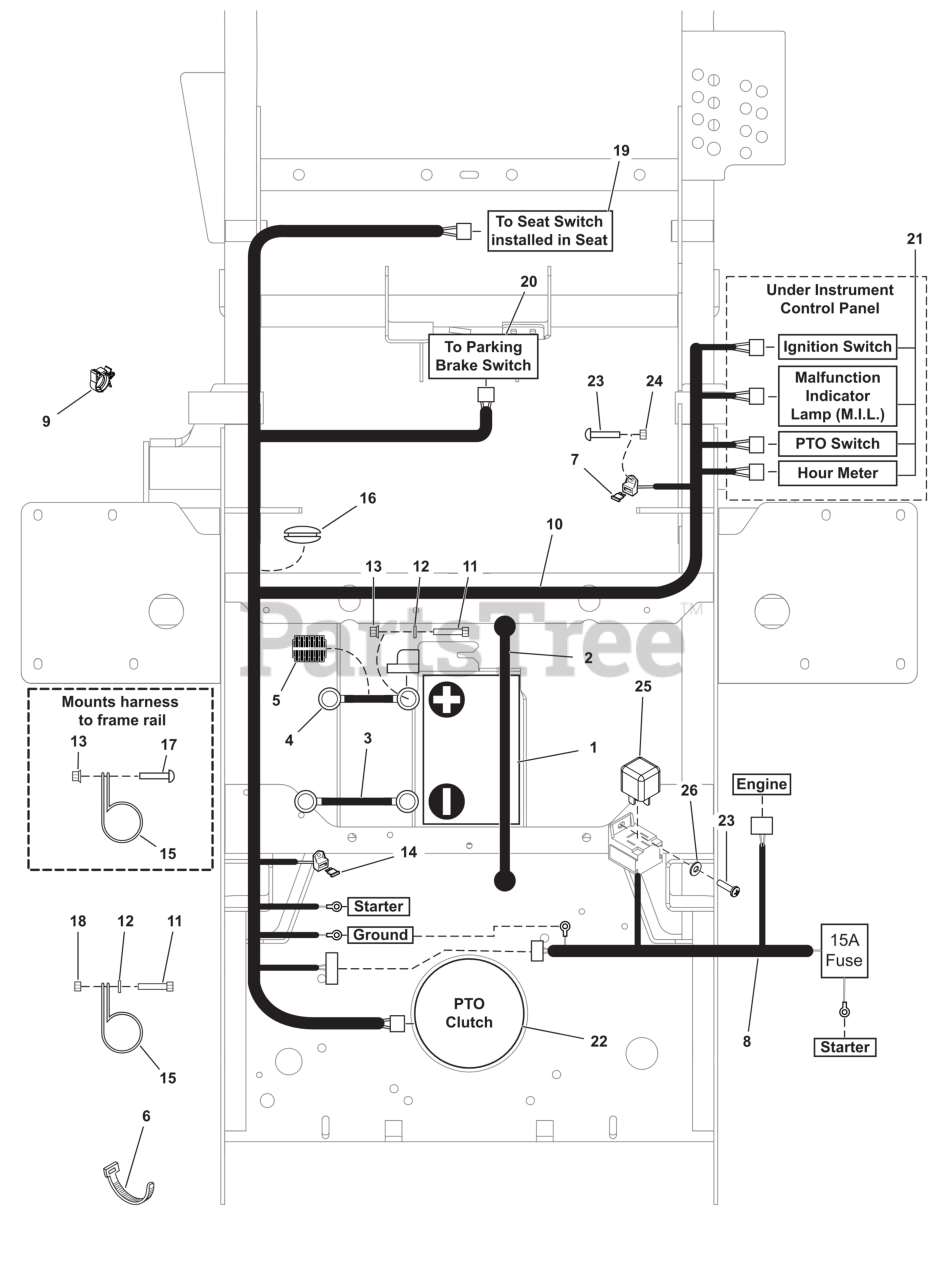

ISX 3300 (5902067) - Ferris ISX3300 Series 60" Zero-Turn Mower, 36hp Briggs & Stratton Electrical Group - Briggs & Stratton Models S/N: 4002180241 and Above Parts Diagram

ISX3300 Series 60" Zero-Turn Mower, 36hp Briggs & Stratton

Electrical Group - Briggs & Stratton Models S/N: 4002180241 and Above Parts Diagram

  • Title

1

BATTERY, 11U1L, 350 CCA

$

$

Not available

2

Ferris 1722009FS

STRAP

$9.99

$

Usually ships in 2-12 days

0

3

Ferris 5021406SM

BATTERY CABLE, NEGATI

$16.99

$

Usually ships in 2-12 days

0

4

Ferris 5021405SM

BATTERY CABLE, POSITI

$18.99

$

Usually ships in 2-12 days

0

5

Ferris 5050927X16YP

WIRE LOOM

$4.99

$

Usually ships in 2-12 days

0

6

Ferris 5021029SM

TIE WRAP, 11" Long

$

$

Not available

7

Ferris 5102710YP

FUSE

Note: (SV)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 84008352

HARNESS, Wiring

$

$

Currently unavailable

9

Ferris 5104705YP

CLIP

$2.49

$

Usually ships in 2-12 days

0

10

Ferris 5105535YP

HARNESS-WIRING

$207.99

$

Usually ships in 2-12 days

0

11

Ferris 5025010X6SM

BOLT, 1/4-20 X 3/4" G

$3.99

$

In Stock, Qty 13

0

12

Ferris 84007033

WASHER

$4.49

$

Usually ships in 2-12 days

0

13

Ferris 5025126FS

NUT

$4.49

$

Usually ships in 2-12 days

0

14

Ferris 5101935YP

FUSE, ATO 15 AMP

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

15

Ferris 5021500FS

CLAMP

$4.49

$

Usually ships in 2-12 days

0

16

Ferris 5102677YP

GROMMET, 1-1/2" ID FOR 1/4" METAL

$7.49

$

Usually ships in 2-12 days

0

17

Ferris 5025299X8YP

CAPSCREW

$4.49

$

Usually ships in 2-12 days

0

18

Ferris 5025391FS

NUT

$3.99

$

Usually ships in 2-12 days

0

19

Refer to: Seat Mount & Floor Group

$

$

Not available

20

Refer to: Parking Brake Group

$

$

Not available

21

Refer to: Instrument Control Panel Group

$

$

Not available

22

Refer to: Engine & PTO Group

$

$

Not available

23

Ferris 5025179X6SM

SCREW - #10-24

$3.99

$

Usually ships in 2-12 days

0

24

Ferris 5025271FS

NUT

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 5021766SM

RELAY, 12V, 40A

$24.99

$

Usually ships in 2-12 days

0

26

Ferris 5023499SM

WASHER, #10 SAE

$3.49

$

Usually ships in 2-12 days

0
