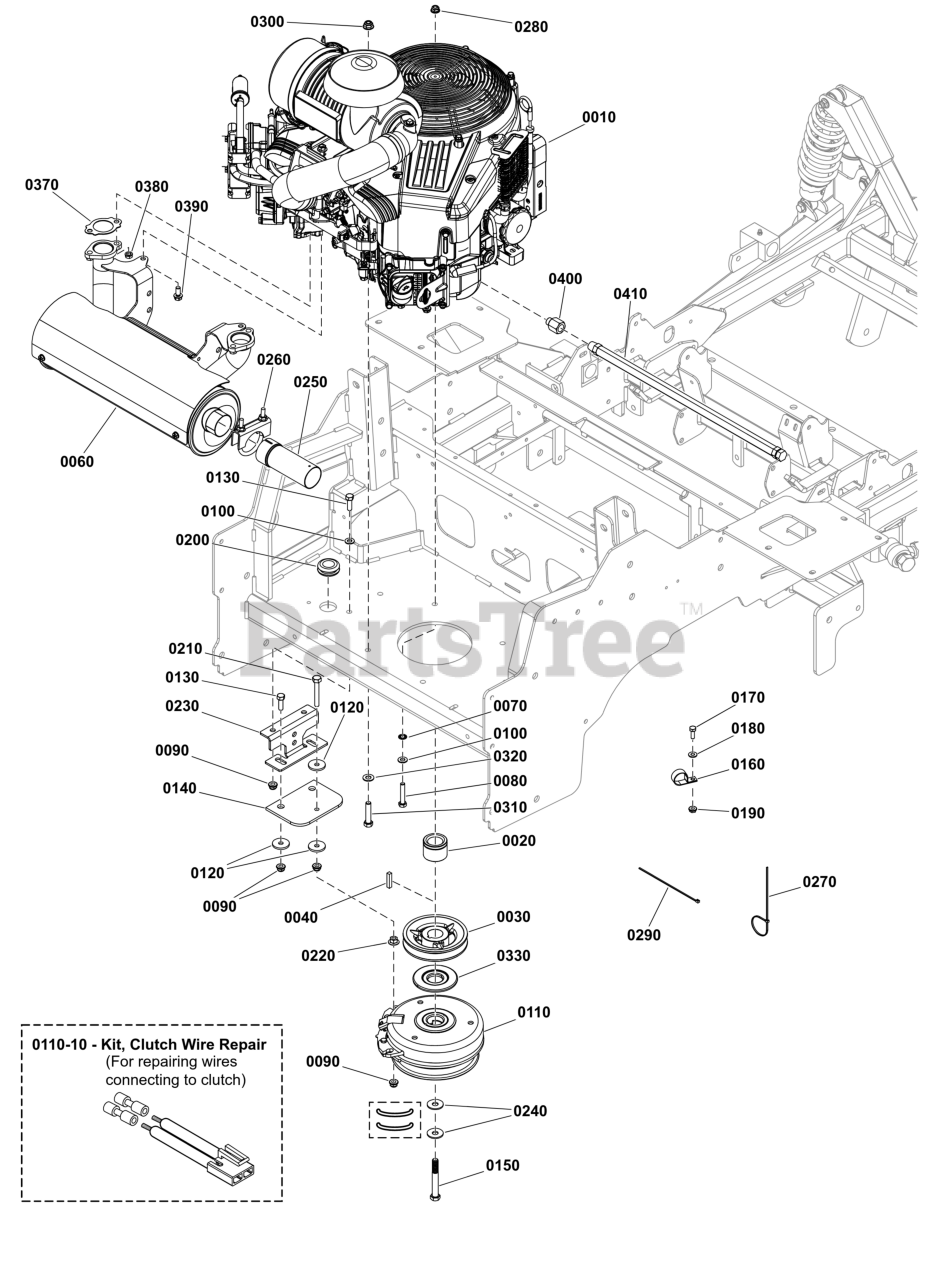

ISX 3300 (5902067) - Ferris ISX3300 Series 60" Zero-Turn Mower, 36hp Briggs & Stratton Engine and PTO Group Parts Diagram

ISX3300 Series 60" Zero-Turn Mower, 36hp Briggs & Stratton

Engine and PTO Group Parts Diagram

  • Title

0010

ENGINE, B&S Carbureted, 613777-0014-J1

Note: (Refer to Note: *)

$

$

Not available

0020

Ferris 5100926

SPACER, 1.13 X 1.75 X 1.35, CZ
(Superseded to 5100926YP)

$27.99

$

In Stock, only 1 left!

0

0030

Ferris 5021682

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48
(Superseded to 5021682YP)

$48.99

$

Usually ships in 2-12 days

0

0040

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

Usually ships in 2-12 days

0

0060

Ferris 843906

MUFFLER (Purchase from Engine Manufacturer)

$

$

Not available

0070

Ferris 5025188

WASHER, 5/16" Internal Tooth Lock
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

0080

Ferris 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8, PHOS
(Superseded to 5025025X14YP)

$4.49

$

Usually ships in 2-12 days

0

0090

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0100

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0110

Ferris 5108850

CLUTCH, 250 FT-LBS, WATER GUARD
(Superseded to 84006412)

$468.99

$

Usually ships in 2-12 days

0

0110-10

Ferris 5600575

KIT, CLUTCH WIRE REPAIR

$66.99

$

Usually ships in 2-12 days

0

0120

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

0130

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

0140

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

0150

Ferris 5103300

BOLT, CRANKSHAFT, 7/16-20 X 3-1/4, GD 8
(Superseded to 5103300YP)

$5.99

$

Usually ships in 2-12 days

0

0160

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

0170

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

0180

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0190

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

0200

Ferris 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

$2.99

$

Usually ships in 2-12 days

0

0210

Ferris 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

0220

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

0230

Ferris 5410367AA

ANCHOR, CLUTCH, IS600-IS700 - BLK
(Superseded to 5410367AYP)

$17.99

$

In Stock, only 1 left!

0

0240

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 2 left!

0

0250

Ferris 5104512

TAIL PIPE EXTENTION, 1.78"ID X 5" LG
(Superseded to 5104512FS)

$27.99

$

Usually ships in 2-12 days

0

0260

Ferris 5104512X1

CLAMP, TAILPIPE, 1-7/8"
(Superseded to 84003195)

$11.99

$

Usually ships in 2-12 days

0

0270

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

$3.49

$

Usually ships in 2-12 days

0

0280

Ferris 5025616

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS
(Superseded to 5025616YP)

$3.99

$

Usually ships in 2-12 days

0

0290

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

0300

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 17

0

0310

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, Qty 5

0

0320

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0330

Ferris 5108851

WATER GUARD, WARNER C 250 FT-LBS CLUTCH
(Superseded to 84006413)

$13.99

$

Usually ships in 2-12 days

0

0370

Ferris 807208

Gasket-Exhaust

$

$

Not available

0380

Ferris 806364

NUT

$

$

Currently unavailable

0390

Ferris 805247

SCREW
(Superseded to 692062)

$3.49

$

In Stock, only 3 left!

0

0400

Ferris 5100366

METRIC ADAPTER, M14-1.5" TO 3/8 NPTF
(Superseded to 5100366SM)

$13.99

$

Usually ships in 2-12 days

0

0410

Ferris 5102781

HOSE, OIL DRAIN
(Superseded to 5102781FS)

$28.99

$

Usually ships in 2-12 days
