ISX 800 (5902020) - Ferris ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton Electrical Group Parts Diagram

ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton

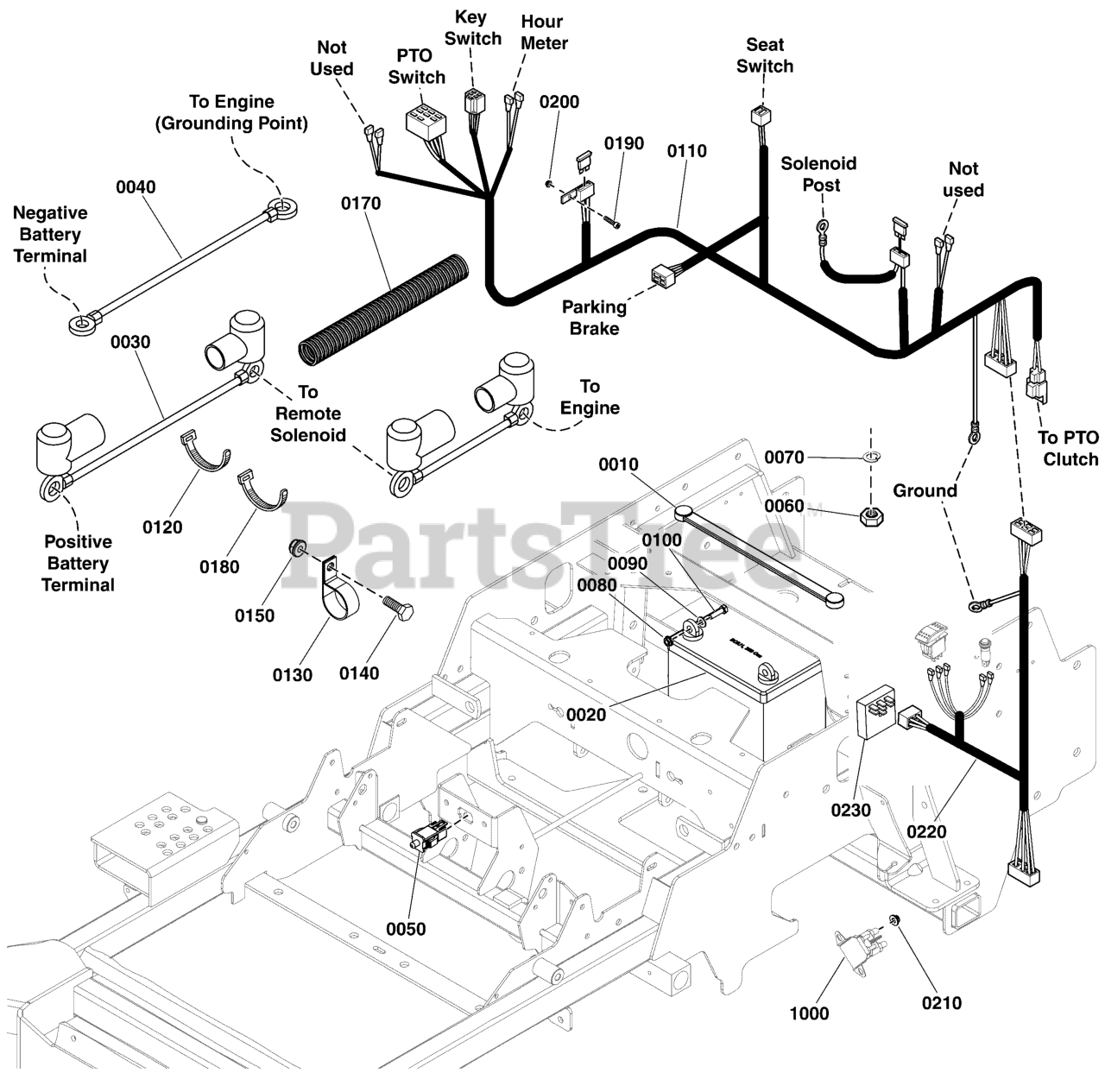

Electrical Group Parts Diagram

  • Title

0010

Ferris 1722009

STRAP, BATTERY, 14 LONG, Rubber
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

0020

BATTERY, 11U1L, 350 CCA

Note: (Refer to Note: *)

$

$

Not available

0030

Ferris 5021405

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5021405SM)

$19.99

$

Usually ships in 2-12 days

0

0040

Ferris 5047690

BATTERY CABLE, NEG, 14, 5/16-13/32
(Superseded to 5047690SM)

$17.99

$

Usually ships in 2-12 days

0

0050

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$15.99

$

In Stock, Qty 20+

0

0060

Ferris 5025033

NUT, Hex, 5/16-24
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

0070

Ferris 5023217

WASHER, Light Lock, 5/16
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0

0080

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

0090

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0100

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0110

Ferris 5107433

HARNESS, SMALL ZTR WIRING, MIL READY
(Superseded to 5107433FS)

$192.99

$

Usually ships in 2-12 days

0

0120

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

0130

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

0140

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

0150

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 7

0

0170

Ferris 5050927X18

WIRE LOOM, 3/8 ID X 18 IN

$

$

Currently unavailable

0180

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 2 left!

0

0190

Ferris 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$7.49

$

Usually ships in 2-12 days

0

0200

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

0210

Ferris 80003921

NUT,1/4-20,KEPS,CONICAL WSHR,ZC/CL
(Superseded to 703061)

$3.99

$

In Stock, Qty 11

0

0220

Ferris 5108058

HARNESS, JUMPER, BRIGGS EFI, 16 PIN

$

$

Currently unavailable

0230

Ferris 5102075

MODULE, THROTTLE CONTROL, KAV DFI

$

$

Not available

1000

Refer to: Engine & PTO Group

$

$

Not available
