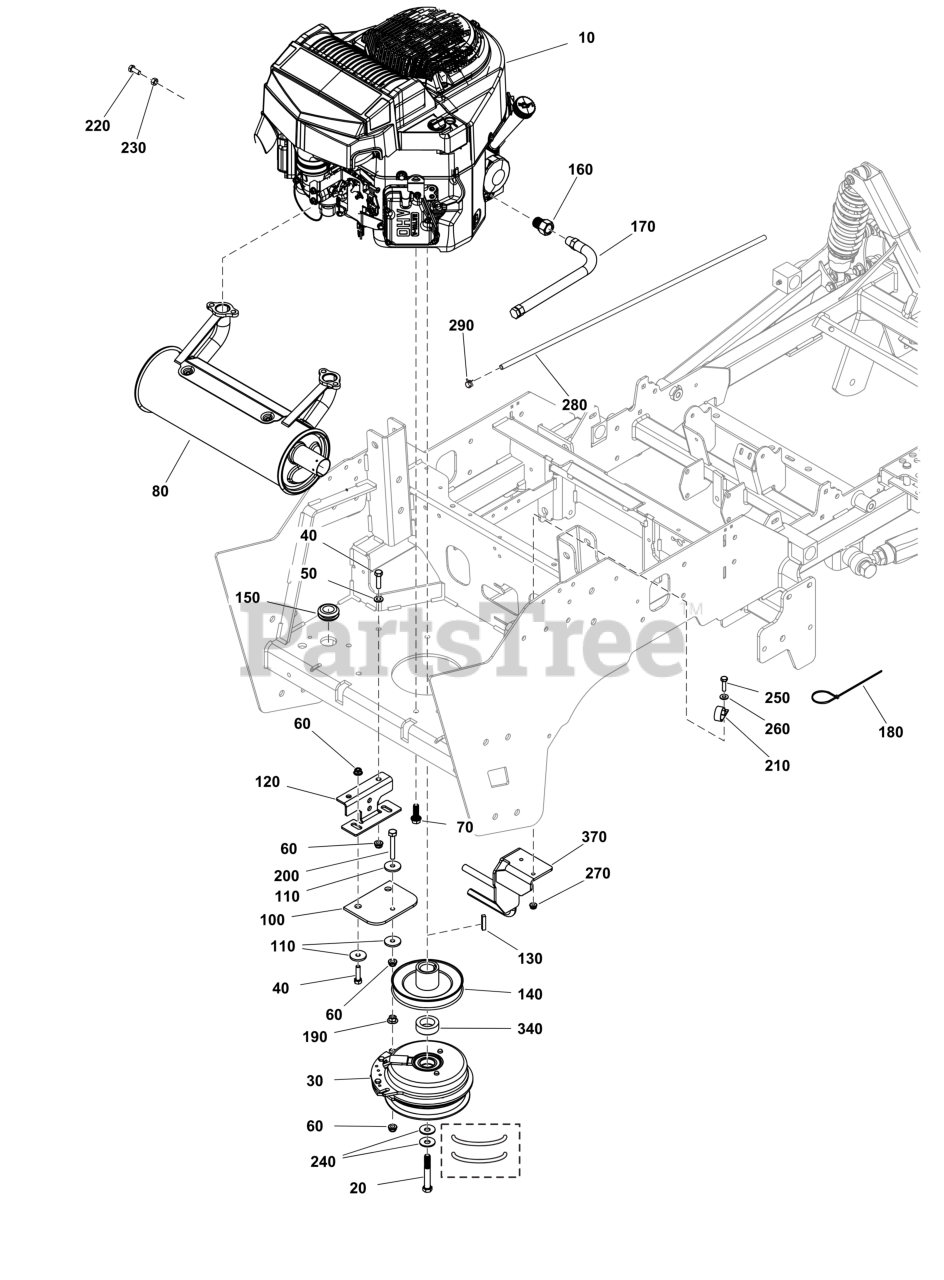

ISX 800 (5902073) - Ferris ISX800 Series 60" Zero-Turn Mower, 24hp Kawasaki Engine and PTO Group Parts Diagram

ISX800 Series 60" Zero-Turn Mower, 24hp Kawasaki

Engine and PTO Group Parts Diagram

  • Title

10

ENGINE, KAWASAKI, FT730V -AS00-S

Note: (See engine manufacturer for engine service parts.)

$

$

Not available

20

Ferris 5102866YP

BOLT, CRANKSHAFT, 7/1

Note: (Torque clutch mounting bolt to 65 ft-lbs (88 Nm); Apply Loctite 271 to threads of crankshaft bolt when assembling.)

$5.49

$

In Stock, only 2 left!

0

30

Ferris 5105090YP

CLUTCH

$483.99

$

In Stock, Qty 8

0

40

Ferris 5025011X8FS

BOLT

$3.99

$

In Stock, Qty 20+

0

50

Ferris 703350

WASHER

$4.49

$

In Stock, Qty 20+

0

60

Ferris 5025392FS

NUT
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

70

Ferris 84003591

BOLT, FLANGE

Note: (Torque engine mounting bolt to 50 ft-lbs (68 Nm))

$3.49

$

In Stock, Qty 15

0

80

Ferris 5104326YP

MUFFLER

$212.99

$

Usually ships in 2-12 days

0

100

Ferris 5043636SM

CLUTCH ANCHOR PAD

$11.99

$

In Stock, Qty 19

0

110

Ferris 5044617SM

WASHER, .34 X 1.25 X

$8.49

$

In Stock, only 2 left!

0

120

Ferris 5410367AYP

ANCHOR, CLUTCH

$17.99

$

In Stock, only 1 left!

0

130

Ferris 5050407X10YP

KEY, 1/4 SQ X 1-1/4

$4.49

$

In Stock, Qty 20+

0

140

Ferris 84008127

PULLEY, Crankshaft

$62.99

$

Usually ships in 2-12 days

0

150

Ferris 5021379SM

GROMMET, 7/8

$6.99

$

Usually ships in 2-12 days

0

160

Ferris 5022234SM

ADAPTER, OIL DRAIN

$16.99

$

In Stock, only 2 left!

0

170

Ferris 5048681SM

HOSE, OIL DRAIN

$20.99

$

In Stock, Qty 9

0

180

Ferris 5101492YP

TIE,SELF-LOCKING, 24"

$3.49

$

Usually ships in 2-12 days

0

190

Ferris 5025139SM

NUT, 5/16-18 HEX SERR

$3.49

$

In Stock, only 3 left!

0

200

Ferris 5025055X18YP

BOLT, 5/16-18 X 2-1/4

$4.49

$

In Stock, only 2 left!

0

210

Ferris 5021500FS

CLAMP

$4.49

$

In Stock, only 2 left!

0

220

Ferris 703988

CAPSCREW M8-1.25X16

Note: (Secures ground wire to engine.)

$3.49

$

Usually ships in 2-12 days

0

230

Ferris 5025536YP

NUT, HEX, M8-1.25

$3.49

$

Usually ships in 2-12 days

0

240

Ferris 5025585YP

BELLEVILLE WASHER

$4.49

$

In Stock, only 2 left!

0

250

Ferris 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

In Stock, Qty 20+

0

260

Ferris 84007033

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 18

0

270

Ferris 5025391FS

NUT

$4.49

$

In Stock, Qty 20+

0

280

Ferris 5050831X8YP

HOSE, 1/4" FUEL, 8.00

$6.49

$

Usually ships in 2-12 days

0

290

Ferris 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 16

0

310

Ferris 5101641YP

SCREEN, SPARK ARRESTE

$89.99

$

Usually ships in 2-12 days

0

340

Ferris 84008137

SPACER

$

$

Currently unavailable

370

Ferris 5415993AYP

GUIDE, Belt

$60.99

$

Usually ships in 2-12 days

0
