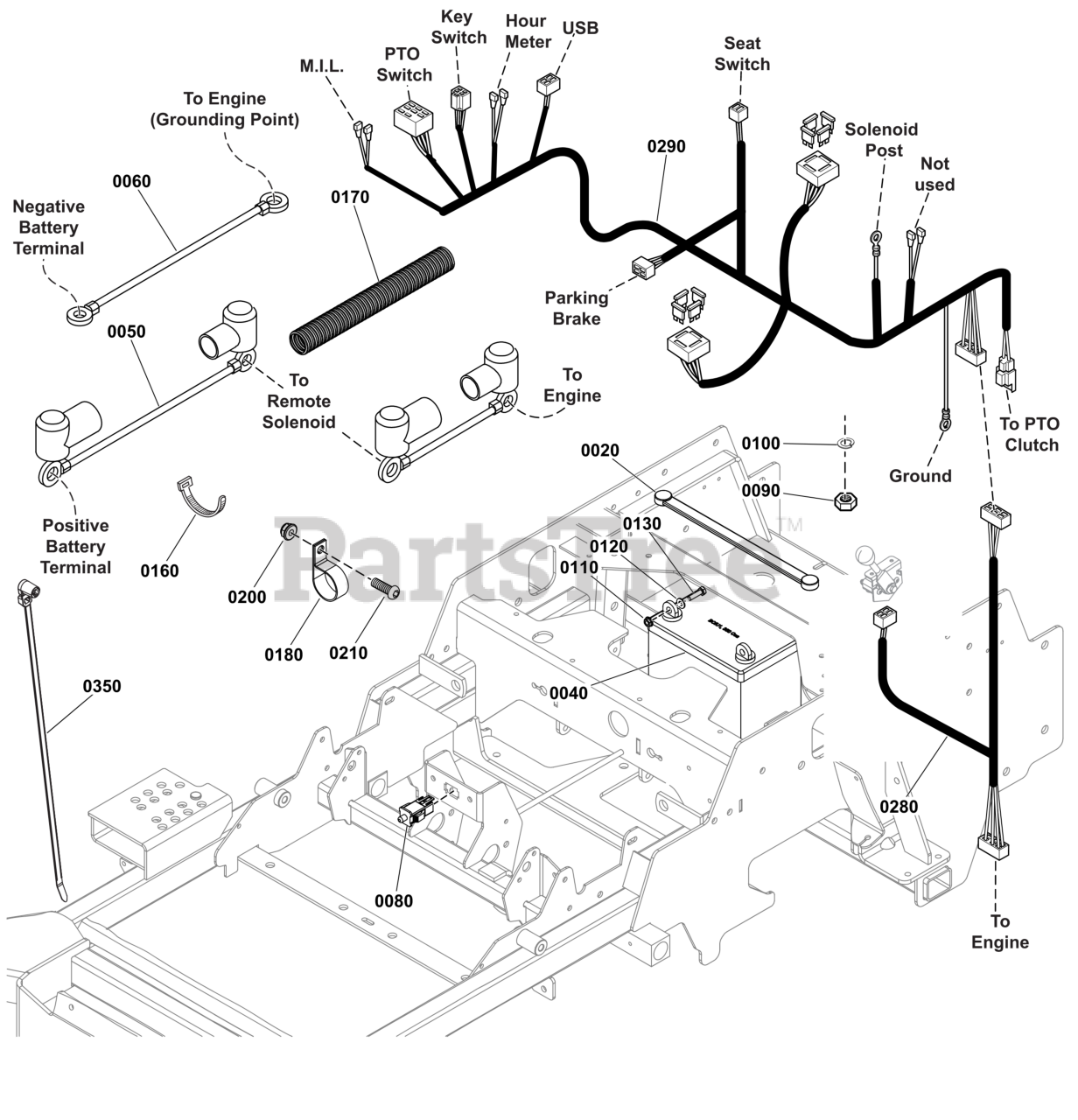

ISX 800 (5902074) - Ferris ISX800 Series 60" Zero-Turn Mower, 26hp Kawasaki Electrical Group S/N: 4002328397 and above Parts Diagram

ISX800 Series 60" Zero-Turn Mower, 26hp Kawasaki

Electrical Group S/N: 4002328397 and above Parts Diagram

  • Title

0020

Ferris 1722009FS

STRAP
(Superseded to 1722009SM)

$10.99

$

In Stock, only 3 left!

0

0040

BATTERY, 11U1L, 350 CCA

$

$

Not available

0050

Ferris 5021405SM

BATTERY CABLE, POSITI

$18.99

$

Usually ships in 2-12 days

0

0060

Ferris 5047690SM

BATTERY CABLE

$16.99

$

Usually ships in 2-12 days

0

0080

Ferris 7022886YP

SWITCH, DP NO/NC SNAP

$14.99

$

In Stock, Qty 20+

0

0090

Ferris 5023216SM

NUT, 5/16-24 JAM

$2.99

$

Usually ships in 2-12 days

0

0100

Ferris 5023217SM

WASHER, 5/16 LIGHT LO

$3.49

$

Usually ships in 2-12 days

0

0110

Ferris 5025126FS

NUT

$4.49

$

Usually ships in 2-12 days

0

0120

Ferris 84007033

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0130

Ferris 5025010X6SM

BOLT, 1/4-20 X 3/4" G

$3.99

$

In Stock, Qty 20+

0

0160

Ferris 5021029SM

TIE, Cable 11" Long

$

$

Not available

0170

Ferris 5050927X18

WIRE LOOM, 3/8 ID X 18 IN

$

$

Currently unavailable

0180

Ferris 5021500FS

CLAMP

$4.49

$

Usually ships in 2-12 days

0

0200

Ferris 5025391FS

NUT

$3.99

$

In Stock, Qty 7

0

0210

Ferris 5025299X8YP

CAPSCREW

$4.49

$

Usually ships in 2-12 days

0

0280

Ferris 84011447

HARNESS, Wiring, ETC Lever

$

$

Currently unavailable

0290

Ferris 84011123

HARNESS, Wiring

$

$

Currently unavailable

0350

Ferris 84011125

CABLE, Tie (Sold as a bag of 5)

$

$

Currently unavailable
