ISX 800 (5902086) - Ferris ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton 52" Mower Deck Group - Housing, Covers, Spindles, and Blades Parts Diagram

ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton

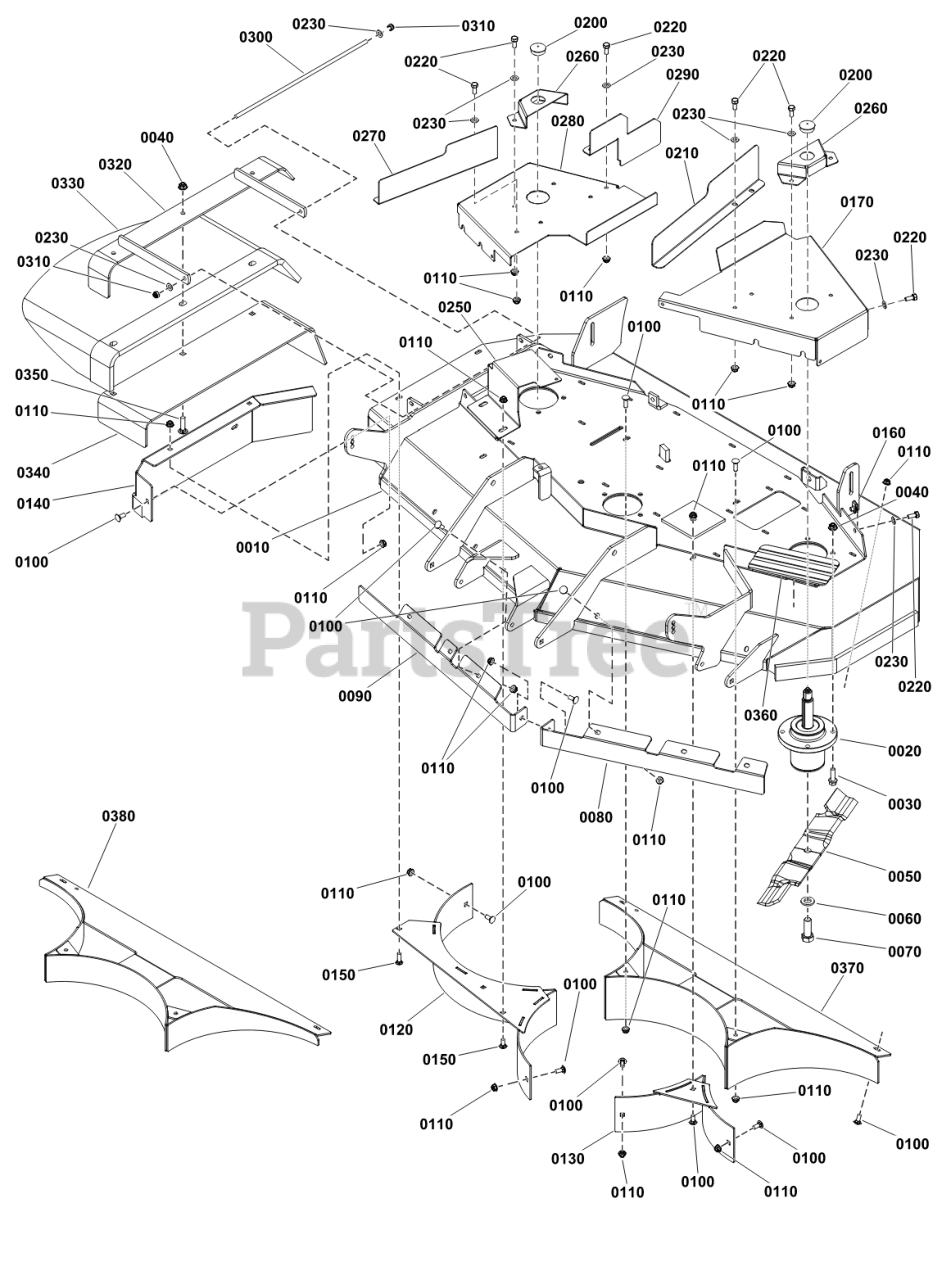

52" Mower Deck Group - Housing, Covers, Spindles, and Blades Parts Diagram

  • Title

0010

Ferris 5601521

DECK SHELL W/DECALS, 800-52 SRDCE

Note: (Includes safety decals)

$

$

Currently unavailable

0020

Ferris 5061096SM

ASSM, SPINDLE, LONG S

$257.99

$

In Stock, only 2 left!

0

0030

Ferris 5025390X10FS

BOLT

$2.99

$

Usually ships in 2-12 days

0

0040

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0050

Ferris 5103304S

BLADE SET, MULCH, 52 DECK (SET OF 3)

Note: (Set of 3 blades)

$87.99

$

Usually ships in 2-12 days

0

0060

Ferris 5025477SM

WASHER, 5/8" YZ

$4.49

$

In Stock, Qty 20+

0

0070

Ferris 770136

BOLT
(Superseded to 5025320X14FS)

$4.49

$

Usually ships in 2-12 days

0

0080

Ferris 5414591BFS

BAFFLE, DISCHARGE

$30.99

$

Usually ships in 2-12 days

0

0090

Ferris 5419176BFS

BAFFLE

$39.99

$

Usually ships in 2-12 days

0

0100

Ferris 5025145X6SM

BOLT, 5/16-18 X 3/4",

$3.99

$

In Stock, Qty 20+

0

0110

Ferris 5025392FS

NUT
(Superseded to 703115)

$3.49

$

In Stock, Qty 11

0

0120

Ferris 84008519

BAFFLE, Front Discharge Side

$

$

Currently unavailable

0130

Ferris 84008520

BAFFLE, Front Trim Side

$

$

Currently unavailable

0140

Ferris 84008521

PLATE, Blockoff

$

$

Currently unavailable

0150

Ferris 5025145X8SM

BOLT, 5/16-18 X 1", C

$3.99

$

In Stock, Qty 9

0

0160

Ferris 5022308SM

BODY CLIP, 5/16-18 X

$5.99

$

In Stock, only 3 left!

0

0170

Ferris 5416421BFS

GUARD, Pulley

$56.99

$

Usually ships in 2-12 days

0

0200

Ferris 5023484SM

PLUG, PANEL, 1.25 - B

$4.49

$

In Stock, Qty 13

0

0210

Ferris 5414956BFS

PLATE

$17.99

$

Usually ships in 2-12 days

0

0220

Ferris 5025011X6SM

BOLT, 5/16-18 X 3/4"

$3.99

$

In Stock, only 2 left!

0

0230

Ferris 703350

WASHER

$4.49

$

In Stock, only 4 left!

0

0250

Ferris 5416407BFS

GUARD

$22.99

$

Usually ships in 2-12 days

0

0260

Ferris 5416400BFS

GUARD

$23.99

$

Usually ships in 2-12 days

0

0270

Ferris 84008522

PLATE

$

$

Currently unavailable

0280

Ferris 84008523

GUARD, Pulley, Right

$

$

Currently unavailable

0290

Ferris 5414959BFS

PLATE

$13.99

$

Usually ships in 2-12 days

0

0300

Ferris 5061300FS

ROD
(Superseded to 5061300SM)

$14.99

$

In Stock, only 2 left!

0

0310

Ferris 5025045SM

NUT, 5/16-24 HEX NYLO

$3.49

$

In Stock, Qty 15

0

0320

Ferris 84008047

FRAME, Chute

$91.99

$

Usually ships in 2-12 days

0

0330

Ferris 5413499

CHUTE, RUBBER DISCHARGE (5104442)

$160.99

$

Usually ships in 2-12 days

0

0340

Ferris 84008077

PLATE, Support

$129.99

$

Usually ships in 2-12 days

0

0350

Ferris 5025146X12YP

BOLT, 3/8-16 X 1-1/2

$4.49

$

In Stock, only 3 left!

0

0360

Ferris 5101004SM

SAFETY WALK

$9.99

$

In Stock, only 1 left!

0

0370

Ferris 84008524

BAFFLE, Rear

$235.99

$

Usually ships in 2-12 days

0

0380

Ferris 84008525

BAFFLE, Rear

$

$

Currently unavailable
