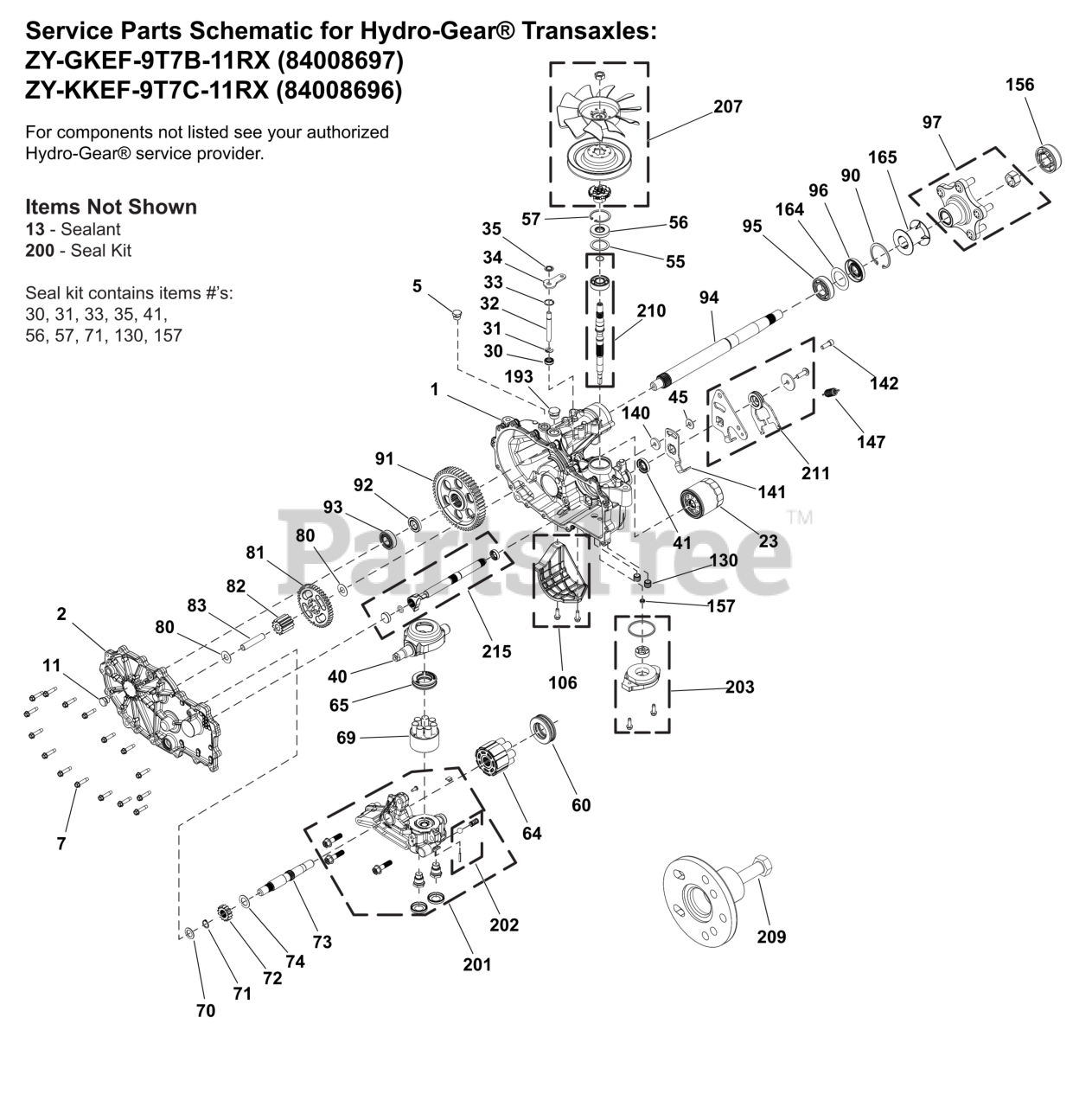

ISX 800 (5902155) - Ferris ISX800 Series 52" Zero-Turn Mower, 24hp Kawasaki Transaxle Service Parts - 84008697 & 84008696 Parts Diagram

ISX800 Series 52" Zero-Turn Mower, 24hp Kawasaki

Transaxle Service Parts - 84008697 & 84008696 Parts Diagram

  • Title

84008697

Ferris 84008697

TRANSAXLE (ZT-3400, RH, ZY-GKEF-9T7B-11RX)

$

$

Currently unavailable

84008696

Ferris 84008696

TRANSAXLE (ZT-3400, LH, ZY-KKEF-9T7C-11RX)

$

$

Currently unavailable

1

KIT, MAIN HOUSING LH, CHARGE, CONTROL

$

$

Not available

2

Ferris HG73257

KIT, COVER, SIDE LH

$

$

Currently unavailable

5

PLUG EXTERNAL HEX VENT 9/16-18

$

$

Not available

7

SCREW, HEX WASHER

$

$

Not available

11

PLUG EXTERNAL HEX VENT 9/16-18

$

$

Not available

13

TUBE, SEALANT

$

$

Not available

23

Ferris 5101026X1SM

FILTER, OIL,

$

$

Currently unavailable

30

SEAL, LIP .375 X .75 X .25

$

$

Not available

31

BYPASS RETAINING RING 1

$

$

Not available

32

ROD, BYPASS .375 X 2.88

$

$

Not available

33

BYPASS RETAINING RING 2

$

$

Not available

34

ARM, BYPASS

$

$

Not available

35

RING, RETAINING .375 EXTERNAL

$

$

Not available

40

SWASHPLATE, TRUNNION

$

$

Not available

41

Ferris 5101026X2SM

SEAL, LIP

$16.99

$

In Stock, only 3 left!

0

45

WASHER, .34X.88X.06

$

$

Not available

55

Ferris 1730272

SPACER (50951)

$

$

Not available

56

SEAL, LIP 17 40 7 HNBR

$

$

Not available

57

Ferris 5023415

Spacer
(Superseded to 5023415SM)

$9.99

$

Usually ships in 2-12 days

0

60

BEARING, THRUST 35 x 62 x 18

$

$

Not available

64

KIT, 16cc CYLINDER BLOCK ASSEMBLY STEAM TREAT

$

$

Not available

65

BEARING, THRUST PLASTIC CAGE

$

$

Not available

69

KIT, CYLINDER BLOCK (12cc)

$

$

Not available

70

WASHER, .63 X 1.00 X .05 FLAT

$

$

Not available

71

Ferris 1706130

RING-SNAP (44145)

$

$

Not available

72

GEAR, 14T (STEEL)

$

$

Not available

73

SHAFT, MOTOR

$

$

Not available

74

WASHER, .71 X 1.16 X .04 FLAT

$

$

Not available

80

WASHER, .51 X 1.00 X .03 FLAT

$

$

Not available

81

GEAR, 45T

$

$

Not available

82

GEAR, 11T (STEEL)

$

$

Not available

83

PIN, JACKSHAFT

$

$

Not available

90

RING, RETAINING 2.25 INTERNAL

$

$

Not available

91

GEAR, 54T FORGED

$

$

Not available

92

SPACER, .750 X 1.320 X .257

$

$

Not available

93

Ferris 84009678

KIT, BEARING

$

$

Currently unavailable

94

Ferris HG56052

SHAFT, AXLE

$

$

Currently unavailable

95

Ferris 5101026X5SM

BEARING, BALL, 1.0 X 52 X 15 OPEN 6205M

$36.99

$

Usually ships in 2-12 days

0

96

Ferris 5103589X1YP

KIT, SEAL, LIP -

$

$

Currently unavailable

97

Ferris 84003138

HUB

$

$

Currently unavailable

106

KIT, FILTER GUARD

$

$

Not available

130

TUBE, CHARGE TRIPLE O-RING

$

$

Not available

140

SPACER, .320X1.005X.179

$

$

Not available

141

ARM, NEUTRAL, LH

$

$

Not available

142

SHCS, 5/16-24 X .875 (PATCH)

$

$

Not available

147

Ferris 1735483SM

SPRING, Extension

$17.99

$

In Stock, only 2 left!

0

156

Ferris 5103589X7YP

AXLE CAP,

$

$

Currently unavailable

157

KIT, GEROTOR SEAL

$

$

Not available

164

WASHER, 1.355 x 2.035 x .021 FLAT

$

$

Not available

165

Ferris 5103589X9YP

DEBRIS GUARD HG #53496

$

$

Currently unavailable

193

PLUG, 3/4-16

$

$

Not available

200

Ferris 5103589X2YP

KIT, SEAL -

$

$

Currently unavailable

201

Ferris HG73301

KIT, CENTER SECTION, LH CHARGE

$

$

Currently unavailable

202

KIT, CHARGE RELIEF

$

$

Not available

203

Ferris HG71977

KIT, CHARGE PUMP

$

$

Currently unavailable

207

Ferris 5103589X3YP

KIT, FAN & PULLEY -

$

$

Currently unavailable

209

KIT, HUB PULLER

$

$

Not available

210

Ferris 5101026X9SM

KIT, INPUT SHAFT

$362.99

$

Usually ships in 2-12 days

0

211

Ferris 1735490SM

ARM, Control Kit L.H.

$

$

Currently unavailable

215

KIT, OUTBOARD, RH ROT B / LH ROT A

$

$

Not available

1000

Ferris 84009787

KIT, TRANSAXLE SERVICE PARTS

Note: (Includes 10 Qts oil, 2 oil filters, 2 fittings, 2 vent hoses, 2 vent hose plugs, and 2 hose clamps.)

$

$

Currently unavailable
