iZ 21 C (968999306) - Husqvarna Zero-Turn Mower (2009-09) Hydraulic Pump - motor Parts Diagram

Zero-Turn Mower

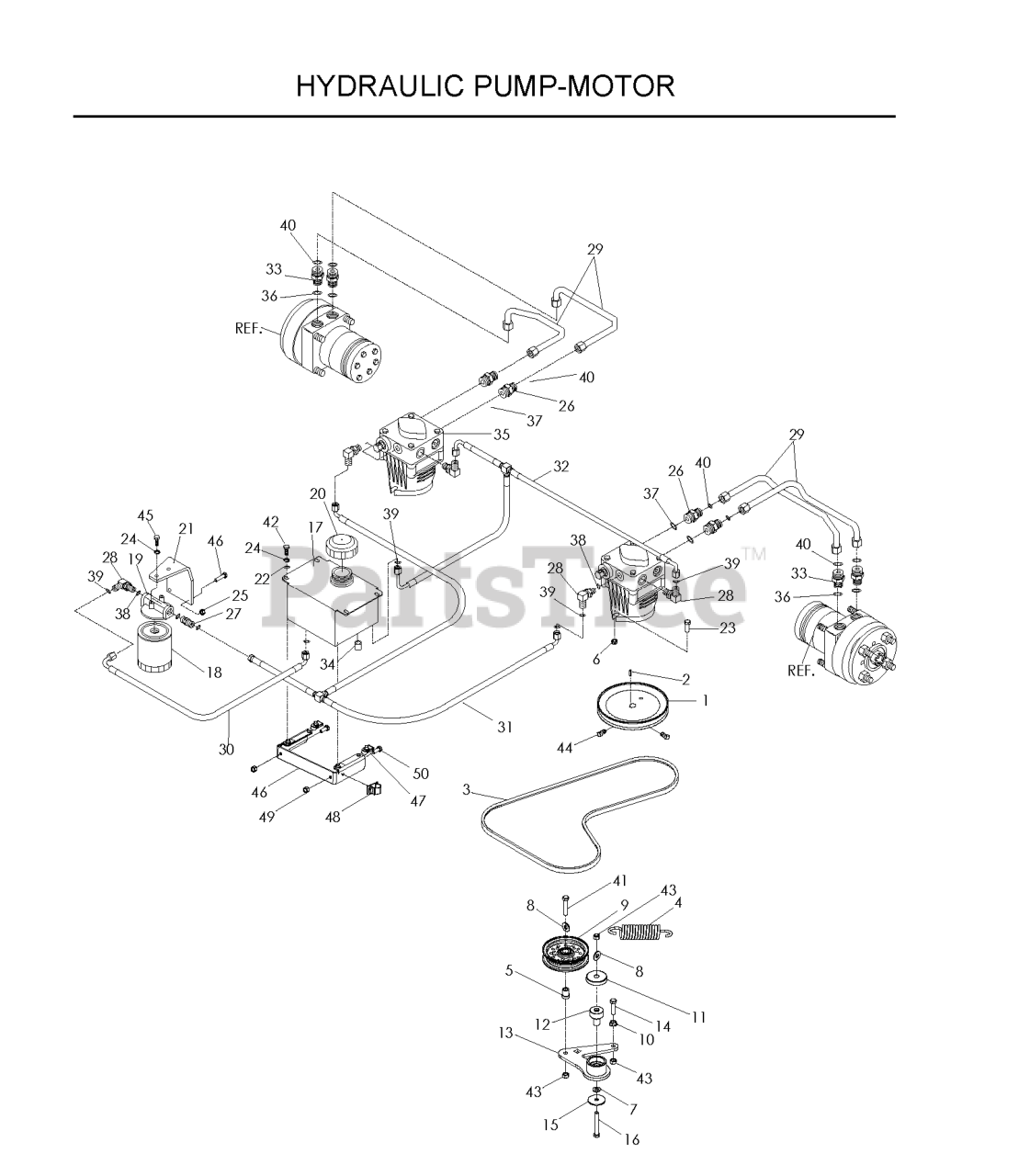

Hydraulic Pump - motor Parts Diagram

  • Title

3

Husqvarna 539106887

PUMP BELT
(Superseded to 510201401)

$

$

Not available

48

Husqvarna 539110815

PUSH-MOUNT WIRE CLIP

$3.49

$

In Stock, only 1 left!

0

20

Husqvarna 539101202

HYDRAULIC CAP

$24.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

In Stock, only 4 left!

0

30

Husqvarna 539104722

HOSE 7"

$

$

Not available

38

Husqvarna 539103117

O RING

$

$

Not available

47

Husqvarna 539110813

1/4C - U TYPE RETAINER

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539110655

SPRING

$14.99

$

In Stock, only 1 left!

0

34

Husqvarna 539105168

NUT 9/16-18 JIC CAP

$3.99

$

In Stock, only 4 left!

0

44

Husqvarna 539102717

SCREW 5/16C X 5/8 SQ HEAD

$3.99

$

In Stock, Qty 6

0

32

Husqvarna 539110837

T ASM

$

$

Not available

18

Husqvarna 539102606

HYDRAULIC OIL FILTER

$44.99

$

In Stock, Qty 11

0

28

Husqvarna 539101238

ELBOW, F6801-6-6-0 90 DEGREE

$15.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539110814

TANK MOUNT

$18.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539976695

BUSHING, IDLER FLANGE

$

$

Not available

33

Husqvarna 539102396

FITTING

$

$

Not available

10

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539130392

ARM, IDLER - W/BEARINGS

$48.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539101177

KEY 5 MM SQ X 25 MM

$8.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

1

Husqvarna 539101176

PULLEY

$

$

Not available

25

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539103118

O RING

$

$

Not available

45

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 3 left!

0

50

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539105024

OIL TANK

$303.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 12

0

6

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

21

Husqvarna 539106933

OIL FILTER BRKT

$27.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

43

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539130205

PIVOT, BEARING

$4.99

$

In Stock, Qty 5

0

27

Husqvarna 539113782

HYDRAULIC FITTING

$7.49

$

In Stock, only 3 left!

0

35

Husqvarna 539132144

HG_PUMP, 10CC W/O FAN

$

$

Not available

36

Husqvarna 539103115

O RING

$

$

Not available

15

Husqvarna 539111897

WASHER, 3/8 SPEC

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

19

Husqvarna 539101165

FILTER HEAD

$46.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539101237

FITTING, STRAIGHT F6400-8-8-0

$12.99

$

In Stock, only 3 left!

0

40

Husqvarna 539103119

O RING

$4.99

$

In Stock, only 3 left!

0

11

Husqvarna 539114662

SHIELD, DUST

$

$

Not available

37

Husqvarna 539103116

O RING

$

$

Not available

16

Husqvarna 539106492

HEX SCREW 3/8-20 X 2.75

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539106896

HYDRAULIC HOSE

$

$

Not available

31

Husqvarna 539111814

T-ASSEMBLY

$

$

Not available

7

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0
