iZ 25 (968999672) - Husqvarna Zero-Turn Mower (2007-09) Hydraulic Pump - Motor Parts Diagram

Zero-Turn Mower

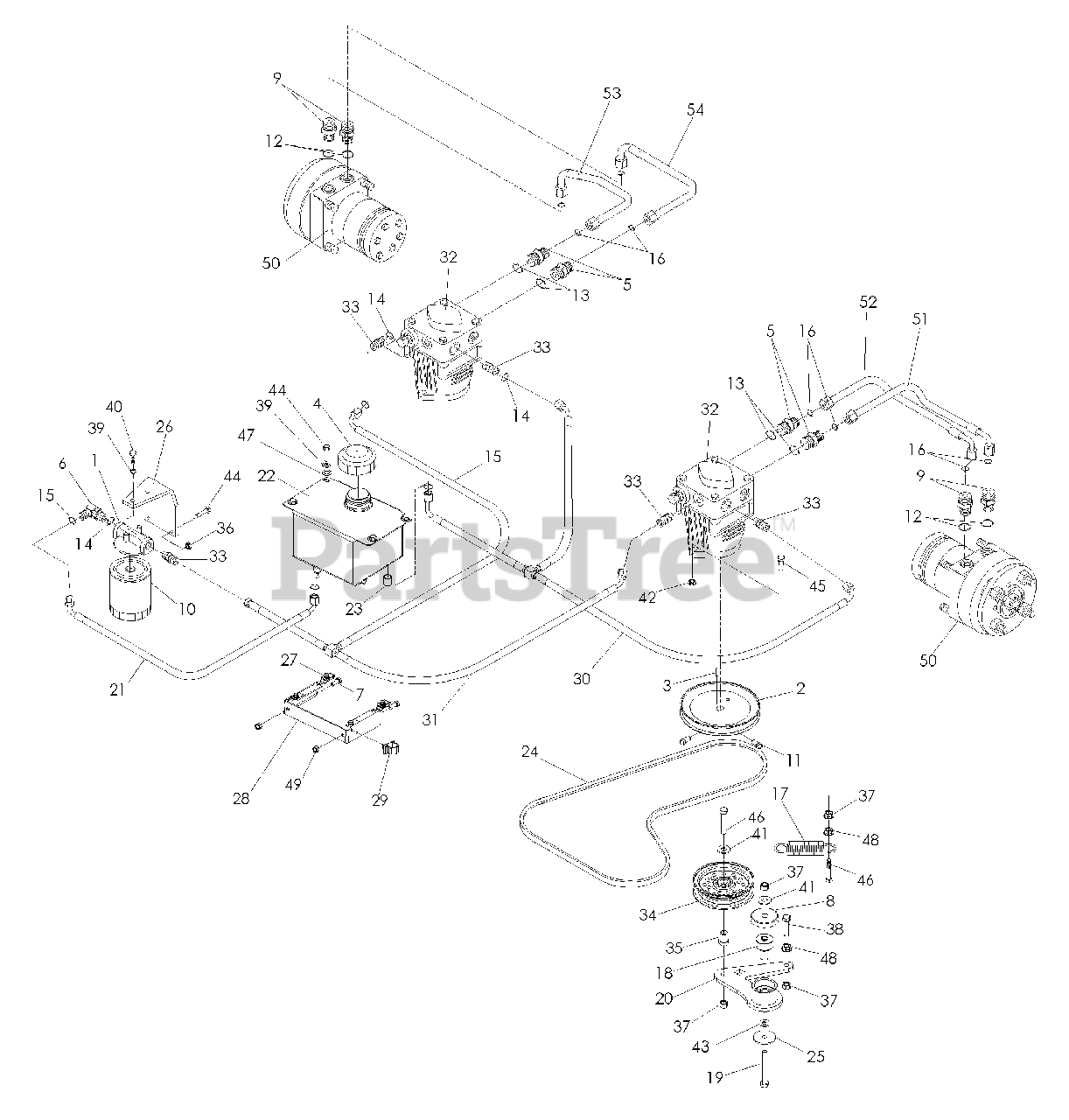

Hydraulic Pump - Motor Parts Diagram

  • Title

1

Husqvarna 539101165

FILTER HEAD

$46.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539101176

PULLEY

$

$

Not available

3

Husqvarna 539101177

KEY, 5MM SQ x 30MM

$8.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539101202

CAP, HYDRO RESERVOIR

$24.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539101237

FITTING, F6400-8-8-0

$12.99

$

In Stock, only 3 left!

0

6

Husqvarna 539101238

FITTING, F6801-6-6-0

$15.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539976934

HCS 5/16-18 x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 539114662

SHIELD, DUST 1/2 ID

$

$

Not available

9

Husqvarna 539102396

STRAIGHT FITTING

$

$

Not available

10

Husqvarna 539102606

FILTER ELEMENT

$44.99

$

In Stock, Qty 5

0

11

Husqvarna 539102717

SCREW 5/16-18 x 5/8

$3.99

$

In Stock, Qty 6

0

12

Husqvarna 539103115

O RING 3/4

$

$

Not available

13

Husqvarna 539103116

O RING 1/2

$

$

Not available

14

Husqvarna 539103117

O RING 3/4

$

$

Not available

15

Husqvarna 539103118

O RING FLARE 3/8

$

$

Not available

16

Husqvarna 539103119

O RING FLARE 1/2

$4.99

$

In Stock, only 3 left!

0

17

Husqvarna 539110655

SPRING, EXTENSION

$14.99

$

In Stock, only 1 left!

0

18

Husqvarna 539130205

BEARING, PIVOT

$4.99

$

In Stock, Qty 5

0

19

Husqvarna 539101341

HCS 3/8-16 x 3

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 539130392

ARM, IDLER

$48.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539132313

HOSE

$24.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539105024

OIL TANK

$303.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539105168

CAP

$3.99

$

In Stock, only 4 left!

0

24

Husqvarna 539106887

PUMP BELT
(Superseded to 510201401)

$

$

Not available

25

Husqvarna 539111897

WASHER 3/8 SPECIAL

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539106933

OIL FILTER BRACKET

$27.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539110813

RETAINER, U TYPE

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539110814

TANK MOUNT

$18.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539110815

CLIP, WIRE

$3.49

$

In Stock, only 1 left!

0

30

Husqvarna 539132315

T ASSEMBLY

$

$

Not available

31

Husqvarna 539132314

T ASSEMBLY

$46.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539132144

10CC PUMP w/RTN’S

$

$

Not available

33

Husqvarna 539113782

HYDRAULIC FITTING

$7.49

$

In Stock, only 3 left!

0

34

Husqvarna 539976688

PULLEY, IDLER

$

$

Not available

35

Husqvarna 539976695

BUSHING, FLANGE IDLER

$

$

Not available

36

Husqvarna 539976978

NUT 1/4-20 HEX NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 539990655

HCS 3/8-16 x 1 1/2

$4.99

$

In Stock, only 2 left!

0

39

Husqvarna 539990052

WASHER, 1/4 SPLIT LOCK

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990072

HCS 1/4-20 x 5/8

$3.99

$

In Stock, only 3 left!

0

41

Husqvarna 539990517

WASHER 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539990546

NUT 3/8-16 CENTERLOCK

$

$

Not available

43

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 539990580

HCS 1/4-20 x 3/4

$3.99

$

In Stock, only 4 left!

0

45

Husqvarna 539990582

HCS 3/8-16 x 1 WHIZLK

$

$

Not available

46

Husqvarna 539990588

HCS 3/8-16 x 2

$4.99

$

In Stock, Qty 12

0

47

Husqvarna 539990598

WASHER 1/4

$

$

Not available

48

Husqvarna 539990613

NUT 3/8-16 WHIZLK

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 539110823

WHEEL MOTOR

$1091.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539103527

WHEEL MOTOR MODELS iZ4217, iZ4819, iZ4217C

$

$

Not available

51

Husqvarna 539132310

HYDRAULIC LINE

$

$

Not available

52

Husqvarna 539132309

HYDRAULIC LINE

$36.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539132311

HYDRAULIC LINE
(Superseded to 539133062)

$46.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539132312

HYDRAULIC LINE

$36.99

$

Usually ships in 3-10 days

0
