iZ 25 (968999771) - Husqvarna Zero-Turn Mower (2008-01) Chassis, Engine & Pulleys Parts Diagram

Zero-Turn Mower

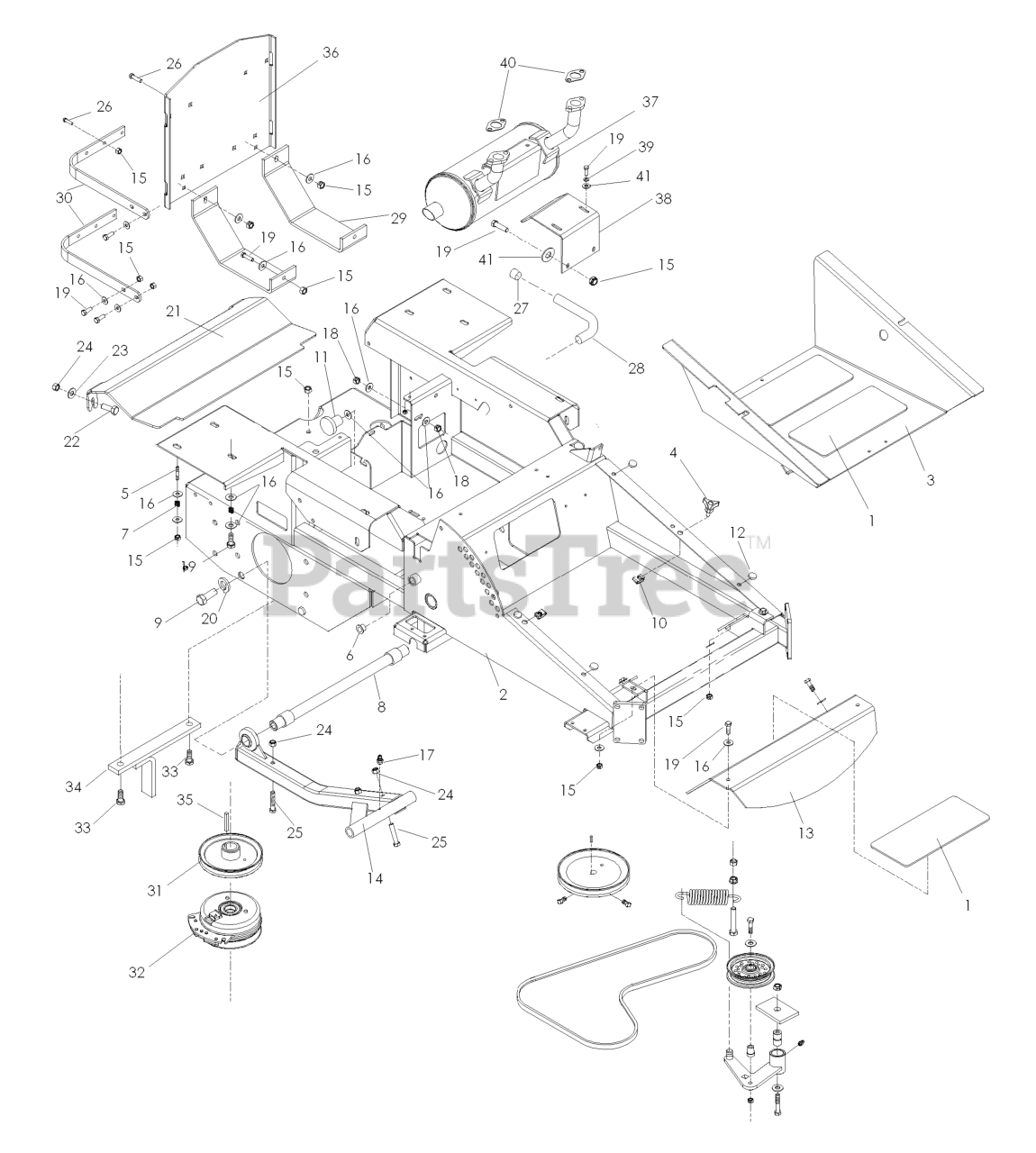

Chassis, Engine & Pulleys Parts Diagram

  • Title

1

Husqvarna 539977778

ANTI-SKID PAD

$4.99

$

In Stock, Qty 12

0

2

Husqvarna 539111098

IZ FRAME W/DECALS

$

$

Not available

3

Husqvarna 539111573

IZ FOOTPLATE W/DECAL

$

$

Not available

4

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 2 left!

0

6

Husqvarna 539102519

BUSHING

$

$

Not available

7

Husqvarna 539102845

SPRING

$3.49

$

In Stock, only 4 left!

0

8

Husqvarna 539104197

STRUT MOUNT WELDMENT

$

$

Not available

9

Husqvarna 539104199

HCS 5/8C X 2 GR.5

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 539105169

KNOB

$13.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 6

0

13

Husqvarna 539106941

FOOTREST ORANGE

$

$

Not available

14

Husqvarna 539110806

STRUT, RT

$

$

Not available

14

Husqvarna 539110807

STRUT, LT

$

$

Not available

15

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$

$

Not available

19

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, only 2 left!

0

21

Husqvarna 539112953

REAR GUARD

$

$

Not available

22

Husqvarna 539990134

SCREW 3/8C X 3/4 HEX CAP

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

24

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 12

0

26

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 539101364

DRAIN CAP

$

$

Not available

28

Husqvarna 539101362

OIL DRAIN HOSE

$34.99

$

In Stock, only 2 left!

0

29

Husqvarna 539106957

SKID PLATE

$

$

Not available

30

Husqvarna 539106961

ENGINE SHROUD BRKT

$

$

Not available

31

Husqvarna 539112774

PULLEY

$

$

Not available

32

Husqvarna 539105406

ELECTRIC CLUTCH W/CABLE

$

$

Not available

32

Husqvarna 539106880

CLUTCH-200 FT LB(RPLS 5218-102

$

$

Not available

33

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$

$

Not available

34

Husqvarna 539106819

CLUTCH TIE DOWN

$

$

Not available

35

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

$5.49

$

Usually ships in 3-10 days

0

36

Husqvarna 539106959

ENGINE GUARD

$

$

Not available

37

Husqvarna 539105897

MUFFLER KAWASAKI GEN II

$

$

Not available

38

Husqvarna 539111093

MUFFLER BRACKET BLACK

$

$

Not available

39

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

40

Husqvarna 539108199

EXHAUST GASKET - KAW

$

$

Not available

41

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

41

Husqvarna 539104415

KAW PIGTAIL

Note: (KAWASAKI) NOT SHOWN

$

$

Not available

41

Husqvarna 539104416

KOH PIGTAIL

Note: (KOHLER) NOT SHOWN

$

$

Not available
