iZ 4217 SKAA (968999229) - Husqvarna 42" Zero-Turn Mower (SN: 033600000 & Above) (2004-09) Deck Assembly 42" Parts Diagram

42" Zero-Turn Mower

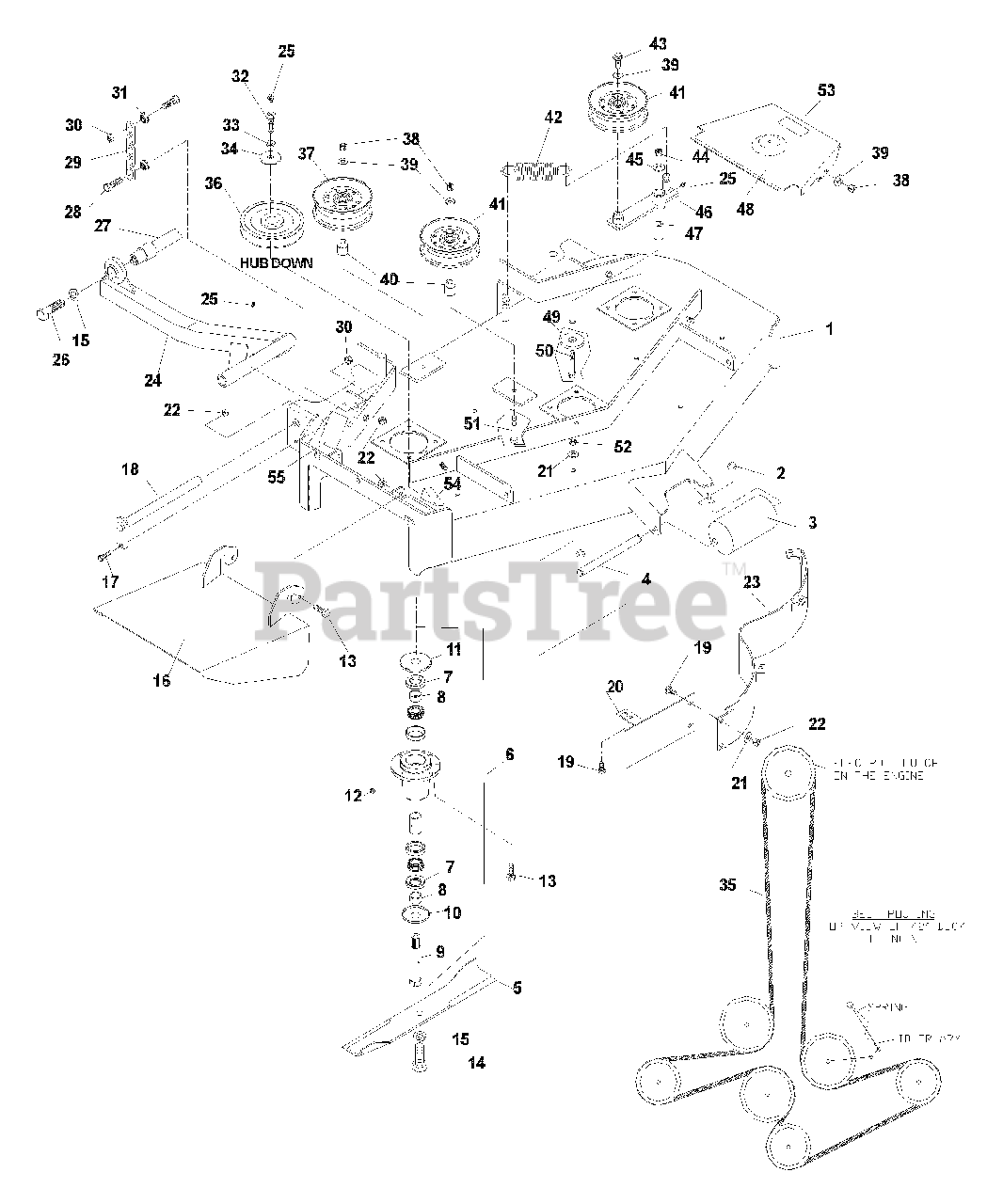

Deck Assembly 42" Parts Diagram

  • Title

1

Husqvarna 539105778

DECK W/DECALS

$

$

Not available

2

Husqvarna 539101949

1/2" E-RING

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539976828

ROLLER, LONG

$

$

Not available

4

Husqvarna 539103437

AXLE, ROLLER

$

$

Not available

5

Husqvarna 539103274

BLADE 14 7/8"

$21.99

$

In Stock, Qty 12

0

6

Husqvarna 539108772

CUTTER HOUSING, COMPLETE
(Superseded to 966956001)

$

$

Not available

7

Husqvarna 539108754

SHAFT SEAL

$4.99

$

In Stock, Qty 19

0

8

Husqvarna 539108758

SPACER

$

$

Not available

9

Husqvarna 539108759

MINI SPINDLE

$

$

Not available

10

Husqvarna 539108449

DUST CAP, BOTTOM

$4.99

$

In Stock, Qty 17

0

11

Husqvarna 539108450

DUST CAP, TOP

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 539977326

GREASE POPET

$13.99

$

In Stock, only 1 left!

0

13

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, Qty 10

0

14

Husqvarna 539103299

HCS 5/8F X 1 1/4

$7.49

$

In Stock, only 2 left!

0

15

Husqvarna 539990333

LOCKWASHER

$1.49

$

In Stock, Qty 6

0

16

Husqvarna 539105361

DISCHARGE CHUTE

$

$

Not available

17

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539102619

PIVOT PIN

$40.99

$

In Stock, only 3 left!

0

19

Husqvarna 539990799

CARRIAGE BOLT 5/16 X 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539105435

CENTER BAFFLE

$72.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990692

WASHER 5/16C, NYLOC
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

22

Husqvarna 539990717

NUT 5/16 CTR. LOCK
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539105439

MAIN BAFFLE

$218.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539104609

STRUT - RIGHT
(Superseded to 539108350)

$667.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539104621

STRUT - LEFT
(Superseded to 539108351)

Note: (NOT SHOWN)

$169.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539976998

1/4-28 ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

26

Husqvarna 539104199

HCS 5/16C X 2

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539104197

STRUT MT. WLD.

$

$

Not available

28

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539102641

CHAIN

$8.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539990839

7/16C CTR. LOCK

$3.99

$

In Stock, only 3 left!

0

31

Husqvarna 539102582

7/16C WHIZ NUT

$

$

Not available

32

Husqvarna 539108766

HCS 7/16F X 1 1/2, SPEC.
(Superseded to 539112120)

$30.99

$

In Stock, only 1 left!

0

33

Husqvarna 539990247

7/16 LOCKWASHER

$

$

Not available

34

Husqvarna 539106504

WASHER

$

$

Not available

35

Husqvarna 539103240

BELT

$133.99

$

In Stock, only 1 left!

0

36

Husqvarna 539107276

PULLEY
(Superseded to 539112141)

$42.99

$

In Stock, Qty 11

0

37

Husqvarna 539103258

IDLER PULLEY 1.62

$53.99

$

In Stock, Qty 8

0

38

Husqvarna 539976979

NUT 3/8C, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539990517

WASHER 3/8 STD.

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539103295

IDLER BUSHING

$9.99

$

In Stock, Qty 17

0

41

Husqvarna 539103257

IDLER PULLEY 1.31

$74.99

$

In Stock, Qty 9

0

42

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

43

Husqvarna 539990582

HCS 3/8C X 1

$

$

Not available

44

Husqvarna 539101331

NUT 1/2C NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 539990550

WASHER 1/2 STD.

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539103230

IDLER ARM

$

$

Not available

47

Husqvarna 539103427

PIVOT BUSHING

$7.49

$

In Stock, Qty 6

0

48

Husqvarna 539108898

BELT SHIELD, LEFT

$

$

Not available

48

Husqvarna 539108896

BELT SHIELD, RIGHT

Note: (NOT SHOWN)

$

$

Not available

49

Husqvarna 539102243

SUPPORT WASHER

$

$

Not available

50

Husqvarna 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 11

0

51

Husqvarna 539102612

HCS 3/8C X 2 3/4

$4.99

$

In Stock, Qty 6

0

52

Husqvarna 539990184

HLN 5/16C

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539102892

DECAL, NO STEP

$0.99

$

In Stock, only 2 left!

0

54

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

55

Husqvarna 539100344

DECAL, DANGER

$

$

Not available
