iZ 4217 SKAA (968999229) - Husqvarna 42" Zero-Turn Mower (SN: 033600000 & Above) (2004-09) Hydraulic Assembly (TE) Parts Diagram

42" Zero-Turn Mower

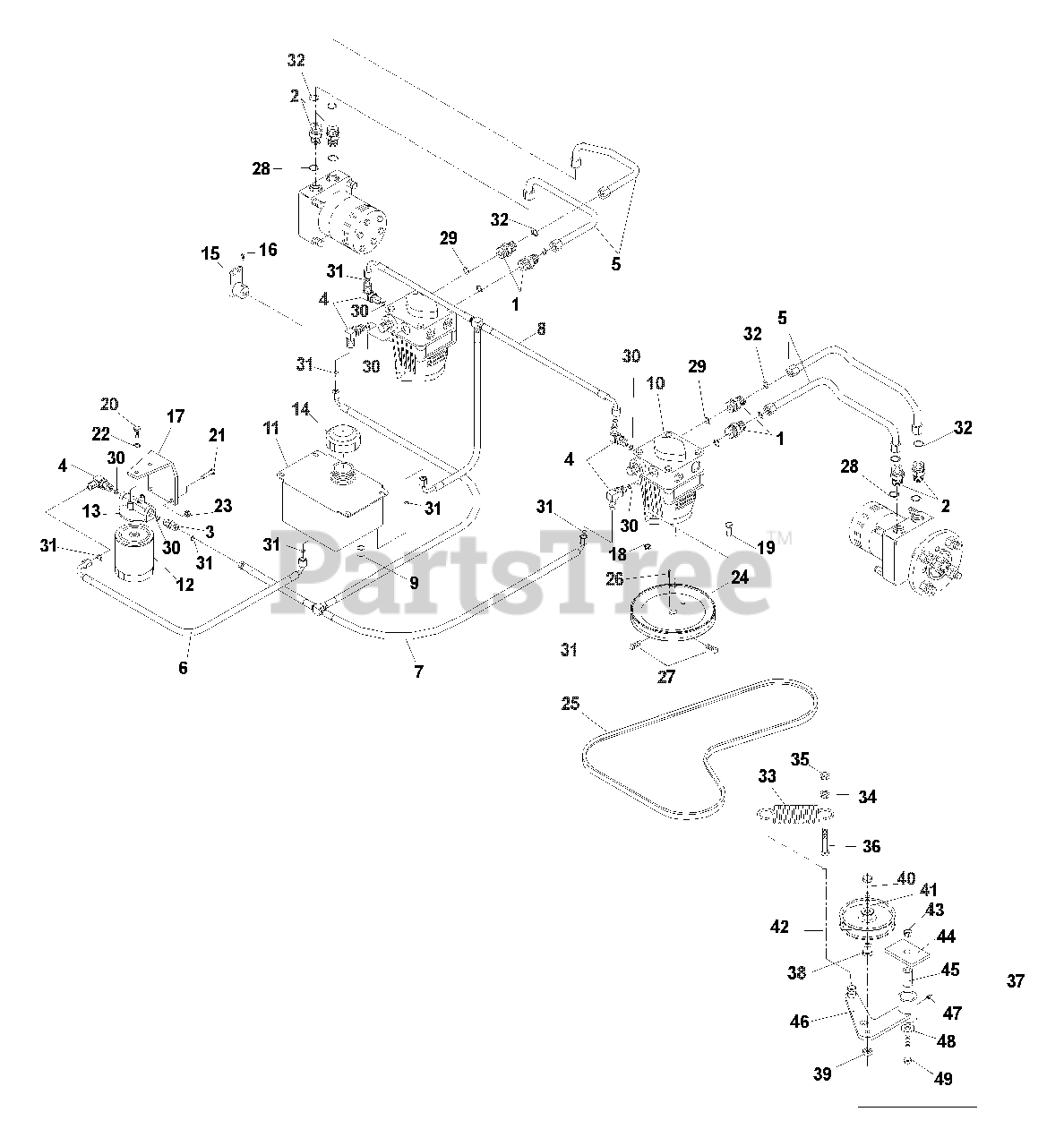

Hydraulic Assembly (TE) Parts Diagram

  • Title

1

Husqvarna 539101237

FITTING, STRAIGHT, F6400-8-8-0

$12.99

$

In Stock, only 3 left!

0

2

Husqvarna 539102396

FITTING, STRAIGHT

$

$

Not available

3

Husqvarna 539103316

FITTING, F6400-6-6-0

$8.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539101238

FITTING, 90°, F6801-6-6-0

$15.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539106896

HYDRAULIC LINE

$

$

Not available

6

Husqvarna 539104722

HOSE, 7"

$

$

Not available

7

Husqvarna 539106895

"T" ASSEMBLY

$

$

Not available

8

Husqvarna 539106897

"T" ASSEMBLY

$60.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539105168

CAP

$3.99

$

In Stock, only 4 left!

0

10

Husqvarna 539108246

PUMP
(Superseded to 539132147)

$

$

Not available

11

Husqvarna 539105024

TANK

$303.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102606

FILTER

$44.99

$

In Stock, Qty 11

0

13

Husqvarna 539101165

FILTER HEAD

$46.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539101202

CAP HYDRAULIC RESERVOIR

$24.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539104382

PUMP LEVER

$

$

Not available

16

Husqvarna 539105079

V-POINT, 5/16C X 5/8

$

$

Not available

17

Husqvarna 539106933

BRACKET, OIL FILTER

$27.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990546

NUT, 3/8C, LOCK

$

$

Not available

19

Husqvarna 539990582

HFCS, 3/8C X 1

$

$

Not available

20

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 3 left!

0

21

Husqvarna 539990580

HCS 1/4C X 3/4

$3.99

$

In Stock, only 4 left!

0

22

Husqvarna 539990052

LOCKWASH, 1/4

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539976978

NUT, 1/4C, NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539101176

PULLEY, PUMP

$

$

Not available

25

Husqvarna 539106887

BELT, PUMP
(Superseded to 510201401)

$

$

Not available

26

Husqvarna 539101177

KEY, 5MM SQ X 25MM

$8.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539102717

SET SCREW, 5/16C X 5/8

$3.99

$

In Stock, Qty 6

0

28

Husqvarna 539103115

"O" RING, 3/4

$

$

Not available

29

Husqvarna 539103116

"O" RING, 1/2

$

$

Not available

30

Husqvarna 539103117

"O" RING, 3/8

$

$

Not available

31

Husqvarna 539103118

"O" RING FLARE, 3/8

$

$

Not available

32

Husqvarna 539103119

"O" RING FLARE, 1/2

$4.99

$

In Stock, only 3 left!

0

33

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

34

Husqvarna 539990613

NUT, 3/8C, WHIZ

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539976979

NUT, 3/8C, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 12

0

37

Husqvarna 539107708

IDLER ARM ASSEMBLY

$7.49

$

In Stock, Qty 5

0

38

Husqvarna 539976695

IDLER FLANGE BUSHING

$

$

Not available

39

Husqvarna 539990546

NUT, 3/8C, CENTERLOCK

$

$

Not available

40

Husqvarna 539990730

HCS, 3/8C X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539990517

WASHER, 3/8

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

43

Husqvarna 539101331

NUT, 1/2C, NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 539102236

SUPPORT PLATE

$27.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539103427

PIVOT BUSHING

$7.49

$

In Stock, Qty 6

0

46

Husqvarna 539104388

IDLER ARM
(Superseded to 539130532)

$182.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

48

Husqvarna 539990550

WASHER, 1/2

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539103433

HCS, 1/2C X 3 1/4, GR5

$4.99

$

In Stock, Qty 14

0
