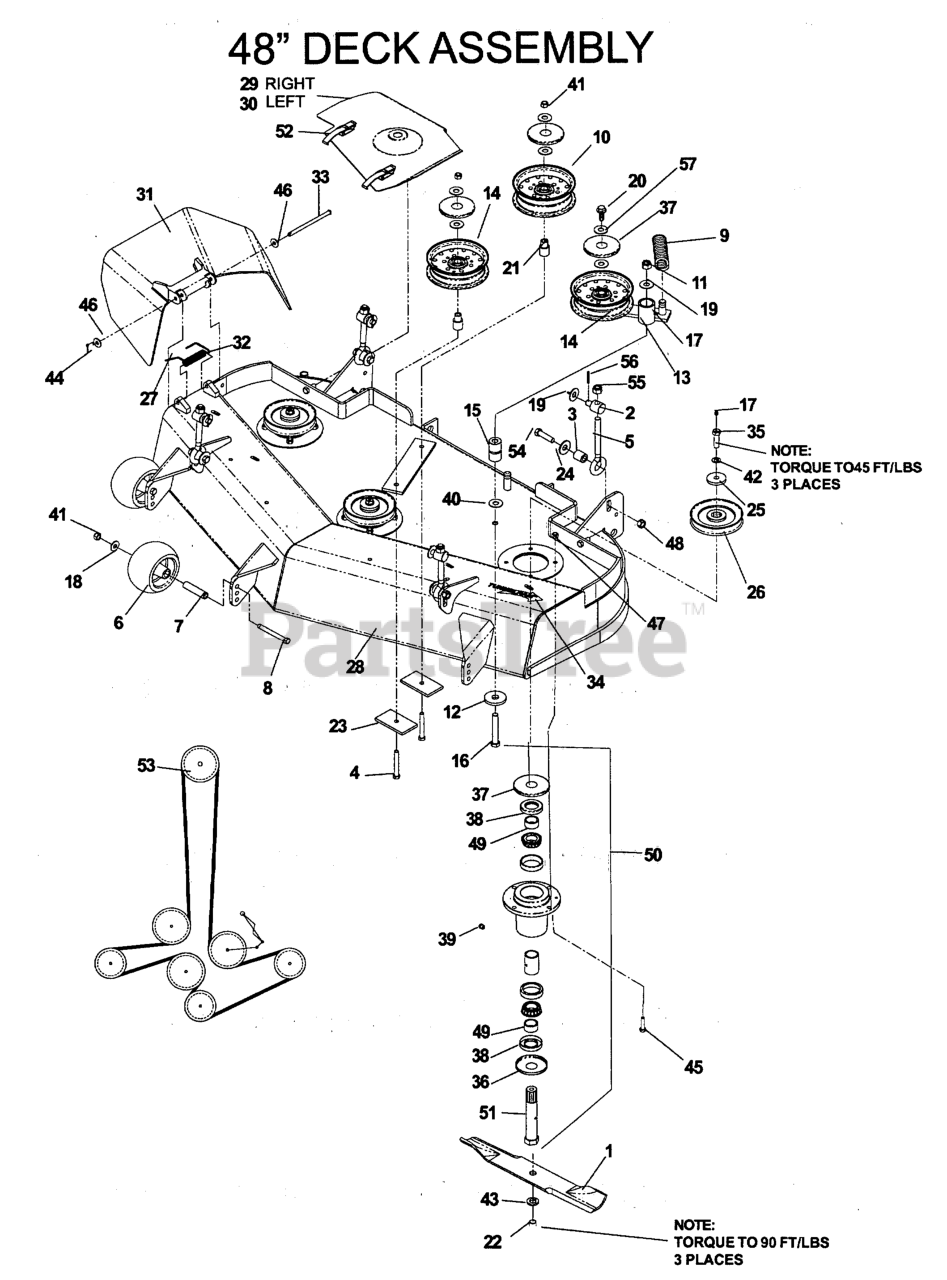

iZ 4217 T (968999254) - Husqvarna 42" Zero-Turn Mower (2006-08) 48"/122CM CUTTING DECK Parts Diagram

42" Zero-Turn Mower

48"/122CM CUTTING DECK Parts Diagram

  • Title

27

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, Qty 10

0

7

Husqvarna 539102698

BUSHING

$

$

Not available

30

Husqvarna 539108687

48 BELT SHIELD ASM - LH

$133.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539114405

SWIVEL

$

$

Not available

24

Husqvarna 539112484

SPRING WASHER - .50

$9.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

20

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

52

Husqvarna 539109660

DRAW LATCH

$14.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$4.99

$

In Stock, Qty 7

0

6

Husqvarna 539102643

ANTI-SCALP ROLLER

$

$

Not available

38

Husqvarna 539108754

SHAFT SEAL

$4.99

$

In Stock, Qty 19

0

15

Husqvarna 539103427

PIVOT BUSHING

$7.49

$

In Stock, Qty 6

0

26

Husqvarna 539107276

RP PULLEY - 42/48"
(Superseded to 539112141)

$42.99

$

In Stock, Qty 11

0

55

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

8

Husqvarna 539102754

HCS 3/8C X 3 1/2

$4.99

$

In Stock, Qty 14

0

33

Husqvarna 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD

$

$

Not available

9

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

16

Husqvarna 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 12

0

46

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

28

Husqvarna 539111376

DECK W/DECALS 48" HUS

$

$

Not available

14

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 11

0

31

Husqvarna 539110732

DISCHARGE CHUTE 48"

$53.99

$

In Stock, Qty 20+

0

22

Husqvarna 539103299

HCS 5/8F X 1 1/4

$7.49

$

In Stock, only 2 left!

0

56

Husqvarna 539109246

PIN COTTER 1/8 X 1 ZD

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539103295

IDLER BUSHING

$9.99

$

In Stock, Qty 20+

0

41

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

43

Husqvarna 539990333

LOCKWASHER 5/8

$1.49

$

In Stock, Qty 6

0

36

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 17

0

40

Husqvarna 539113104

WASHER 1/2 X 1.44 HRD ZD

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539108450

TOP DUST CAP

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

51

Husqvarna 539112121

MINI SPINDLE
(Superseded to 539112931)

$54.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539114404

SPACER

$

$

Not available

50

Husqvarna 539108773

SPINDLE ASSY - 52/61"
(Superseded to 966956101)

$145.99

$

In Stock, Qty 20+

0

5

Husqvarna 539119227

BOLT, EYE

$18.99

$

In Stock, only 3 left!

0

25

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

53

Husqvarna 539111949

BELT, DECK 48"

$

$

Not available

35

Husqvarna 539112120

HCS 7/16-20 GD 8 SPEC

$30.99

$

In Stock, only 1 left!

0

39

Husqvarna 539977326

PLUG-VENTED

$13.99

$

In Stock, only 1 left!

0

49

Husqvarna 539108758

SPACER

$

$

Not available

54

Husqvarna 539108073

HCS 7/16 - 14 X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

13

Husqvarna 539103230

IDLER ARM

$

$

Not available

10

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, Qty 8

0

44

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

34

Husqvarna 539111812

DECAL, TUNNEL RAM 6"

$14.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

32

Husqvarna 539110735

SPRING - TORSION
(Superseded to 596646001)

$3.99

$

In Stock, Qty 17

0

1

Husqvarna 539100340

BLADE OEM 16 1/4"

$15.99

$

In Stock, Qty 17

0

29

Husqvarna 539108686

48 BELT SHIELD ASM - RH

$218.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0
