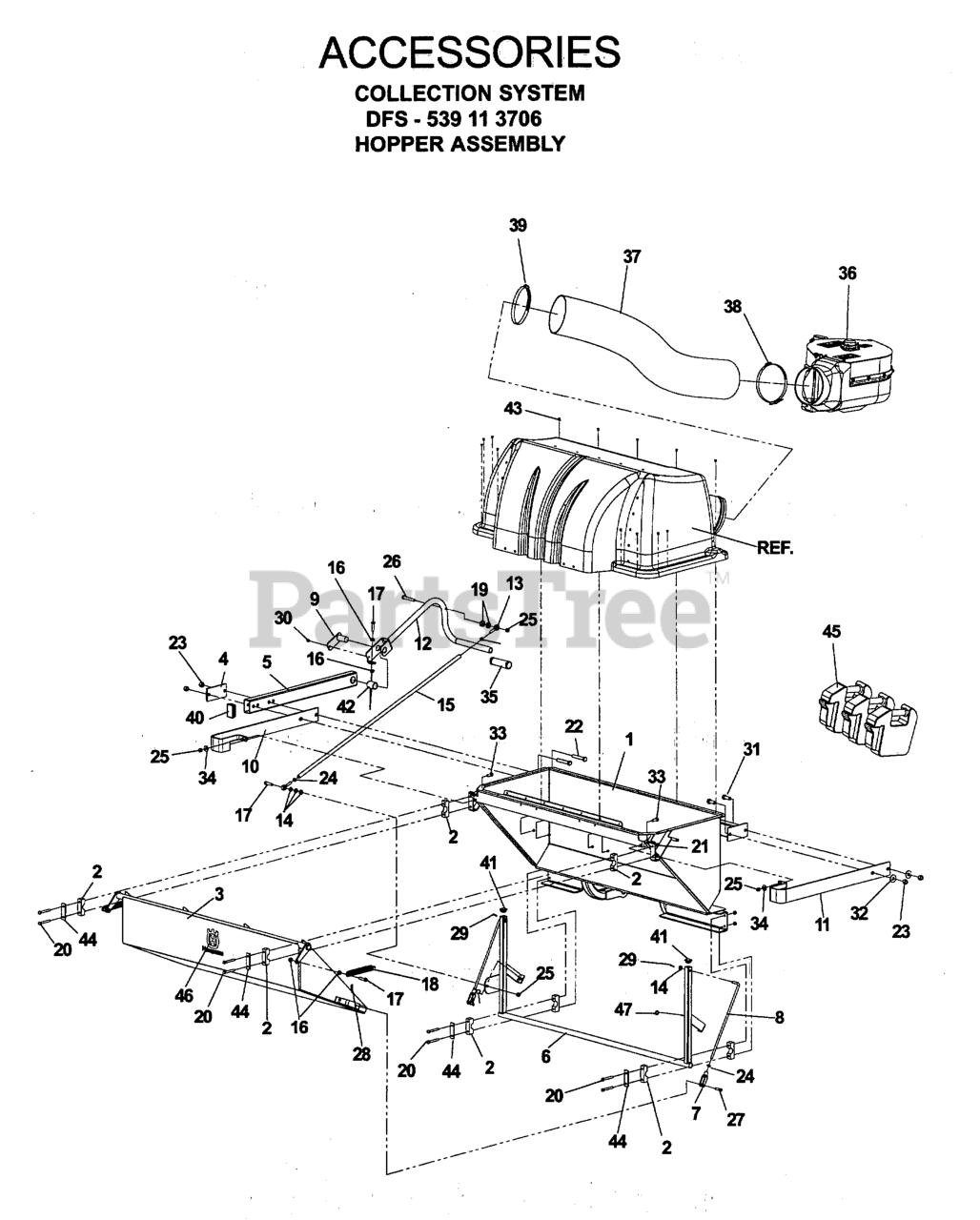

iZ 4217 T (968999254) - Husqvarna 42" Zero-Turn Mower (2006-08) ACCESSORIES Parts Diagram

42" Zero-Turn Mower

ACCESSORIES Parts Diagram

  • Title

37

Husqvarna 539111287

HOSE 7 X 58 CLEAR

$339.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539000019

FRT WEIGHT CAST PZ DFS
(Superseded to 539092531)

$133.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539113739

ROD END - 3/8-24 RH

$

$

Not available

19

Husqvarna 539102656

SPACER

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

27

Husqvarna 539109232

PIN CLEVIS, 3/8 X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539101572

SCREW, 1/2C X 3 HEX CAP

$4.99

$

In Stock, Qty 13

0

14

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539108369

HCS 1/2-13 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539104807

REINFORCEMENT BAR
(Superseded to 584392702)

$4.99

$

In Stock, only 3 left!

0

32

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

26

Husqvarna 539106492

HEX SCREW 3/8-20 X 2.75

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539113757

PLUG - RETANGULAR TUBING

$

$

Not available

35

Husqvarna 539000033

IMPELLER KIT, 3.5/5HP

$

$

Not available

3

Husqvarna 539113747

WELDMENT - DOOR

$

$

Not available

12

Husqvarna 539113752

WELDMENT, HANDLE

$279.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539113749

WELDMENT - PIN, PIVOT

$56.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539113758

PLUG - SQUARE TUBE

$

$

Not available

23

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539113751

GUARD - R.H.

$

$

Not available

46

Husqvarna 539111055

DECAL, CROWN H 5-1/4 SILVER

$24.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539113754

WELDMENT - HOPPER

$1133.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539113753

TUBE - THREADED

$

$

Not available

47

Husqvarna 539102587

GROMMET, BUMPER

$4.99

$

In Stock, Qty 17

0

17

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

21

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 539111230

BLOWER ASSEMBLY
(Superseded to 580715301)

$

$

Not available

20

Husqvarna 539991046

BOLT 5/16C X 2 1/2

$4.99

$

In Stock, Qty 8

0

6

Husqvarna 539113746

WELDMENT - BELL CRANK

$

$

Not available

34

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539113722

ROD.DOOR.COLECTION

$79.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.49

$

Usually ships in 3-10 days

0

18

Husqvarna 539107315

SPRING BAGGER

$9.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 539113755

PLATE - BACKING

$

$

Not available

7

Husqvarna 539977465

YOKE-3/8-24 PLTD

$24.99

$

In Stock, Qty 12

0

38

Husqvarna 539109901

OVER CTR BAND

$78.99

$

In Stock, only 1 left!

0

43

Husqvarna 539200684

RIVERT, 3/16, STAVEX

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539990302

HWST 1/4C X 3/8

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539108732

NUT 3/8-24 JAM

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539104808

PILLOW BLOCK

$8.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539113731

BUSHING - BRONZE, 1.0"

$45.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539113748

TUBE - SUPPORT, HANDLE

$

$

Not available

10

Husqvarna 539113750

GUARD - L.H.

$

$

Not available

39

Husqvarna 539097076

HOSE CLAMP 4-1/8 TO 7"

$8.99

$

Usually ships in 3-10 days

0
