iZ 4217 T (968999254) - Husqvarna 42" Zero-Turn Mower (2006-08) FRAME Parts Diagram

42" Zero-Turn Mower

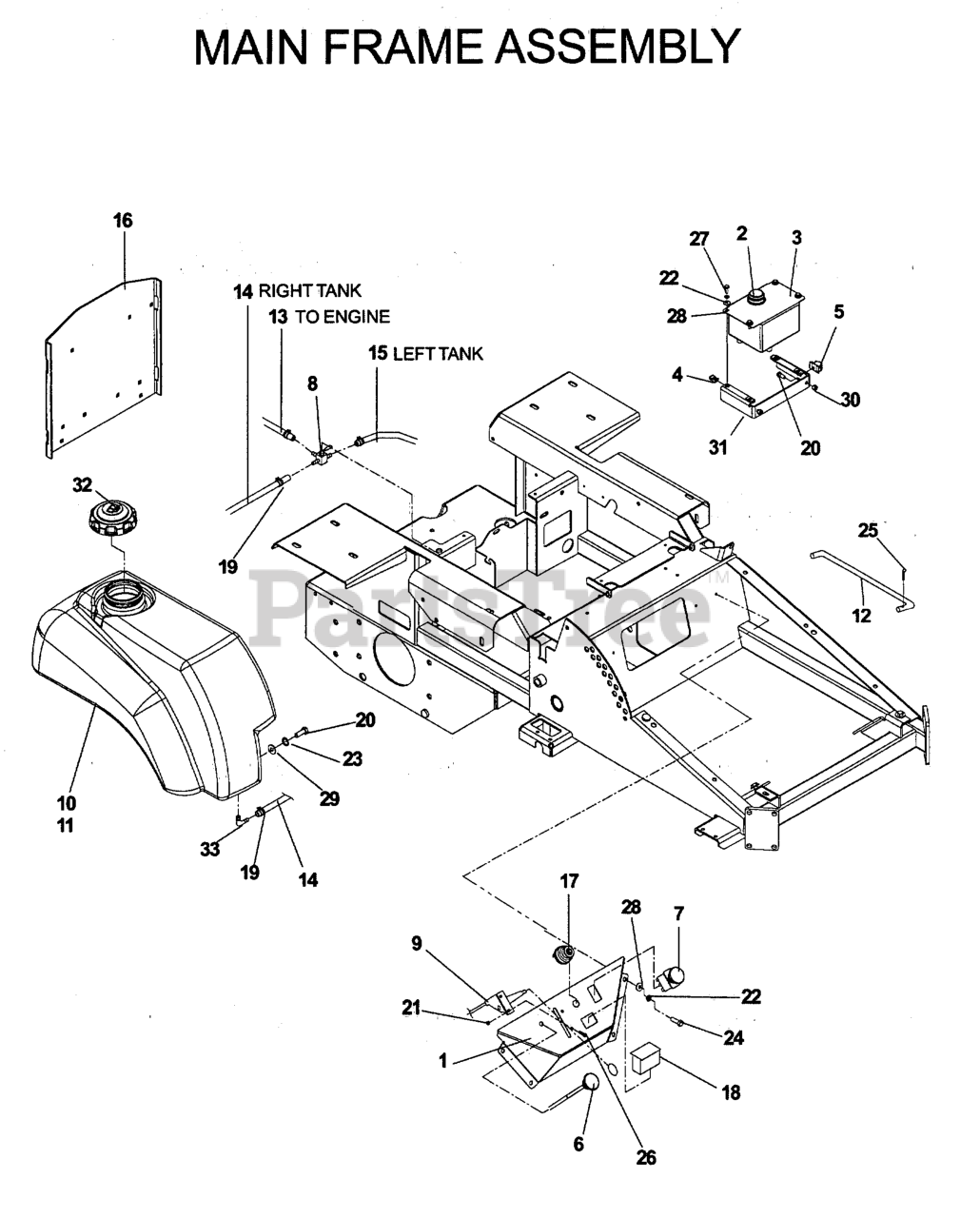

FRAME Parts Diagram

  • Title

8

Husqvarna 539102679

FUEL VALVE
(Superseded to 598462501)

$51.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539105024

OIL TANK

$

$

Not available

11

Husqvarna 539104410

FUEL TANK RT

$

$

Not available

26

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539106959

ENGINE GUARD

$48.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, only 4 left!

0

21

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

9

Husqvarna 539103275

THROTTLE CABLE

$34.99

$

In Stock, only 3 left!

0

20

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 539110815

PUSH-MOUNT WIRE CLIP

$5.49

$

In Stock, only 1 left!

0

22

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$28.99

$

In Stock, Qty 20+

0

32

Husqvarna 539106188

FUEL CAP ANTI-SPLASH
(Superseded to 539130394)

$37.99

$

In Stock, only 2 left!

0

13

Husqvarna 539105281

FUEL LINE 29.5"
(Superseded to 539105382)

$20.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539102650

HOSE BARB 90 DEGREE

$

$

Not available

539 113458

Husqvarna 539113458

CABLE, CHOKE

$56.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 539105530

FUEL LINE 34"

$

$

Not available

25

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$8.99

$

In Stock, Qty 9

0

4

Husqvarna 539110813

1/4C - U TYPE RETAINER

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539105527

FUEL LINE 24"
(Superseded to 539110424)

$9.49

$

In Stock, only 2 left!

0

24

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

31

Husqvarna 539110814

TANK MOUNT

$

$

Not available

12

Husqvarna 539104525

SEAT ROD

$

$

Not available

27

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539111147

CONSOLE W/DECALS

$

$

Not available

10

Husqvarna 539104409

LEFT TANK W/CUP HOLDER

$

$

Not available

19

Husqvarna 539912222

HOSE CLAMP

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539101768

RP.SWITCH, BLADE
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

28

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

2

Husqvarna 539101202

HYDRAULIC CAP

$34.99

$

In Stock, only 2 left!

0

18

Husqvarna 539110074

HOUR METER
(Superseded to 576179401)

$31.99

$

In Stock, only 3 left!

0

6

Husqvarna 539102733

CHOKE CONTROL, COMPLETE

$62.99

$

In Stock, only 3 left!

0
