iZ 4217 TSKAA (968999254) - Husqvarna 42" Zero-Turn Mower (2006-08) Accessories (DFS Collection System - Hopper Assembly) Parts Diagram

42" Zero-Turn Mower

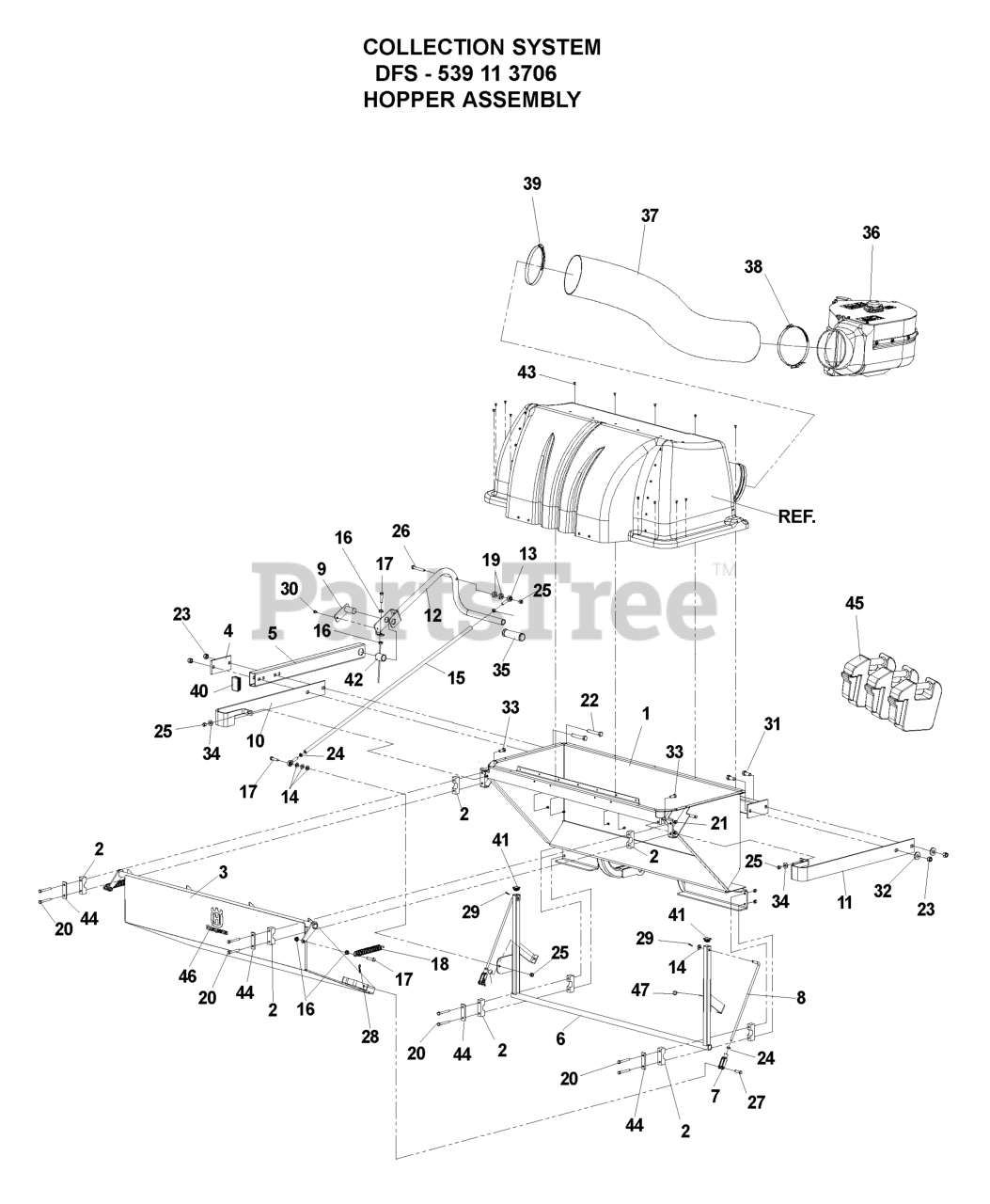

Accessories (DFS Collection System - Hopper Assembly) Parts Diagram

  • Title

1

Husqvarna 539113754

HOPPER

$

$

Not available

2

Husqvarna 539104808

PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

3

Husqvarna 539113747

DOOR

$1139.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539113755

PLATE - BACKING

$6.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539113748

TUBE, SUPPORT, HANDLE

$

$

Not available

6

Husqvarna 539113746

BELL CRANK

$

$

Not available

7

Husqvarna 539977465

YOKE, 3/8F

$

$

Not available

8

Husqvarna 539113722

ROD, DOOR

$17.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539113749

PIN, PIVOT

$

$

Not available

10

Husqvarna 539113750

GUARD, LEFT

$96.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539113751

GUARD, RIGHT

$85.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539113752

HANDLE

$

$

Not available

13

Husqvarna 539113739

ROD END, 3/8-24, RH

$68.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539990122

WASHER, 3/8, SAE
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 539113753

TUBE, THREADED

$250.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990613

NUT, 3/8-16, WHIZLK

$

$

Not available

17

Husqvarna 539990655

HCS, 3/8-16 X 1 1/2, GR5

$4.99

$

In Stock, only 1 left!

0

18

Husqvarna 539107315

SPRING

$13.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539102656

SPACER

$13.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539991046

HCS, 5/16-18 X 2 1/2, GR5

$4.99

$

In Stock, Qty 8

0

21

Husqvarna 539990717

NUT, 5/16-18, NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

22

Husqvarna 539101572

HCS, 1/2-13 X 3, GR5

$5.99

$

In Stock, Qty 5

0

23

Husqvarna 539101331

NUT, 1/2-13, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 539108732

NUT, 3/8-24, JAM
(Superseded to 596029901)

$3.49

$

In Stock, only 2 left!

0

25

Husqvarna 539976979

NUT, 3/8-16, NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 539106492

HCS, 3/8-16 X 2 3/4, GR5

$

$

Not available

27

Husqvarna 539109232

PIN CLEVIS, 3/8 X 1 1/4
(Superseded to 599260701)

$11.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539976988

HAIRPIN COTTER
(Superseded to 596580601)

$4.99

$

In Stock, only 3 left!

0

29

Husqvarna 539990365

PIN, COTTER, 1/8 X 3/4
(Superseded to 596029501)

$3.49

$

In Stock, Qty 5

0

30

Husqvarna 539990302

SCREW, 1/4C X 3/8, THREAD FORMING
(Superseded to 596582701)

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 539108369

HCS, 1/2-13 X 1 1/4, GR5

$3.49

$

Usually ships in 3-10 days

0

32

Husqvarna 539109554

WASHER, 1/2
(Superseded to 595316401)

$3.49

$

In Stock, only 3 left!

0

33

Husqvarna 539990563

HCS, 3/8-16 X 1, GR5
(Superseded to 596564401)

$4.99

$

In Stock, Qty 7

0

34

Husqvarna 539990517

WASHER, 3/8
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

35

Husqvarna 539000033

GRIP, HANDLE

$

$

Not available

36

Husqvarna 539111230

BLOWER
(Superseded to 580715301)

$

$

Not available

37

Husqvarna 539111287

HOSE, L

$

$

Not available

38

Husqvarna 539109901

OVER CENTER BAND

$74.99

$

In Stock, only 1 left!

0

39

Husqvarna 539097076

HOSE CLAMP, 6-7

$

$

Not available

40

Husqvarna 539113757

PLUG, RECTANGULAR TUBING

$3.49

$

Usually ships in 3-10 days

0

41

Husqvarna 539113758

PLUG, SQUARE TUBE

$3.49

$

Usually ships in 3-10 days

0

42

Husqvarna 539113731

BUSHING, 1

$39.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539200684

RIVET, 3/6, STAVEX

$7.99

$

In Stock, Qty 9

0

44

Husqvarna 539104807

REINFORCEMENT BAR
(Superseded to 584392702)

$13.99

$

In Stock, only 2 left!

0

45

Husqvarna 539000019

WEIGHT CAST, FRONT
(Superseded to 539092531)

$

$

Not available

46

Husqvarna 539111055

DECAL, CROWN

$

$

Not available

47

Husqvarna 539102587

GROMMET, BUMPER 69

$5.99

$

In Stock, Qty 9

0

539113706

Husqvarna 539113706

Hopper Assembly Collection (DFS)

$

$

Not available
