iZ 4217 TSKAA (968999254) - Husqvarna 42" Zero-Turn Mower (2006-08) Seat Assembly Parts Diagram

42" Zero-Turn Mower

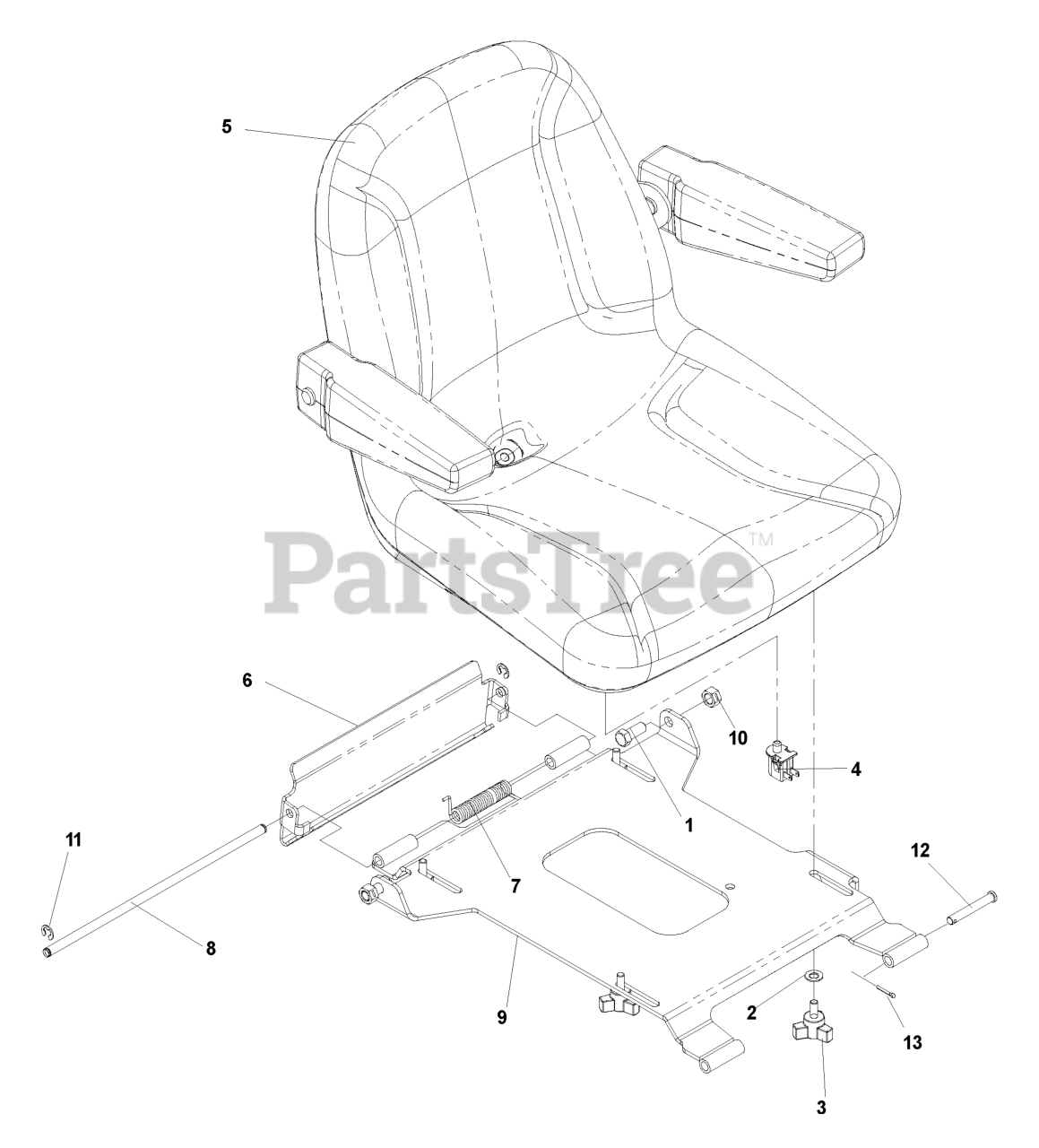

Seat Assembly Parts Diagram

  • Title

1

Husqvarna 539100143

HCS, 7/16-14 X 1, GR5

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539102593

WASHER, 3/8, SPRING, SPEC

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$2.49

$

In Stock, Qty 20+

0

4

Husqvarna 539107523

SEAT SWITCH

$8.99

$

In Stock, Qty 8

0

5

Husqvarna 539108744

SEAT W/ARMREST

$

$

Not available

6

Husqvarna 539110644

SEAT LATCH BRACKET

$34.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539110645

TORISON SPRING

$12.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539110646

SEAT LATCH ROD

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539110821

SEAT MOUNT

$109.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990839

NUT, 7/16-14, CENTERLOCK, GR A

$3.99

$

In Stock, only 3 left!

0

11

Husqvarna 539990870

RING-RETAINING

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 539110819

CLEVIS PIN

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990365

PIN, COTTER, 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

Husqvarna 539111026

SEAT BELT

Note: (NOT SHOWN)

$60.99

$

Usually ships in 3-10 days

0

Husqvarna 539104392

SEAT HARNESS

Note: (NOT SHOWN)

$

$

Not available
