iZ 4817 (968999231) - Husqvarna 48" Zero-Turn Mower (2004-09) 52"/132CM CUTTING DECK Parts Diagram

48" Zero-Turn Mower

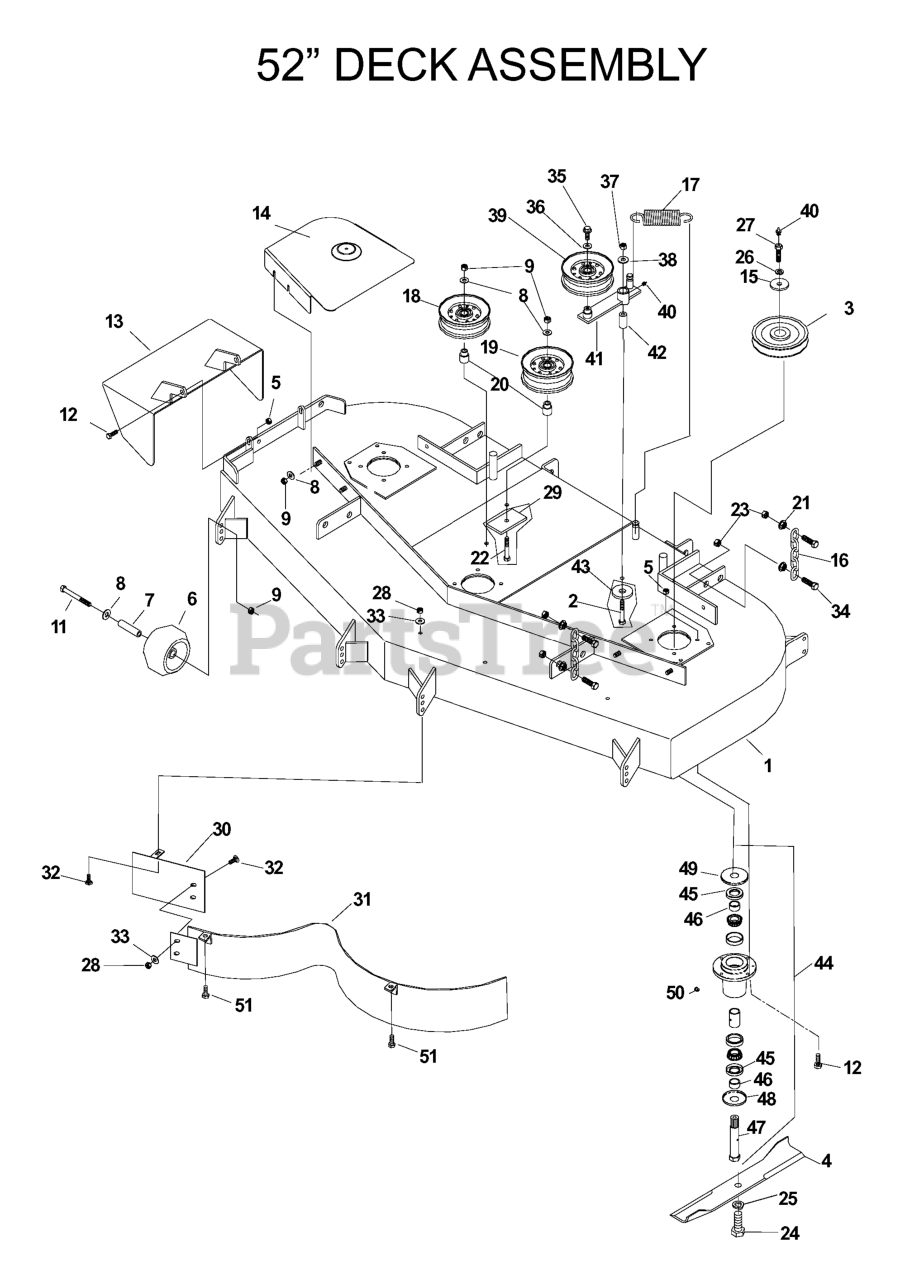

52"/132CM CUTTING DECK Parts Diagram

  • Title

47

Husqvarna 539108760

52/61 SPINDLE - SPLINED SHAFT
(Superseded to 539112122)

$

$

Not available

3

Husqvarna 539107277

PULLEY - 52"
(Superseded to 539112124)

$44.99

$

In Stock, Qty 7

0

20

Husqvarna 539103295

IDLER BUSHING

$9.99

$

In Stock, Qty 18

0

37

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539108773

SPINDLE ASSY - 52/61"
(Superseded to 966956101)

$145.99

$

In Stock, Qty 20+

0

10

Husqvarna 539106884

DECK BELT - 52"
(Superseded to 510201201)

$

$

Not available

49

Husqvarna 539108450

TOP DUST CAP

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

51

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 539102643

ANTI-SCALP ROLLER

$

$

Not available

9

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539103230

IDLER ARM

$

$

Not available

23

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

39

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 11

0

21

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

29

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

46

Husqvarna 539108758

SPACER

$

$

Not available

19

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, Qty 8

0

24

Husqvarna 539103299

HCS 5/8F X 1 1/4

$7.49

$

In Stock, only 2 left!

0

4

Husqvarna 539100341

BLADE OEM 18"

$

$

Not available

31

Husqvarna 539105457

MAIN BAFFLE 52"

$267.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$4.99

$

In Stock, Qty 7

0

5

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 539990333

LOCKWASHER 5/8

$1.49

$

In Stock, Qty 6

0

45

Husqvarna 539108754

SHAFT SEAL

$4.99

$

In Stock, Qty 19

0

12

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, Qty 10

0

32

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539105192

DECK SPRING

$

$

Not available

18

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 11

0

42

Husqvarna 539103427

PIVOT BUSHING

$7.49

$

In Stock, Qty 6

0

33

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

1

Husqvarna 539107433

DECK W/DECALS 52" HUS WSL

$

$

Not available

14

Husqvarna 539108908

RT 52 SHIELD, ORANGE
(Superseded to 539114202)

$103.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539105453

CENTER BAFFLE - 52"

$

$

Not available

26

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

16

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539107312

DISCHARGE CHUTE ORANGE

$399.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 11

0

43

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

35

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

50

Husqvarna 539977326

PLUG-VENTED

$13.99

$

In Stock, only 1 left!

0

28

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 17

0

7

Husqvarna 539102698

BUSHING

$

$

Not available

539108910

Husqvarna 539108910

LT 52 SHIELD ORANGE
(Superseded to 539114204)

$103.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539102754

HCS 3/8C X 3 1/2

$4.99

$

In Stock, Qty 14

0

27

Husqvarna 539108766

DRILLED BOLT 7/16-20 X 1 1/2"
(Superseded to 539112120)

$30.99

$

In Stock, only 1 left!

0

34

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0
