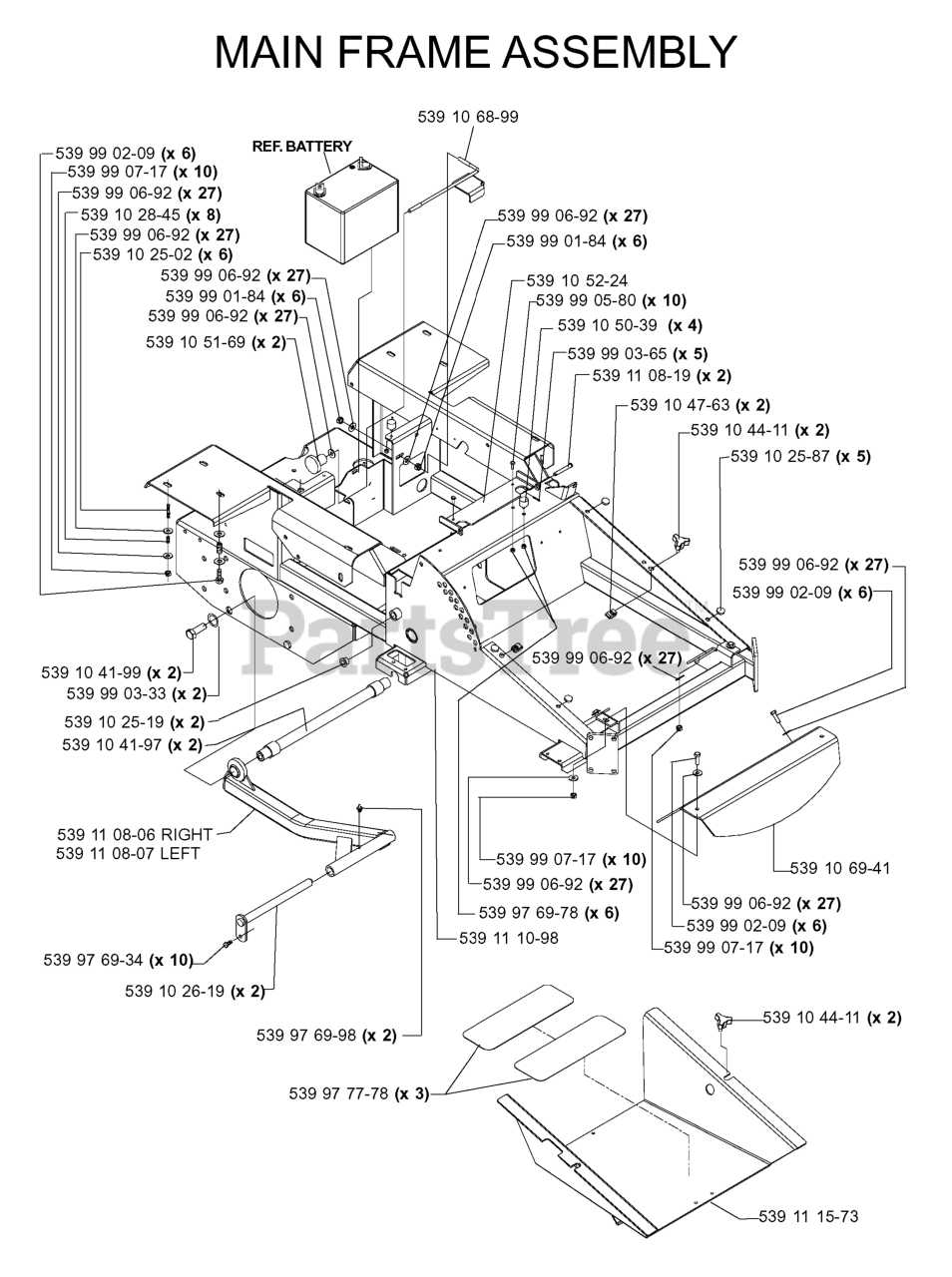

iZ 4817 T (968999255) - Husqvarna 48" Zero-Turn Mower (2005-12) FRAME Parts Diagram

48" Zero-Turn Mower

FRAME Parts Diagram

  • Title

539 99 03-33

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, only 2 left!

0

539 10 69-41

Husqvarna 539106941

FOOTREST ORANGE

$

$

Not available

539 99 01-84

Husqvarna 539990184

NUT 5/16C CENTERLOCK
(Superseded to 596580701)

$3.99

$

In Stock, Qty 14

0

539 99 06-92

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.99

$

In Stock, Qty 20+

0

539 10 41-97

Husqvarna 539104197

STRUT MOUNT WELDMENT

$

$

Not available

539 11 15-73

Husqvarna 539111573

IZ FOOTPLATE W/DECAL

$

$

Not available

539 10 47-63

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 20+

0

539 97 69-78

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

539 10 44-11

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

539 10 28-45

Husqvarna 539102845

SPRING

$3.99

$

In Stock, only 1 left!

0

539 99 02-09

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, Qty 16

0

539 11 08-07

Husqvarna 539110807

STRUT, LT

$

$

Not available

539 10 26-19

Husqvarna 539102619

PIVOT PIN

$59.99

$

In Stock, only 1 left!

0

539 10 25-19

Husqvarna 539102519

BUSHING

$

$

Not available

539 99 05-80

Husqvarna 539990580

HCS 1/4C X 3/4 HCS
(Superseded to 596230901)

$3.99

$

Usually ships in 3-10 days

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 11 08-06

Husqvarna 539110806

STRUT, RT

$

$

Not available

539 11 10-98

Husqvarna 539111098

IZ FRAME W/DECALS

$

$

Not available

539 97 69-34

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

539 99 03-65

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

539 10 41-99

Husqvarna 539104199

HCS 5/8C X 2 GR.5

$3.49

$

Usually ships in 3-10 days

0

539 97 77-78

Husqvarna 539977778

ANTI-SKID PAD

$4.99

$

In Stock, Qty 9

0

539 10 68-99

Husqvarna 539106899

BATTERY HOLD DOWN

$96.99

$

Usually ships in 3-10 days

0

539 10 25-87

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 6

0

539 10 50-39

Husqvarna 539105039

STUD/PLATE MOUNT

$

$

Not available

539 11 08-19

Husqvarna 539110819

CLEVIS PIN 3/8

$

$

Not available

539 97 69-98

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

539 10 51-69

Husqvarna 539105169

KNOB

$14.99

$

Usually ships in 3-10 days

0

539 10 25-02

Husqvarna 539102502

STUD, 5/16C

$

$

Not available

539 10 52-24

Husqvarna 539105224

SEAT BRKT W/DECAL

$

$

Not available

4

Husqvarna 539130359

SEAT BELT, RETRACTABLE
(Superseded to 596322701)

$143.99

$

Usually ships in 3-10 days

0

8

Husqvarna 510283801

BUMPER, RUBBER

$29.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539113226

RP BLT 5/16-18 X 1 THRD FORM D
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 520283101

SPRING, TORSION

$7.49

$

In Stock, only 1 left!

0

1

Husqvarna 501552801

SEAT.ASM.SUSPENSION.TRACK
(Superseded to 579866101)

$1675.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

2

Husqvarna 510039302

PAN, SEAT, BLACK

$136.99

$

Usually ships in 3-10 days

0

12

Husqvarna 525834201

HHFS 3/8-16 X 1.25 GD 5
(Superseded to 525834202)

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 5

0

9

Husqvarna 539913847

NUT 3/8 PALNUT RTNG BLK PHOS

$3.99

$

In Stock, only 2 left!

0

11

Husqvarna 515990601

BOLT, SHOULDER 3/8 X 1.25
(Superseded to 515990602)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 510064101

ROD, SEAT
(Superseded to 510064102)

$11.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539119741

SEAT SWITCH
(Superseded to 532421062)

$15.99

$

In Stock, Qty 11

0

6

Husqvarna 585857402

BRACKET.PNT.LATCH.SEAT.BUMPER

$250.99

$

Usually ships in 3-10 days

0
