iZ 4819 (968999704) - Husqvarna 48" Zero-Turn Mower (2008-12) Engine Plate Parts Diagram

48" Zero-Turn Mower

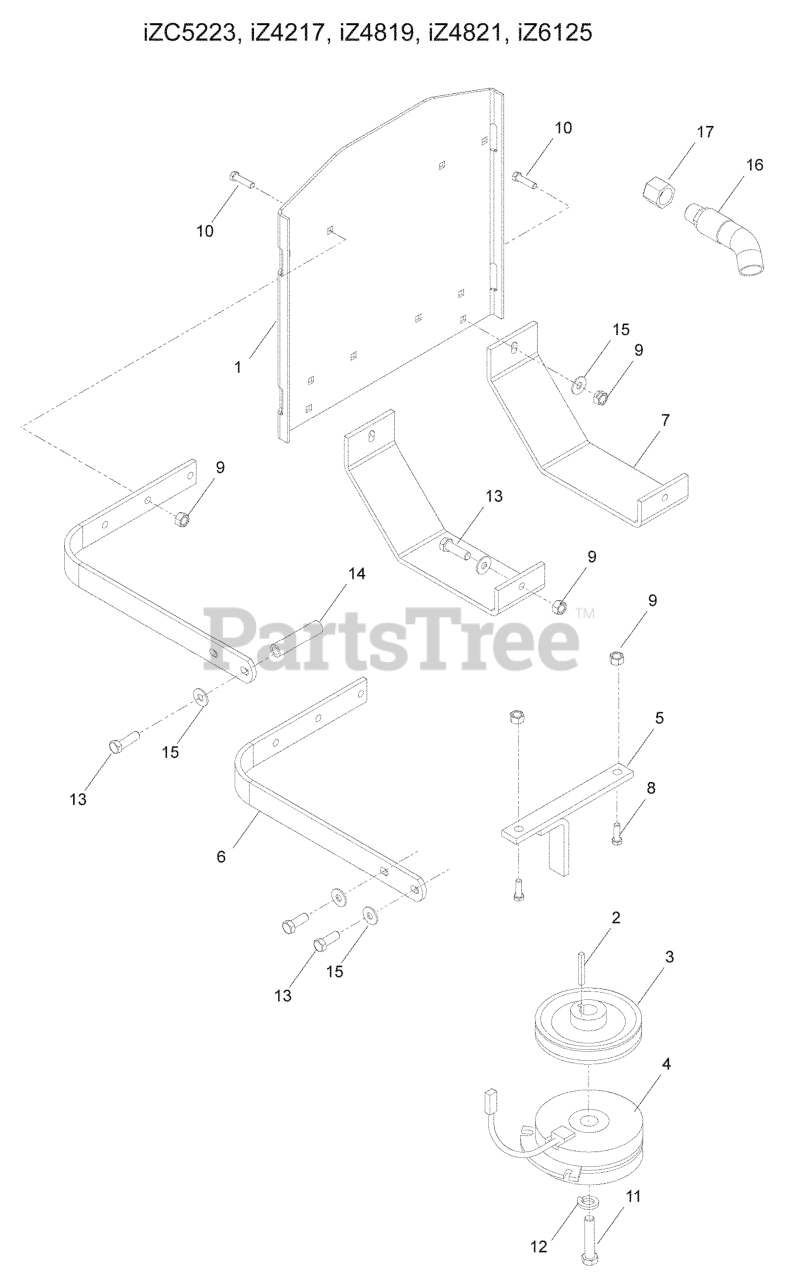

Engine Plate Parts Diagram

  • Title

1

Husqvarna 539106959

ENGINE GUARD

$

$

Not available

2

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

$5.49

$

Usually ships in 3-10 days

0

3

Husqvarna 539106992

PULLEY

$

$

Not available

Husqvarna 539112774

PULLEY

$

$

Not available

4

Husqvarna 539105406

ELECTRIC CLUTCH W/CABLE

$

$

Not available

Husqvarna 539105804

CLUTCH

$

$

Not available

Husqvarna 539106880

CLUTCH-200 FT LB(RPLS 5218-102

$

$

Not available

5

Husqvarna 539106819

CLUTCH TIE DOWN

$

$

Not available

6

Husqvarna 539106961

ENGINE SHROUD BRKT

$

$

Not available

7

Husqvarna 539106957

SKID PLATE

$

$

Not available

8

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$

$

Not available

9

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

10

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 539991120

BOLT 7/16F X 2 1/2

$6.99

$

In Stock, Qty 7

0

12

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

13

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

Husqvarna 539102335

HCS 5/16C X 4

$

$

Not available

14

Husqvarna 539106962

SPACER

$

$

Not available

15

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 539101362

OIL DRAIN HOSE

$34.99

$

In Stock, only 2 left!

0

17

Husqvarna 539101364

DRAIN CAP

$

$

Not available

Husqvarna 539105637

CLUTCH HARNESS

Note: NOT SHOWN

$28.99

$

In Stock, only 2 left!

0

Husqvarna 539104415

KAW PIGTAIL

Note: NOT SHOWN

$

$

Not available

Husqvarna 539104416

KOH PIGTAIL

Note: NOT SHOWN

$

$

Not available

Husqvarna 539108199

EXHAUST GASKET - KAW

Note: NOT SHOWN

$

$

Not available
