iZ 6125 (968999708) - Husqvarna 61" Zero-Turn Mower (2007-09) 61" Cutting Deck Parts Diagram

61" Zero-Turn Mower

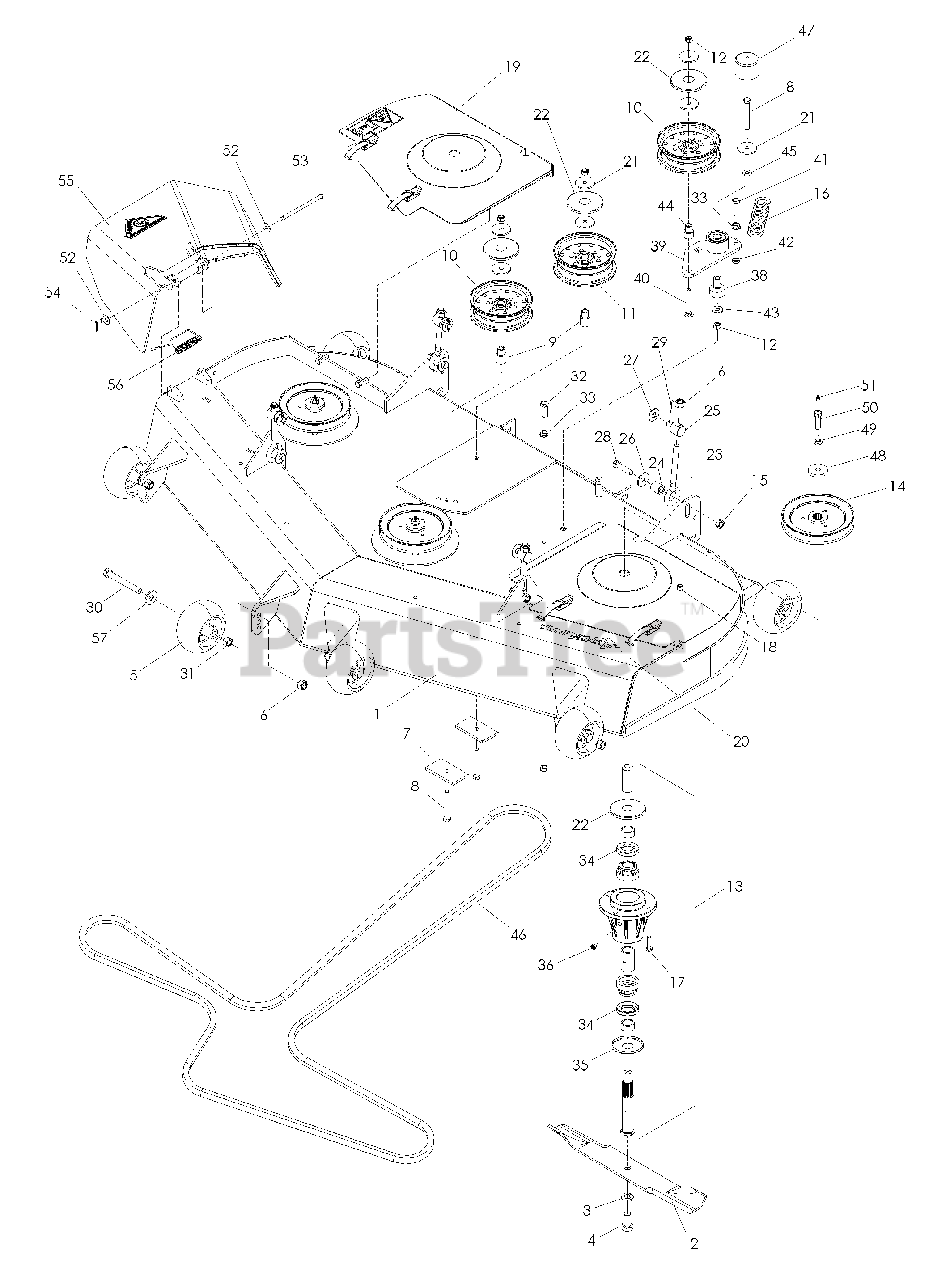

61" Cutting Deck Parts Diagram

  • Title

1

Husqvarna 539111378

DECK W/DECALS

$

$

Not available

2

Husqvarna 539101733

BLADE, 21"

$21.99

$

In Stock, Qty 20+

0

3

Husqvarna 539990333

WASHER 5/8 SPLIT LOCK

$1.49

$

In Stock, Qty 6

0

4

Husqvarna 539103299

HCS 5/8-18 x 1 1/4

$7.49

$

In Stock, only 2 left!

0

5

Husqvarna 539107610

WHEEL, GAUGE
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

6

Husqvarna 539101331

NUT 1/2 -13 HEX NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 539103303

PAD
(Superseded to 539106504)

$

$

Not available

8

Husqvarna 539101341

HCS 3/8-16 x 3

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 539103295

BUSHING, IDLER

$9.99

$

In Stock, Qty 17

0

10

Husqvarna 539103257

PULLEY, IDLER

$74.99

$

In Stock, Qty 11

0

11

Husqvarna 539103258

PULLEY, IDLER

Note: (TALL)

$53.99

$

In Stock, Qty 8

0

12

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539131383

HOUSING ASM
(Superseded to 966956101)

$145.99

$

In Stock, Qty 20+

0

14

Husqvarna 539112125

PULLEY

$53.99

$

In Stock, Qty 8

0

15

Husqvarna 539990839

NUT 7/16-14 HEX CTRLK GR A

$3.99

$

In Stock, only 3 left!

0

16

Husqvarna 539105192

SPRING

$

$

Not available

17

Husqvarna 539990627

HCS 5/16-18 x 1 1/4

$4.99

$

In Stock, Qty 10

0

18

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 539109493

BELT SHIELD w/DECALS, RT

$206.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539109494

BELT SHIELD w/DECALS, LT

$218.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539111561

DECAL, TUNNELRAM

$8.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539111897

WASHER 3/8 SPECIAL

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539108450

DUST CAP, TOP

$4.99

$

In Stock, only 2 left!

0

23

Husqvarna 539119227

EYEBOLT

$18.99

$

In Stock, only 3 left!

0

24

Husqvarna 539114404

SPACER

$

$

Not available

25

Husqvarna 539114405

SWIVEL

$

$

Not available

26

Husqvarna 539112484

WASHER, SPRING

$9.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990550

WASHER 9/16 STD FLT

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539108073

HCS 7/16-14 x 1 3/4

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539109246

PIN, COTTER 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539118862

HHB 1/2-13 x 4
(Superseded to 539108366)

$6.49

$

In Stock, Qty 20+

0

31

Husqvarna 539990258

NUT 1/2-13 HEX

$4.99

$

In Stock, Qty 15

0

32

Husqvarna 539976941

HCS 3/8-16 x 1 1/4

$4.99

$

In Stock, Qty 6

0

33

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539108754

SEAL, SHAFT

$4.99

$

In Stock, Qty 19

0

35

Husqvarna 539108449

DUST CAP, BOTTOM

$4.99

$

In Stock, Qty 17

0

36

Husqvarna 539977326

GREASE POPPET

$13.99

$

In Stock, only 1 left!

0

37

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539130205

BEARING, PIVOT

$4.99

$

In Stock, Qty 5

0

39

Husqvarna 539130391

ARM, IDLER W/BEARINGS

$

$

Not available

40

Husqvarna 539130235

RHSNB 3/8-16 x 2 3/4

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539107042

HCS 3/8-16 x 1 1/2 GR8

$3.99

$

In Stock, Qty 6

0

42

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539990517

WASHER 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, Qty 8

0

45

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 539104336

BELT, DECK
(Superseded to 510201301)

$

$

Not available

47

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 2 left!

0

48

Husqvarna 539106504

WASHER, HEAVY

$

$

Not available

49

Husqvarna 539990247

LOCKWASHER 7/16

$

$

Not available

50

Husqvarna 539112120

HCS 7/16-20 x 1 1/2 GR8

$30.99

$

In Stock, only 1 left!

0

51

Husqvarna 539976998

ZERK, STRAIGHT 1/4-28
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

52

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

53

Husqvarna 539110736

PIN, CLEVIS 5/16 x 5

$

$

Not available

54

Husqvarna 539990365

PIN, COTTER 1/8 x 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

55

Husqvarna 539110734

CHUTE, DISCHARGE

$53.99

$

In Stock, Qty 12

0

56

Husqvarna 539110735

SPRING, TORSION
(Superseded to 596646001)

$3.99

$

In Stock, Qty 16

0

57

Husqvarna 539109544

WASHER 1/2 FLAT

$

$

Currently unavailable
