IZC 5223 (965879201) - Husqvarna 52" Zero-Turn Mower (2008-12) Ignition System Parts Diagram

52" Zero-Turn Mower

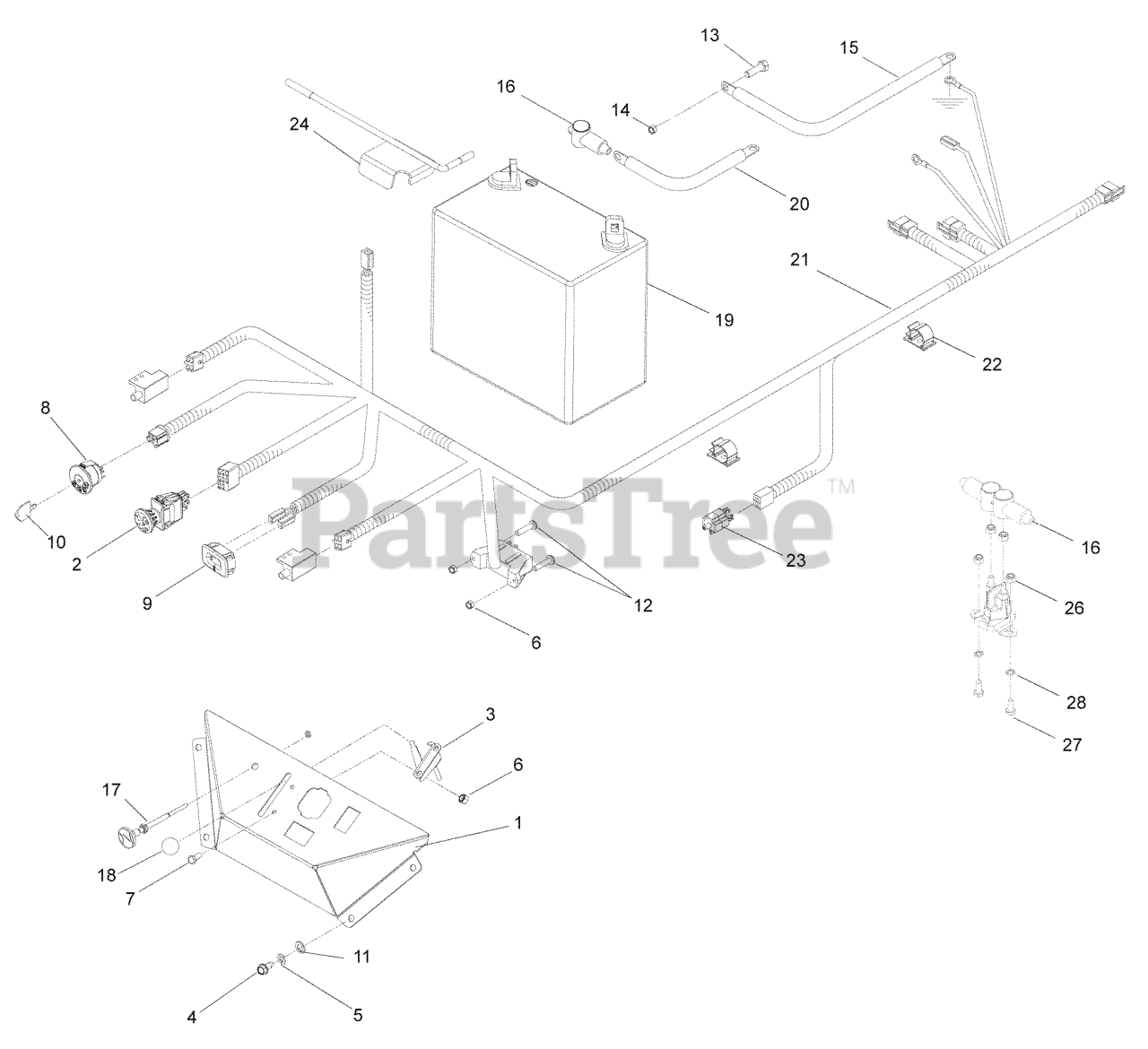

Ignition System Parts Diagram

  • Title

1

Husqvarna 539110953

CONSLE, ORANGE

$

$

Not available

2

Husqvarna 539131627

SWITCH, PTO 10 AMP
(Superseded to 597520401)

$74.99

$

In Stock, Qty 8

0

3

Husqvarna 539103275

THROTTLE CABLE

$31.99

$

In Stock, Qty 5

0

4

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

5

Husqvarna 539990052

LOCKWASHER 1/4"
(Superseded to 596564801)

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 539990411

HCS #10-24 X 1/2

$

$

Not available

8

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$28.99

$

In Stock, Qty 20+

0

9

Husqvarna 539110074

HOUR METER
(Superseded to 576179401)

$31.99

$

In Stock, only 2 left!

0

10

Husqvarna 539107544

KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 20+

0

11

Husqvarna 539990598

WASHER 1/4 FLAT
(Superseded to 597338501)

$17.99

$

In Stock, Qty 20+

0

12

Husqvarna 539102617

SCREW, #1--24 X 1/2 SLOTTED

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 539102758

CABLE-NEGATIVE

$

$

Not available

16

Husqvarna 539102759

INSULATOR

$5.99

$

In Stock, Qty 8

0

Husqvarna 539130208

CONTROL-CHOKE 51"
(Superseded to 539109954)

$

$

Not available

17

Husqvarna 539130207

CONTROL-CHOKE 57"
(Superseded to 539102733)

$62.99

$

In Stock, only 2 left!

0

18

Husqvarna 539105169

KNOB

$13.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

20

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$11.99

$

In Stock, Qty 10

0

21

Husqvarna 539113791

HARNESS, WIRING LZ/IZ

$

$

Not available

22

Husqvarna 539110815

PUSH-MOUNT WIRE CLIP

$3.49

$

In Stock, only 1 left!

0

23

Husqvarna 539113792

SWITCH, BRAKE 3P

$22.99

$

In Stock, Qty 20+

0

24

Husqvarna 539106899

BATTERY HOLD DOWN

$96.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539101714

SOLENOID

$28.99

$

In Stock, Qty 20+

0

26

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

27

Husqvarna 539990072

HCS 1/4C X 5/8
(Superseded to 596582501)

$3.49

$

Usually ships in 3-10 days

0

28

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.49

$

In Stock, only 2 left!

0
