J 2118A A - Jonsered Lawn Tractor (2004) Chassis And Enclosures Parts Diagram

Lawn Tractor

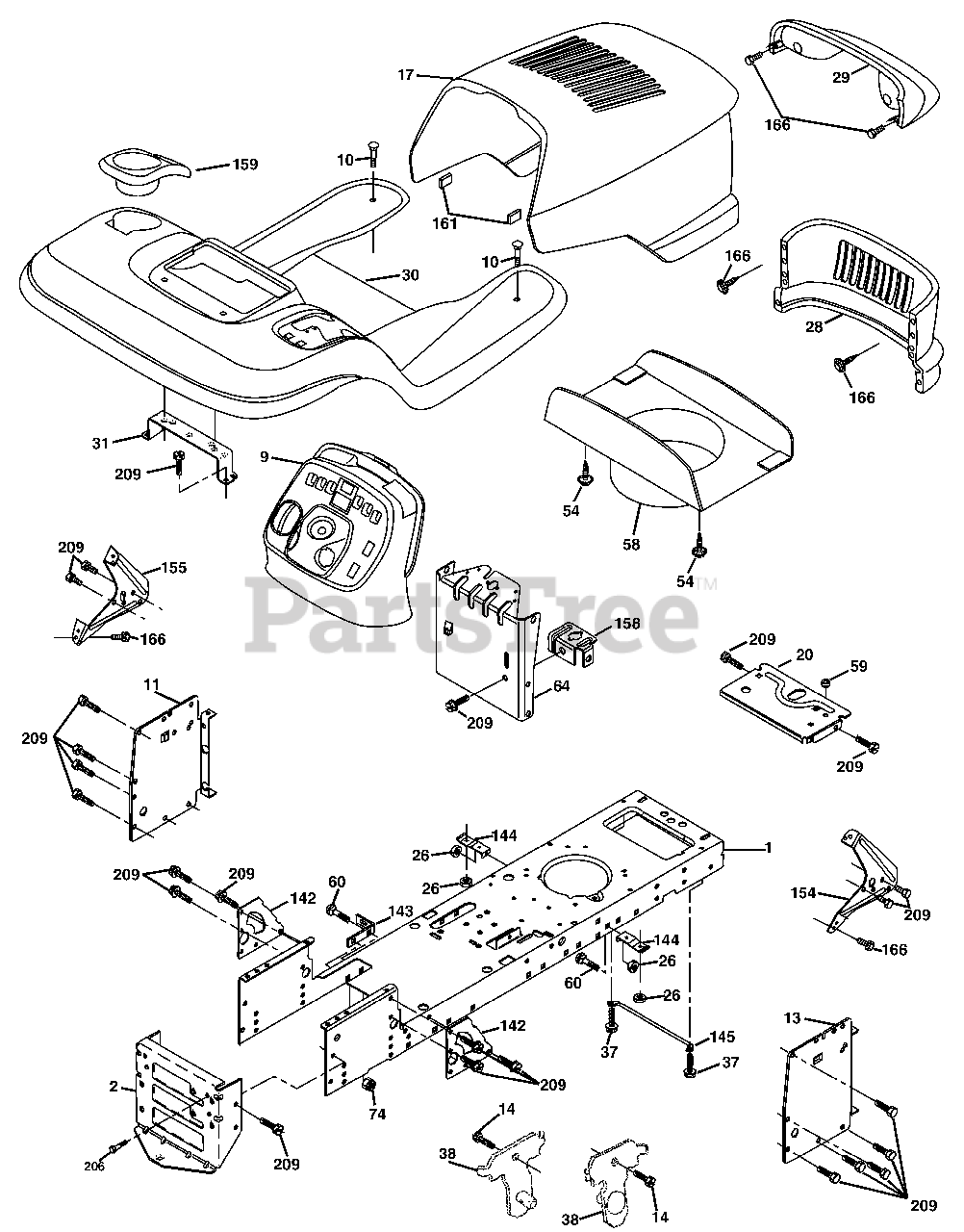

Chassis And Enclosures Parts Diagram

  • Title

1

Electrolux/AYP 532174619

Chassis Wldmt.
(Superseded to 579841401)

$241.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532176554

Drawbar 12 Ga

$40.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532185337

Dash

$

$

Not available

10

Electrolux/AYP 872140608

Bolt Rd Hd Sqnk. 3/8-16 x 1
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532167203

Panel Asm. Dash Lh

$24.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532178298

Panel Dash Rh

$

$

Not available

14

Electrolux/AYP 817490608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532181351

Hood Pnt
(Superseded to 532181273)

$30.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532162026

Plate Mtg Battery
(Superseded to 162026)

$

$

Not available

26

Electrolux/AYP 873800600

Nut Lock Hex w/Ins 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532181352

Grill w/Clips

$

$

Not available

29

Electrolux/AYP 532179761

Lens Grille

$

$

Not available

30

Electrolux/AYP 532181353

Fender /Ftrest Pnt STL
(Superseded to 532442468)

$157.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 532139976

Bracket Fender

$10.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 817490508

Screw Thdrol 5/16-18 x 1/2

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532175710

Bracket Asm. Pvt. Mwr. Rear

$9.99

$

In Stock, only 2 left!

0

54

Electrolux/AYP 532161464

Screw Hex Wshd 8-18 x 7/8

$

$

Not available

58

Electrolux/AYP 532175351

Duct Air

$40.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 532187495

Bushing Snap Split

$6.49

$

In Stock, only 2 left!

0

60

Electrolux/AYP 872140606

Bolt Rdhd Sqnk 3/8-16 Unc x 3/4

$

$

Not available

64

Electrolux/AYP 532174997

Dash Lower

$30.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 873680600

Nut, Crownlock 3/8-16 Unc
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

142

Electrolux/AYP 532175702

Plate Reinforcement STLT

$7.49

$

Usually ships in 3-10 days

0

143

Electrolux/AYP 532186689

Bracket Sway Bar

$6.49

$

In Stock, Qty 11

0

144

Electrolux/AYP 532175582

Bracket Footrest STLT

$7.49

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 532156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

Usually ships in 3-10 days

0

154

Electrolux/AYP 532161897

Bracket Dash STL RH

$7.49

$

Usually ships in 3-10 days

0

155

Electrolux/AYP 532161900

Bracket Dash STL LH

$7.49

$

Usually ships in 3-10 days

0

158

Electrolux/AYP 532162037

Bracket Parking Brake
(Superseded to 162037)

$

$

Not available

159

Electrolux/AYP 532181355

Cupholder
(Superseded to 532155123)

$

$

Not available

161

Electrolux/AYP 532164655

Extrusion Bumper

$8.99

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 532171875

Screw HWHD Hi Lo 13-16 x 3/4
(Superseded to 532189747)

$12.99

$

Usually ships in 3-10 days

0

206

Electrolux/AYP 532170165

Bolt Shoulder 5/16-18

$4.99

$

In Stock, Qty 20+

0

209

Electrolux/AYP 817000612

Screw Hexwsh Thdr 3/8-16 x 3/4

$4.99

$

In Stock, Qty 10

0
