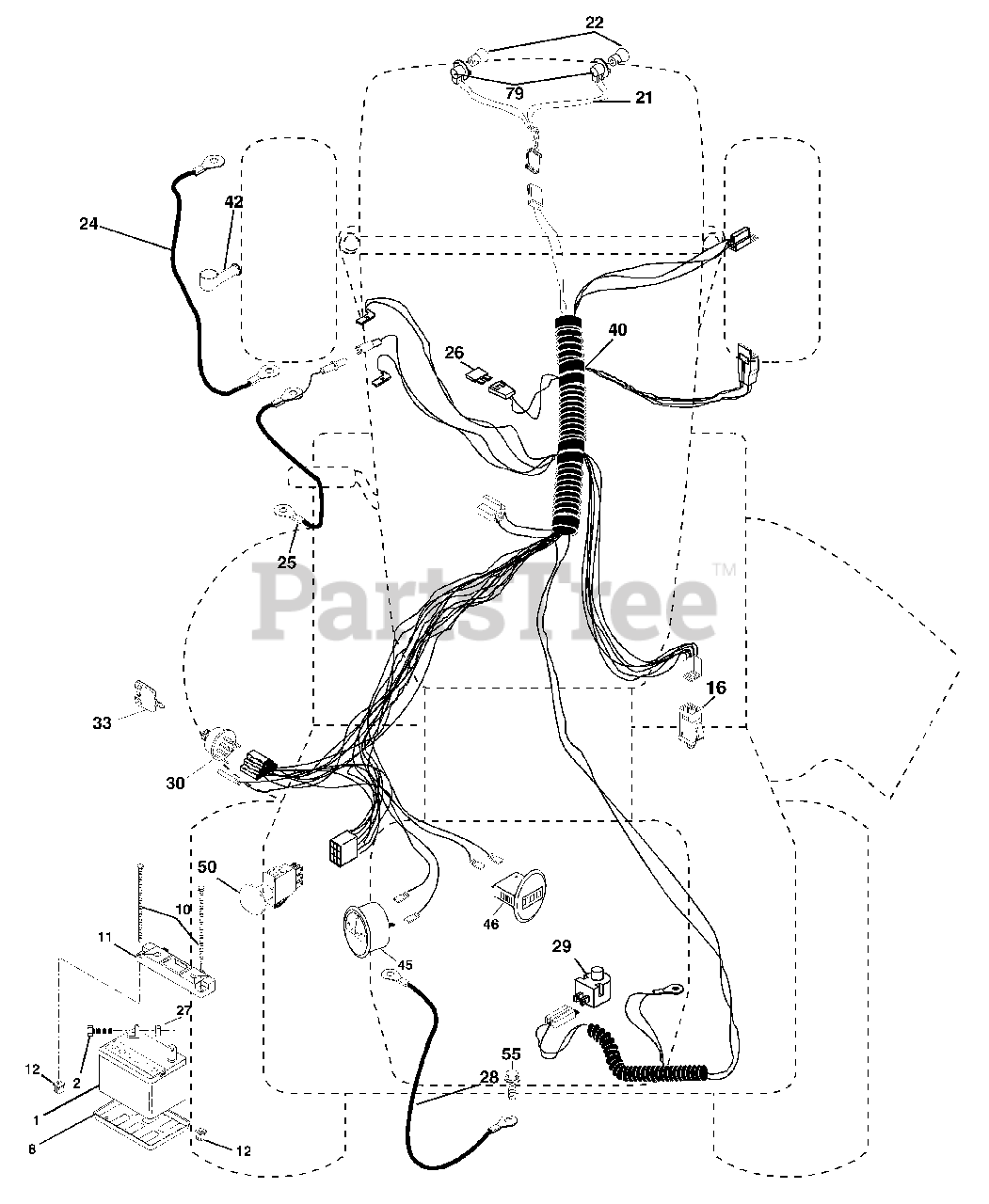

J 2118A A - Jonsered Lawn Tractor (2004) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

Electrolux/AYP 532144927

Battery
(Superseded to 532125603)

$194.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 874760412

Bolt Hex Hd 1/4-20 Unc x 3/4

$7.49

$

In Stock, Qty 5

0

8

Electrolux/AYP 532124886

Tray Battery 7.80 x 5.25
(Superseded to 532007603)

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532145211

Bolt Btr Frt 1/4-20 x 7.5
(Superseded to 532150177)

$

$

Not available

11

Electrolux/AYP 532150109

Holddown Battery Front

$

$

Not available

12

Electrolux/AYP 532145769

Nut Push Nylon 1/4
(Superseded to 532150177)

$

$

Not available

16

Electrolux/AYP 532176138

Switch Interlock Push-In

$15.99

$

In Stock, Qty 5

0

21

Electrolux/AYP 532175688

Harness Asm Light W/4152J

$44.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532004152

Bulb Light #1156

$4.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 532008860

Cable Battery 6 Ga 11"red

$

$

Not available

25

Electrolux/AYP 532186846

Cable Battery 6 Ga W/pos wire

$

$

Not available

26

Electrolux/AYP 532175158

Fuse 20 AMP

$7.49

$

In Stock, Qty 13

0

27

Electrolux/AYP 873510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873640400)

$

$

Not available

28

Electrolux/AYP 532145491

Cable Ground

$10.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 532160784

Switch Plunger Normal Op Olive

$18.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 532175566

Switch Ignition Delta Push-In

$12.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 532140401

Key Ign Molded Generic Delta

$6.49

$

In Stock, Qty 20+

0

40

Electrolux/AYP 532188030

Harness Ign.

$

$

Not available

42

Electrolux/AYP 532154336

Cover Terminal Red

$8.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 532177500

Ammeter Round Delta

$78.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 532177501

Hourmeter Round Delta

$122.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 532174651

Switch PTO
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

55

Electrolux/AYP 817490508

Screw Thdrol 5/16-18 x 1/2

$6.49

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 532175242

Bulb Holder Asm

$18.99

$

In Stock, only 2 left!

0
