J 2118A A - Jonsered Lawn Tractor (2004) Mower Deck Parts Diagram

Lawn Tractor

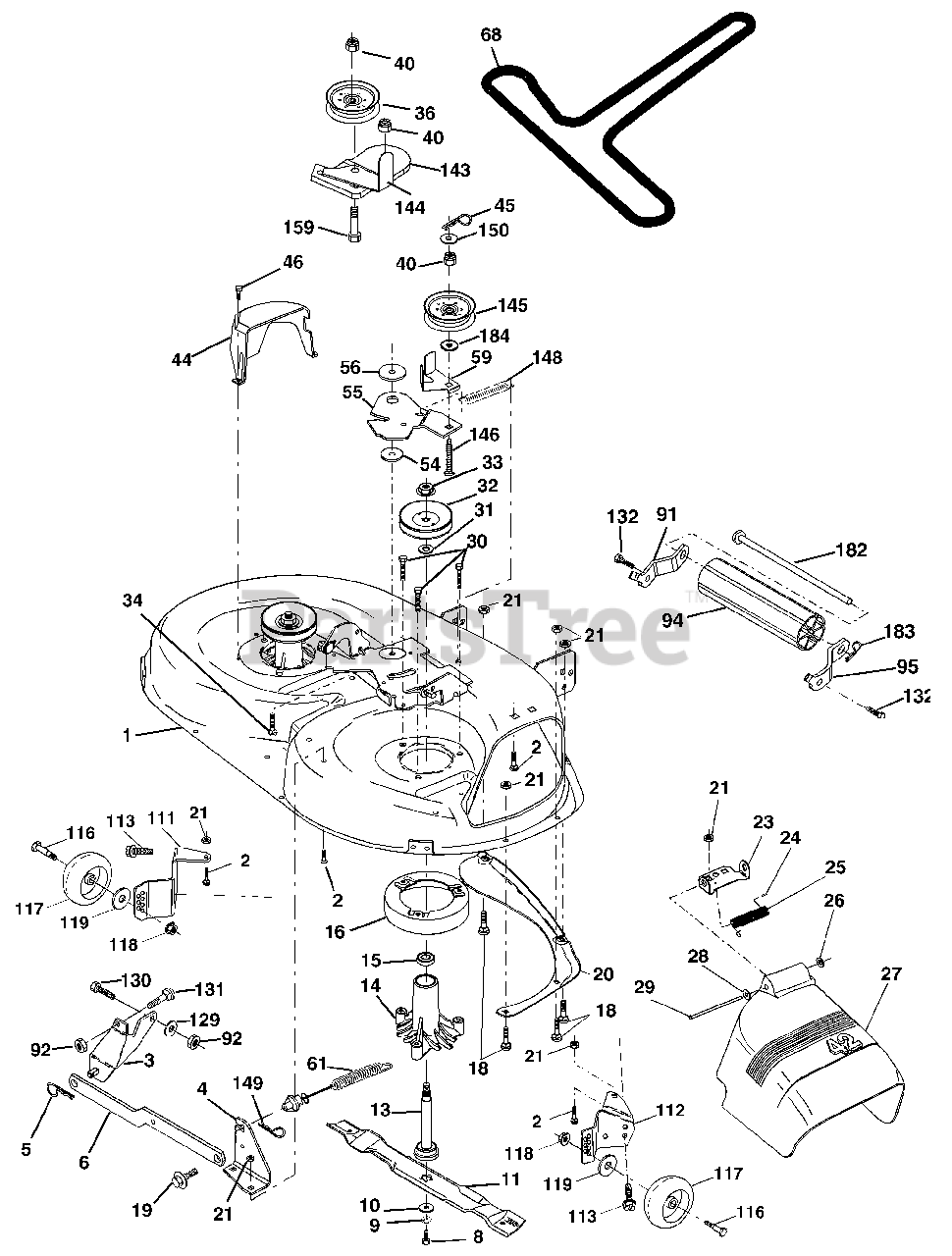

Mower Deck Parts Diagram

  • Title

1

Electrolux/AYP 532165892

Housing Asm Mower 42"94 T-Path
(Superseded to 532176027)

$399.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 872140506

Bolt Rdhd Sqnk 5/16-18 Unc x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 532138017

Bracket Asm Fr Sway Bar 38/42

$12.99

$

In Stock, Qty 14

0

4

Electrolux/AYP 532165460

Bracket Asm Deck 42"sway Bar

$10.99

$

In Stock, only 2 left!

0

5

Electrolux/AYP 532124670

Retainer Spring
(Superseded to 532085902)

$

$

Not available

6

Electrolux/AYP 532178024

Bar Sway Deck

$8.99

$

In Stock, Qty 5

0

8

Electrolux/AYP 532850857

Bolt 3/8-24 x 1 25 Gr8 Patched

$3.99

$

In Stock, Qty 17

0

9

Electrolux/AYP 810030600

Washer Lock Hvy 3/8 Unplated
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532140296

Washer Hard Blade Mower Vented

$6.49

$

In Stock, Qty 6

0

11

Electrolux/AYP 532138971

Blade Mower High Lift"

$14.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 532137645

Shaft Asm W/lower Bearing
(Superseded to 532137646)

$26.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 532128774

Housing Mandrel Vented(machd)

$31.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 532110485

Bearing Ball Mandrel

$10.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 532174493

Stripper Mower

$7.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 872140505

Bolt Carr 5/16-18 x 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 532132827

Bolt Shoulder

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532159770

Baffle Vortex 42

$

$

Not available

21

Electrolux/AYP 873680500

Nut Crown Lock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Electrolux/AYP 532177563

Bracket Deflector Mower 42"

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 532105304

Cap Sleeve 80x 112 Blk Mower

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 532123713

Spring Torsion Deflector 2 52

$5.99

$

In Stock, Qty 10

0

26

Electrolux/AYP 532110452

Nut Push Phos & Oil

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 532171859

Shield Deflector
(Superseded to 532130968)

$34.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 819111016

Washer 11/32 x 5/8 x 16 Ga
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532131491

Rod Hinge 42"6 75 Wlg
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 532173984

Screw Thd Rolling Hex
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

31

Electrolux/AYP 532187690

Washer Spacer

$3.49

$

In Stock, Qty 20+

0

32

Electrolux/AYP 532153535

Pulley Mandrel
(Superseded to 532173436)

$10.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 532178342

Nut 9/16top Lock Flng Cntr
(Superseded to 532400234)

$3.49

$

In Stock, Qty 20+

0

34

Electrolux/AYP 872110612

Bolt Carr. Sh 3/8-16 x 1-1/2 Gr.5

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532131494

Pulley Idler Flat 3 060
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 873900600

Nut Lock Flange 3/8-16 Unc
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

44

Electrolux/AYP 532140088

Guard Mandrel LH Black

$26.99

$

In Stock, Qty 13

0

45

Electrolux/AYP 532124788

Retainer Spring
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

46

Electrolux/AYP 532137729

Screw Thdrol 1/4-20 x 5/8

$4.99

$

In Stock, Qty 20+

0

54

Electrolux/AYP 532178515

Washer Hardened

$6.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 532155046

Arm Idler 42" mower LT/YT

$15.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 532165723

Spacer Retainer Mower

$6.49

$

In Stock, Qty 13

0

59

Electrolux/AYP 532141043

Guard, Belt

$

$

Not available

61

Electrolux/AYP 532174882

Spring Ext. Elect

$26.99

$

In Stock, only 3 left!

0

68

Electrolux/AYP 532180260

V-Belt Mower

$

$

Not available

91

Electrolux/AYP 532180532

Bracket Asm Noseroller LH

$4.99

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 873800600

Nut Lock Hex w/ins. 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 532132264

Roller Nose 38 & 42

$44.99

$

In Stock, Qty 20+

0

95

Electrolux/AYP 532180533

Bracket Asm Noseroller RH

$6.49

$

Usually ships in 3-10 days

0

111

Electrolux/AYP 532179292

Bracket Gauge Wheel Lh
(Superseded to 532181040)

$31.99

$

Usually ships in 3-10 days

0

112

Electrolux/AYP 532179293

Bracket Gauge Wheel Rh
(Superseded to 532181040)

$31.99

$

Usually ships in 3-10 days

0

113

Electrolux/AYP 817000510

Bolt 5/16-18 Hex Whs. Hd. LCKSERR

$7.49

$

In Stock, Qty 20+

0

116

Electrolux/AYP 532124842

Bolt Shoulder
(Superseded to 596434402)

$3.99

$

In Stock, Qty 20+

0

117

Electrolux/AYP 532165746

Wheel Gauge

$

$

Not available

118

Electrolux/AYP 873930600

Nut Centerlock 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Electrolux/AYP 819121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

129

Electrolux/AYP 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

130

Electrolux/AYP 874780616

Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

131

Electrolux/AYP 872140608

Bolt Rdhd Sqnk 3/8-16 Unc x1
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

132

Electrolux/AYP 817000612

Screw 3/8-16 x .75

$4.99

$

In Stock, Qty 7

0

143

Electrolux/AYP 532157109

Bracket Arm Idler

$6.49

$

Usually ships in 3-10 days

0

144

Electrolux/AYP 532158634

Keeper Belt
(Superseded to 532173441)

$9.99

$

In Stock, only 3 left!

0

145

Electrolux/AYP 532165888

Pulley Idler Flat
(Superseded to 532173437)

$22.99

$

In Stock, Qty 20+

0

146

Electrolux/AYP 532171977

Bolt Carriage Idler
(Superseded to 532173443)

$7.49

$

In Stock, Qty 17

0

148

Electrolux/AYP 532169022

Spring Return Idler

$4.99

$

In Stock, Qty 20+

0

149

Electrolux/AYP 532165898

Retainer Spring Yellow

$7.49

$

In Stock, Qty 6

0

150

Electrolux/AYP 819091216

Washer 9/32 x 3/4 x 16
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

159

Electrolux/AYP 872140614

Bolt RDHD SQN 3/8-16 x 1-3/4
(Superseded to 596987501)

$3.99

$

In Stock, only 4 left!

0

182

Electrolux/AYP 532179126

Rod Roller Nose Standard

$

$

Not available

183

Electrolux/AYP 532163552

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

184

Electrolux/AYP 819131410

Washer 13/32 x 7/8 x 10 Ga.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 532181962

Replacement Deck, Complete
(Superseded to 583118701)

$667.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 532130794

Mandrel Assembly

Note: (Includes Housing, Shaft and Shaft Hardware Only - Pulley Not Included)

$44.99

$

In Stock, Qty 20+

0
