J 2118A A - Jonsered Lawn Tractor (2004) Seat Assembly Parts Diagram

Lawn Tractor

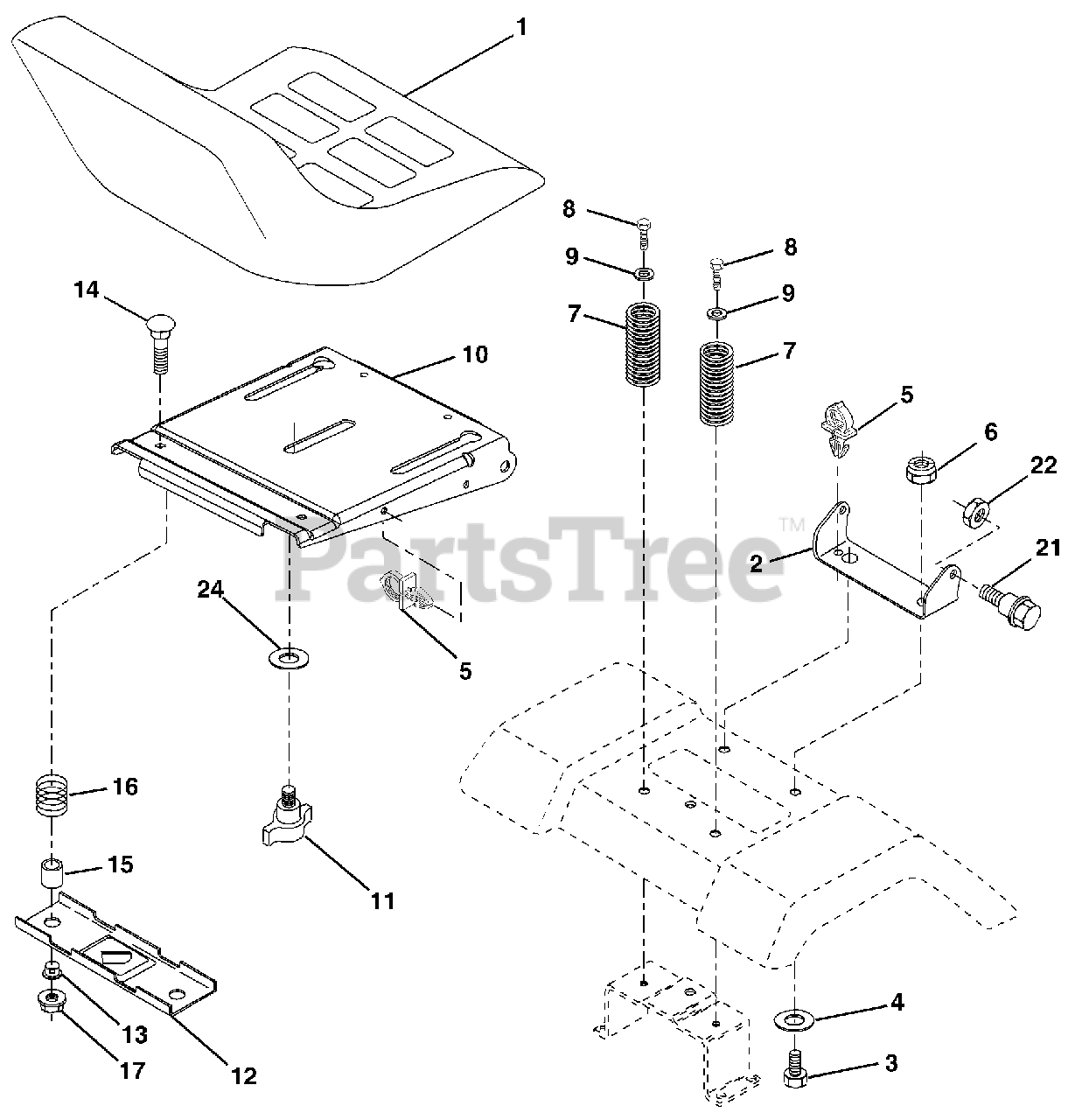

Seat Assembly Parts Diagram

  • Title

1

Electrolux/AYP 532188706

Seat
(Superseded to 583171701)

$

$

Not available

2

Electrolux/AYP 532180166

Bracket Pivot

$10.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 871110616

Bolt Hex 3/8-16unc x 1

$4.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 819131610

Washer 13/32 x 1 x 10 Ga

$6.49

$

In Stock, Qty 7

0

5

Electrolux/AYP 532145006

Clip Push-In Hinged

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 873800600

Nut Lock Hex w/Ins. 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532124181

Spring Seat Cprsn 2 250 Blk Zi
(Superseded to 587613301)

$6.49

$

In Stock, Qty 20+

0

8

Electrolux/AYP 817000616

Screw 3/8-16 x 1.5 SMGML

$7.49

$

In Stock, Qty 13

0

9

Electrolux/AYP 819131614

Washer 13/32 x 1 x 14 Ga
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532180186

Pan Seat

$

$

Not available

11

Electrolux/AYP 532166369

Knob Seat Adj Wingnut

$10.99

$

In Stock, only 3 left!

0

12

Electrolux/AYP 532121246

Bracket Mounting Switch
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

13

Electrolux/AYP 532121248

Bushing Snap Blk Nyl 50 Id

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 872050412

Bolt Rdhd Sht Nk 1/4-20 x 1-1/2

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532121249

Spacer Split 28x 88 Zinc

$6.49

$

In Stock, Qty 5

0

16

Electrolux/AYP 532123740

Spring Cprsn 1 310 Blk Pnt

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532123976

Nut Lock 1/4 Lge Flg Gr 5 Zinc
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

21

Electrolux/AYP 532171852

Bolt Shoulder 5/16-18 Unc-2A
(Superseded to 587907801)

$4.99

$

In Stock, Qty 14

0

22

Electrolux/AYP 873800500

Nut Lock 5/16-18
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 819171912

Washer 17/32 x 1-3/16 x 12 Ga

$7.49

$

In Stock, only 2 left!

0
