J 5000 DR - Electrolux/AYP Tiller ENGINE, INTERNAL PARTS Parts Diagram

Tiller

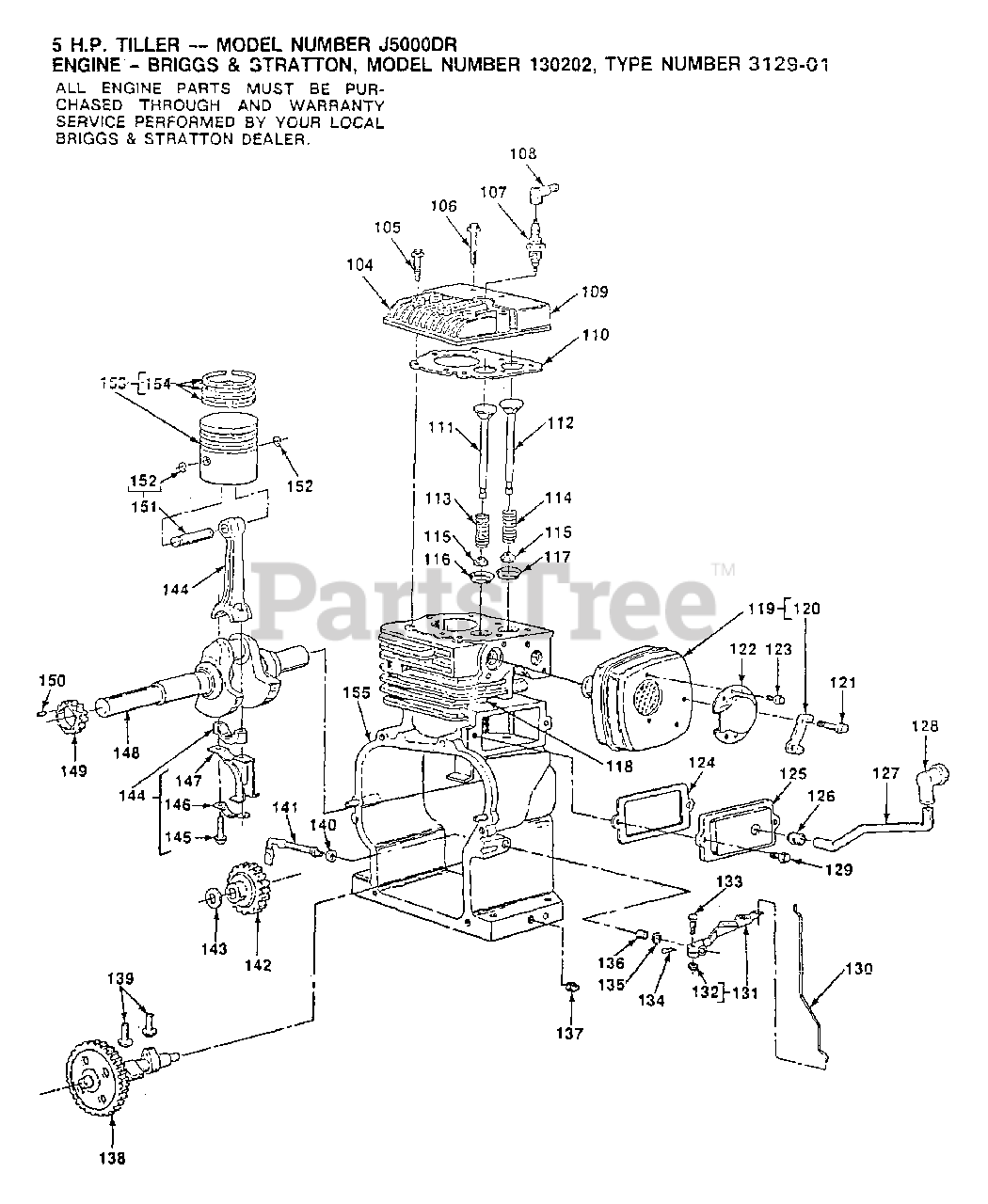

ENGINE, INTERNAL PARTS Parts Diagram

  • Title

104

Briggs & Stratton 211542

HEAD, CYLINDER
(Superseded to 691716)

$

$

Not available

105

Briggs & Stratton 93368

SCREW
(Superseded to 691640)

$3.49

$

In Stock, only 2 left!

0

106

Briggs & Stratton 93369

SCREW, CYLINDER HEAD 2-15/32"
(Superseded to 691659)

$3.49

$

Usually ships in 2-12 days

0

107

Briggs & Stratton 293918

PLUG, SPARK RESISTOR
(Superseded to 796112S)

$4.49

$

In Stock, Qty 14

0

108

Briggs & Stratton 66538

ELBOW, SPARK PLUG
(Superseded to 66538S)

$3.99

$

In Stock, Qty 8

0

109

Briggs & Stratton 221512

COVER, CYLINDER HEAD
(Superseded to 694514)

$28.99

$

In Stock, only 1 left!

0

110

Briggs & Stratton 270383

GASKET, CYLINDER HEAD
(Superseded to 272157S)

$6.49

$

In Stock, Qty 12

0

111

Briggs & Stratton 211119

VALVE, EXHAUST
(Superseded to 211119S)

$

$

Not available

112

Briggs & Stratton 261044

VALVE, INTAKE
(Superseded to 261044S)

$

$

Not available

113

Briggs & Stratton 26478

SPRING, EXHAUST VALVE
(Superseded to 692180)

$6.49

$

In Stock, only 3 left!

0

114

Briggs & Stratton 260552

SPRING, INTAKE VALVE
(Superseded to 690520)

$5.49

$

In Stock, Qty 7

0

115

Briggs & Stratton 93312

RETAINER, VALVE SPRING
(Superseded to 692194)

$5.99

$

In Stock, Qty 17

0

116

Briggs & Stratton 211172

SEAT, INTAKE VALVE, STANDARD
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 211787

SEAT, INTAKE VALVE, STANDARD
(Superseded to 691705)

$9.99

$

In Stock, only 3 left!

0

118

Briggs & Stratton 231348

GUIDE, EXHAUST VALVE

$31.99

$

Usually ships in 2-12 days

0

119

Briggs & Stratton 393615

MUFFLER, EXHAUST
(Superseded to 494585)

$23.99

$

In Stock, Qty 8

0

120

Briggs & Stratton 222263

LOCK, SCREW
(Superseded to 691729)

$5.99

$

In Stock, only 3 left!

0

121

Briggs & Stratton 93935

SCREW, HEX HEAD
(Superseded to 691413)

$5.99

$

In Stock, only 2 left!

0

122

Briggs & Stratton 393757

DEFLECTOR, EXHAUST, SIDE OUTLET
(Superseded to 796956)

$10.99

$

In Stock, only 1 left!

0

123

Briggs & Stratton 93705

SUB= 69485
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

124

Briggs & Stratton 27549

GASKET, VALVE COVER
(Superseded to 27549S)

$3.99

$

In Stock, only 1 left!

0

125

Briggs & Stratton 294178

BREATHER, VALVE CHAMBER
(Superseded to 791779)

$15.99

$

In Stock, only 4 left!

0

126

Briggs & Stratton 66578

GROMMET, BREATHER TUBE
(Superseded to 692187)

$4.49

$

In Stock, Qty 20+

0

127

Briggs & Stratton 231526

TUBE, BREATHER
(Superseded to 231550)

$

$

Not available

128

Briggs & Stratton 67838

GROMMET, BREATHER TUBE
(Superseded to 692189)

$4.49

$

In Stock, Qty 20+

0

129

Briggs & Stratton 93394

SCREW, SEMS, BREATHER, MOUNTING
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

130

Electrolux/AYP 262238

LINK, GOVERNOR

$

$

Not available

131

Briggs & Stratton 490374

LEVER ASSEMBLY, GOVERNOR
(Superseded to 690653)

$16.99

$

Usually ships in 2-12 days

0

132

Briggs & Stratton 231082

NUT, HEX
(Superseded to 691251)

$3.49

$

In Stock, Qty 10

0

133

Briggs & Stratton 92613

BOLT, GOVERNOR LEVER

$

$

Not available

134

Briggs & Stratton 93306

COTTER, HAIR PIN
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

135

Briggs & Stratton 93307

RETAINER, E-RING

$5.99

$

In Stock, only 4 left!

0

136

Briggs & Stratton 231079

BUSHING, GOVERNOR CRANK
(Superseded to 690508)

$9.49

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 93448

PLUG, PIPE, HEX SOCKET
(Superseded to 691682)

$5.49

$

Usually ships in 2-12 days

0

138

Briggs & Stratton 212733

GEAR, CAM
(Superseded to 691164)

$59.99

$

Usually ships in 2-12 days

0

139

Briggs & Stratton 260642

TAPPET, VALVE
(Superseded to 690509)

$5.99

$

Usually ships in 2-12 days

0

140

Briggs & Stratton 222450

WASHER, GOVERNOR LEVER
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

141

Briggs & Stratton 231077

CRANK, GOVERNOR
(Superseded to 692016)

$

$

Not available

142

Briggs & Stratton 391737

GEAR, GOVERMOR

$38.99

$

In Stock, only 4 left!

0

143

Briggs & Stratton 221551

WASHER THRUST
(Superseded to 691724)

$5.49

$

In Stock, only 1 left!

0

144

Briggs & Stratton 299430

ROD ASSEMBLY, CONNECTING

$40.99

$

In Stock, only 1 left!

0

145

Briggs & Stratton 92296

LOCK, CONNECTING ROD SCREW
(Superseded to 691664)

$4.49

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 221876

LOCK, CONNECTING ROD SCREW

$4.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 221890

DIPPER, CONNECTING ROD
(Superseded to 691759)

$8.49

$

In Stock, only 1 left!

0

148

Briggs & Stratton 397103

CRANKSHAFT

$131.99

$

Usually ships in 2-12 days

0

149

Briggs & Stratton 261696

GEAR, TIMING

$52.99

$

Usually ships in 2-12 days

0

150

Briggs & Stratton 230978

CRANKSHAFT GEAR PIN
(Superseded to 499047)

$4.99

$

Usually ships in 2-12 days

0

151

Briggs & Stratton 298909

PIN ASSY, PISTON, STD

$8.99

$

In Stock, only 4 left!

0

152

Briggs & Stratton 26026

LOCK, PISTON PIN
(Superseded to 691588)

$4.99

$

Usually ships in 2-12 days

0

153

Briggs & Stratton 298904

PISTON ASSEMBLY, STANDARD
(Superseded to 793214)

$

$

Not available

154

Briggs & Stratton 298982

RING SET, PISTON, STANDARD

$48.99

$

In Stock, Qty 11

0

155

Briggs & Stratton 395990

CYLINDER ASSEMBLY
(Superseded to 497144)

$537.99

$

Usually ships in 2-12 days

0
