J 5000 ER - Electrolux/AYP Tiller ENGINE, REAR VIEW Parts Diagram

Tiller

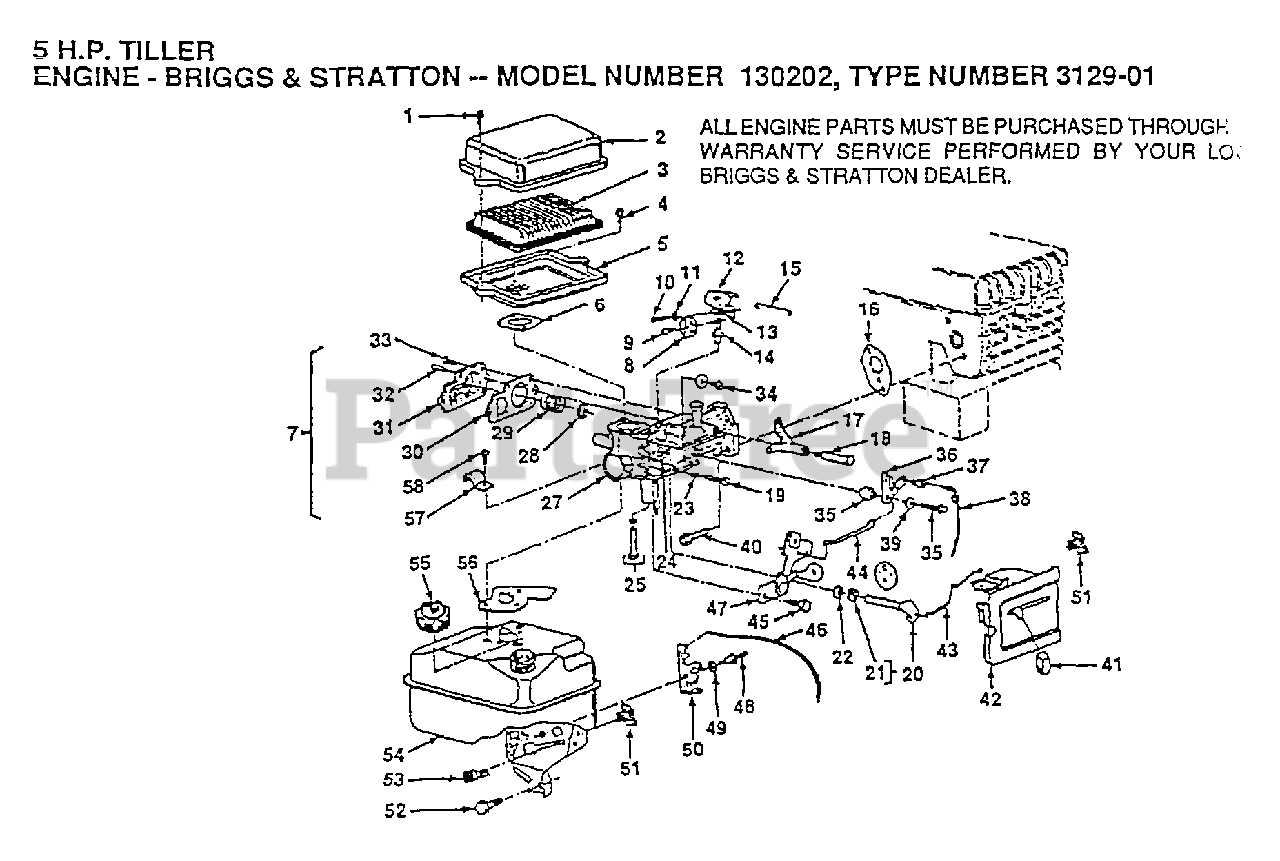

ENGINE, REAR VIEW Parts Diagram

  • Title

1

Briggs & Stratton 490073

SCREW, COVER MOUNTING
(Superseded to 694515)

$5.99

$

In Stock, Qty 12

0

2

Briggs & Stratton 223765

COVER, AIR CLEANER
(Superseded to 791082)

$20.99

$

In Stock, only 4 left!

0

3

Briggs & Stratton 399959

FILTER, AIR
(Superseded to 491588S)

$6.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 94018

SCREW, AIR CLEANER
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

5

Briggs & Stratton 490074

BASE, AIR CLEANER
(Superseded to 494279)

$

$

Not available

6

Briggs & Stratton 271935

GASKET, AIR CLEANER MOUNTING
(Superseded to 271935S)

$6.49

$

In Stock, Qty 17

0

7

Briggs & Stratton 492611

CARBURERTOR ASSEMBLY
(Superseded to 498298)

$149.99

$

In Stock, Qty 6

0

8

Briggs & Stratton 223793

THROTTLE, CARBURETOR
(Superseded to 691743)

$7.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 93499

SCREW
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 93527

SCREW, MACHINE, ROUND HEAD
(Superseded to 691624)

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 260575

SPRING, THROTTLE ADJUSTMENT
(Superseded to 691783)

$7.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 490048

SHAFT AND LEVER THROTTLE
(Superseded to 692325)

$16.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 271853

WASHER, THROTTLE SHAFT, FOAM
(Superseded to 692279)

$3.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 398970

SEAL, THROTTLE SHAFT
(Superseded to 692279)

$3.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 262270

LINK, THROTTLE
(Superseded to 691812)

$8.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 271936

GASKET, INTAKE ELBOW MOUNTING
(Superseded to 273113S)

$4.49

$

In Stock, Qty 11

0

17

Briggs & Stratton 280720

BELL CRANK
(Superseded to 691906)

$7.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 231520

SCREW, SHOULDER
(Superseded to 691776)

$

$

Not available

19

Briggs & Stratton 231533

VALVE, NEEDLE
(Superseded to 691777)

$17.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 491177

VALVE AND SHAFT GROUP, CHOKE

$10.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 270382

WASHER, FOAM
(Superseded to 691869)

$3.99

$

In Stock, only 3 left!

0

22

Briggs & Stratton 221839

WASHER, BRASS
(Superseded to 690401)

$3.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton 26336

SPRING, NEEDLE VALVE
(Superseded to 691592)

$3.99

$

In Stock, Qty 6

0

24

Briggs & Stratton 223789

PLUG, WELCH
(Superseded to 691742)

$4.99

$

In Stock, only 3 left!

0

25

Briggs & Stratton 391813

FUEL PIPE AND CLIP ASSEMBLY

$

$

Not available

27

Briggs & Stratton 220352

PLUG, WELCH
(Superseded to 691718)

$13.99

$

In Stock, only 4 left!

0

28

Briggs & Stratton 221377

CAP, SPRING
(Superseded to 690766)

$4.99

$

In Stock, Qty 18

0

29

Briggs & Stratton 262328

SPRING, FUEL PUMP DIAPHRAGM
(Superseded to 691823)

$4.99

$

In Stock, Qty 13

0

30

Briggs & Stratton 270026

DIAPHRAGM

$3.99

$

In Stock, Qty 20+

0

31

Briggs & Stratton 210959

COVER, DIAPHRAGM
(Superseded to 691713)

$10.99

$

In Stock, Qty 5

0

32

Briggs & Stratton 93265

PIN, DIAPHRAGM COVER
(Superseded to 690296)

$6.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 93141

SCREW, DIAPHRAGM
(Superseded to 691619)

$6.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 93543

SCREW, SEMS, HEX HEAD
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 490589

SCREW AND COLLAR

$

$

Not available

36

Briggs & Stratton 223813

CRANK, BELL
(Superseded to 691744)

$8.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 490507

RETAINER, LINK

$

$

Not available

38

Briggs & Stratton 262279

ROD, SPEED CONTROL
(Superseded to 691813)

$9.49

$

In Stock, only 4 left!

0

39

Briggs & Stratton 220982

WASHER
(Superseded to 691721)

$7.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93357

SCREW, SEMS, CARBURETOR MOUNTING
(Superseded to 690953)

$5.99

$

In Stock, Qty 19

0

41

Briggs & Stratton 280715

KNOB, CONTROL
(Superseded to 692295)

$9.49

$

In Stock, only 3 left!

0

42

Briggs & Stratton 490649

PANEL, CONTROL

$67.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 262359

LINK, CHOKE
(Superseded to 691824)

$9.99

$

In Stock, Qty 5

0

44

Briggs & Stratton 262470

LINK, CONTROL
(Superseded to 691274)

$

$

Not available

45

Briggs & Stratton 93572

SCREW
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

46

Briggs & Stratton 262282

SPRING, GOVERNOR
(Superseded to 690376)

$11.99

$

In Stock, only 4 left!

0

47

Briggs & Stratton 491577

LEVER, BRACKET ASSEMBLY
(Superseded to 691414)

$9.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 93491

RIVET, GOVERNOR CONTROL LEVER MOUNTING

$1.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 222962

BUSHING, GOVERNOR LEVER, FLAT

$1.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 223455

LEVER, GOVERNOR CONTROL

$2.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 396847

SWITCH, STOP
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 94409

SCREW, SEMS, TANK BRACKET MNT.
(Superseded to 691685)

$3.99

$

In Stock, Qty 6

0

53

Briggs & Stratton 280321

RACK, GEAR CONTROL
(Superseded to 691900)

$5.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 490554

TAMK ASSEMBLY, FUEL
(Superseded to 694315)

$

$

Not available

55

Briggs & Stratton 490075

CAP, FUEL TANK
(Superseded to 494559)

$15.99

$

In Stock, Qty 7

0

56

Briggs & Stratton 271928

GASKET, FUEL TANK MOUNTING
(Superseded to 272996)

$4.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 223786

CLAMP BREATHER TUBE
(Superseded to 691741)

$4.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 94094

SCREW, SEMS, FUEL TANK MOUNTING
(Superseded to 692200)

$

$

Not available
