J 5000 ER - Electrolux/AYP Tiller ENGINE, RIGHT SIDE Parts Diagram

Tiller

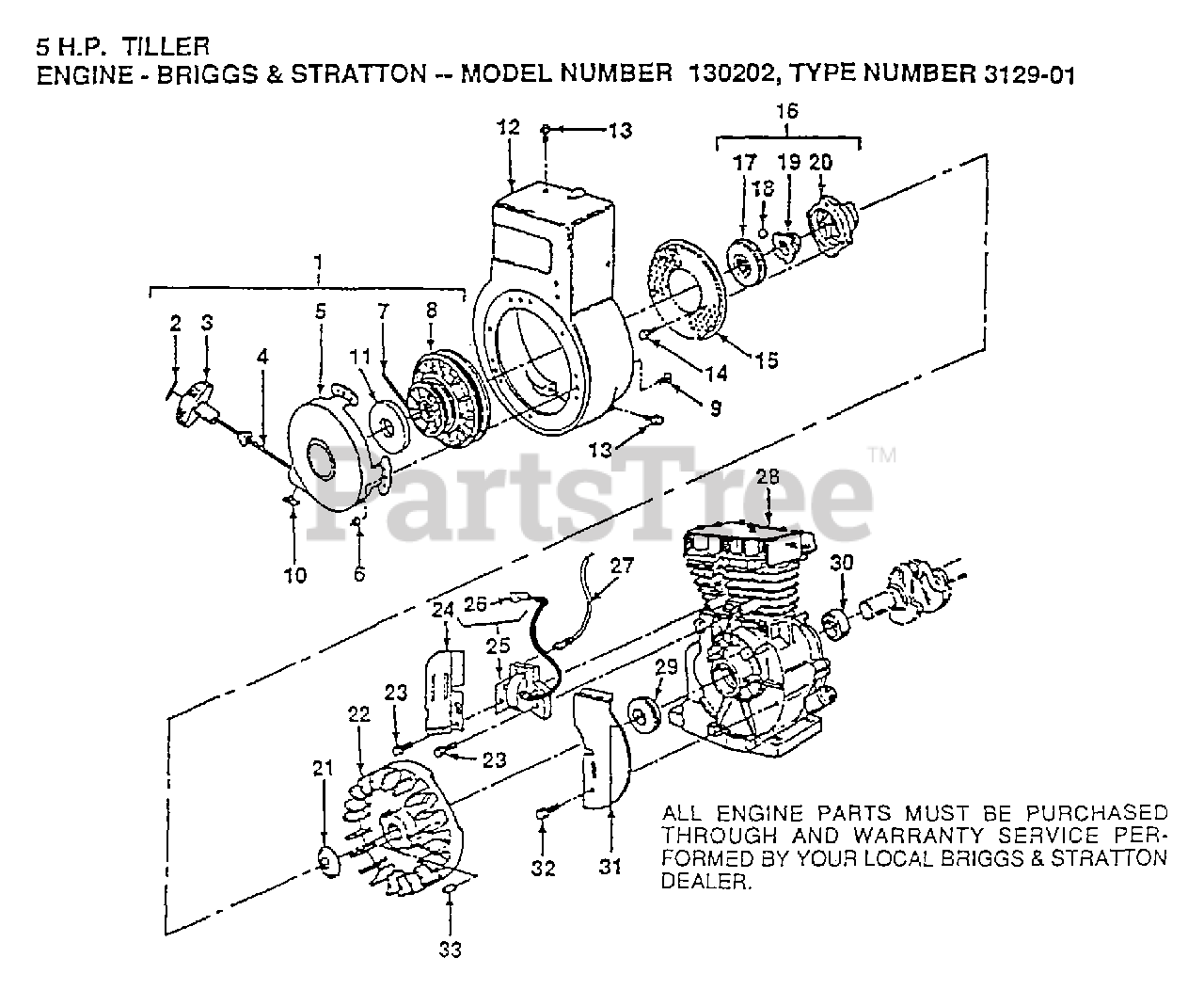

ENGINE, RIGHT SIDE Parts Diagram

  • Title

1

Briggs & Stratton 390463

STARTER, ASSEMBLY, REWIND

$139.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 230228

PIN, STARTER GRIP
(Superseded to 230228S)

$3.99

$

In Stock, Qty 5

0

3

Briggs & Stratton 66728

GRIP, STARTER ROPE
(Superseded to 490652)

$5.49

$

In Stock, Qty 8

0

4

Briggs & Stratton 66884

ROPE, REWIND STARTER
(Superseded to 692188)

$8.49

$

In Stock, only 2 left!

0

5

Briggs & Stratton 299431

HOUSING, REWIND STARTER

$

$

Not available

6

Briggs & Stratton 92987

NUT, HEX
(Superseded to 690800)

$3.99

$

In Stock, only 3 left!

0

7

Briggs & Stratton 490179

SPRING, REWIND STARTER

$14.99

$

In Stock, Qty 10

0

8

Briggs & Stratton 295871

PULLEY, REWIND STARTER

$14.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 94128

SCREW, HEX HEAD
(Superseded to 690837)

$3.49

$

In Stock, Qty 18

0

10

Briggs & Stratton 222598

ANCHOR, SPRING
(Superseded to 691734)

$4.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 490817

SPACER

$9.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 490169

HOUSING, BLOWER

$

$

Not available

13

Briggs & Stratton 93158

SCREW, SEMS
(Superseded to 692198)

$5.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 93490

SCREW, HEX HEAD
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

15

Briggs & Stratton 221923

SCREEN, STARTER PULLEY

$29.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 399671

CLUTCH ASSEMBLY, REWIND STARTER

$34.99

$

In Stock, Qty 10

0

17

Briggs & Stratton 394506

WASHER, CLUTCH RETAINER
(Superseded to 691359)

$9.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 63770

BALL, CLUTCH
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 298799

RATCHET, REWIND STARTER
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 394897

HOUSING, STARTER CLUTCH

$36.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 220865

WASHER, SPRING
(Superseded to 690582)

$4.49

$

In Stock, only 2 left!

0

22

Briggs & Stratton 297229

FLYWHEEL, MAGNETO

$

$

Not available

23

Briggs & Stratton 93414

SCREW, ARMATURE MOUNTING
(Superseded to 691621)

$7.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 223886

GUIDE, AIR
(Superseded to 691745)

$11.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 397358

ARMATURE GROUP

$53.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 221798

TERMINAL, IGNITION CABLE
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

27

Briggs & Stratton 398808

WIRE, GROUND

$11.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 395990

CYLINDER ASSEMBLY
(Superseded to 497144)

$537.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 299819

SEAL, OIL
(Superseded to 299819S)

$5.49

$

In Stock, Qty 20+

0

30

Briggs & Stratton 297565

BUSHING, CYLINDER

$20.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222443

GUARD, FLYWHEEL
(Superseded to 691732)

$9.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 93705

SUB= 69485
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

33

Briggs & Stratton 222698

KEY, FLYWHEEL
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0
