J (994950) - Simplicity Two-Wheeled Tractor, 2hp Mower Group - 18" Parts Diagram

Two-Wheeled Tractor, 2hp

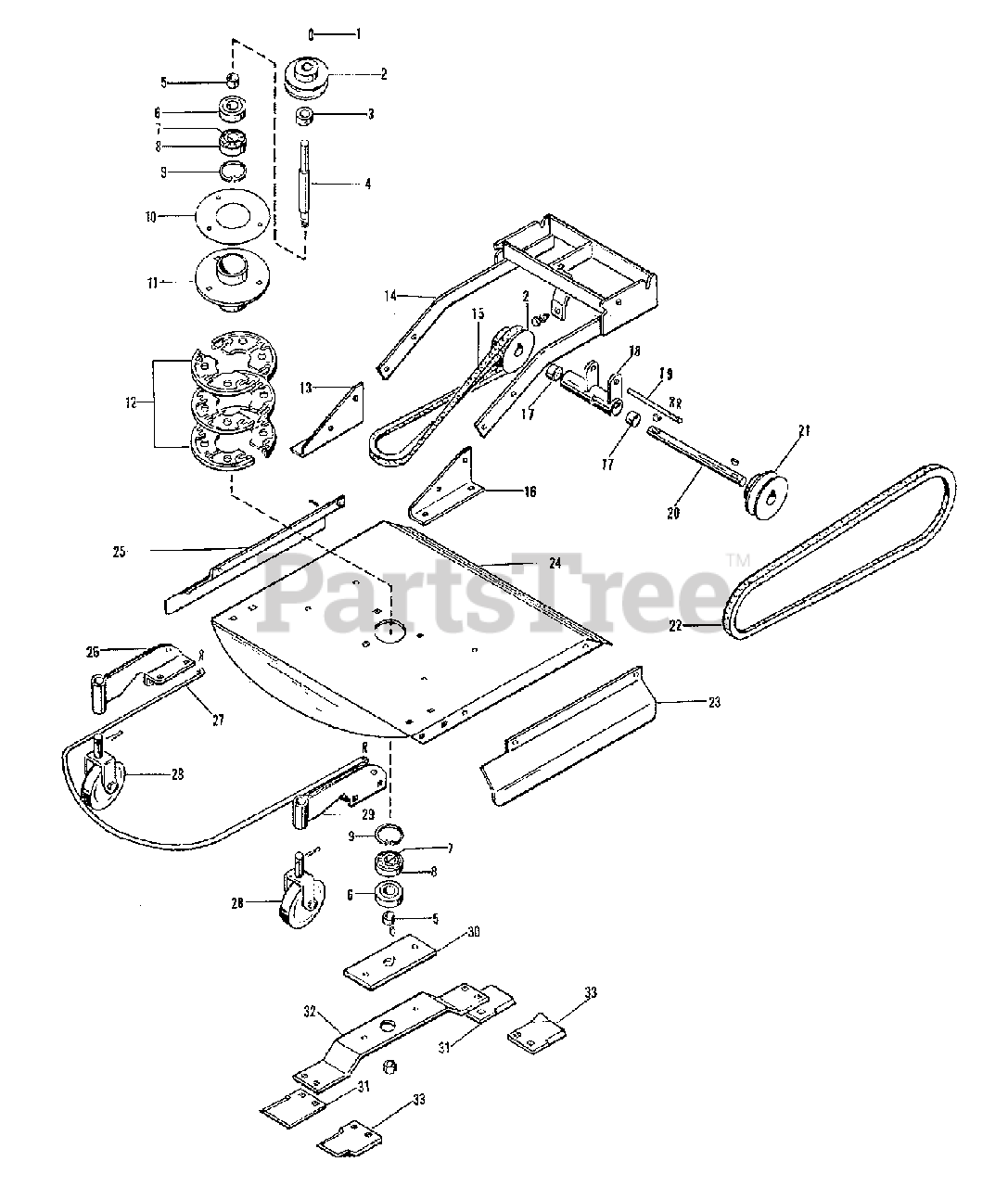

Mower Group - 18" Parts Diagram

  • Title

1

Simplicity 8131025

KEY, Arbor Pulley

$

$

Not available

2

Simplicity 8131023

PULLEY, Arbor

$

$

Not available

3

Simplicity 8131027

COLLAR, Set

$

$

Not available

4

Simplicity 8131019

ARBOR

$

$

Not available

5

Simplicity 8131028

SPACER, Arbor

$

$

Not available

6

Simplicity 8061118

SEAL, Oil

$

$

Not available

7

Simplicity 8061094

ROLLER BEARING, Cone

$

$

Not available

8

Simplicity 8061095

ROLLER BEARING, Cup

$

$

Not available

9

Simplicity 8061052

RING, Retaining

$

$

Not available

10

Simplicity 8131020

WASHER, Spacer Clamp

$

$

Not available

11

Simplicity 8132503

BEARING HOUSING, Arbor

$

$

Not available

12

Simplicity 8131018

SPACER, Height Gage

$

$

Not available

13

Simplicity 8131026

BRACKET, R.H. Push Arm

$

$

Not available

14

Simplicity 8133501

ARM ASSEMBLY, Push

$

$

Not available

15

Simplicity 8161120

BELT, "V" 27"

$

$

Not available

16

Simplicity 8131017

BRACKET, L.H. Push Arm

$

$

Not available

17

Simplicity 8191048

BEARING, Needle

$

$

Not available

18

Simplicity 8131501

TIGHTENER ASSEMBLY, Belt

$

$

Not available

19

Simplicity 8131009

PIN, Pivot

$

$

Not available

20

Simplicity 8131012

SHAFT, Belt Tightener

$

$

Not available

21

Simplicity 8131024

PULLEY, Drive

$

$

Not available

22

Simplicity 8161207

BELT, "V" 36"

$

$

Not available

23

Simplicity 8132005

GUARD, L.H. Cutter

$

$

Not available

24

Simplicity 8133001

DECK

$

$

Not available

25

Simplicity 8132004

GUARD, R.H. Cutter

$

$

Not available

26

Simplicity 8132101

BRACKET, R.H. Caster Wheel

$

$

Not available

27

Simplicity 8133002

GUARD, Front

$

$

Not available

28

Simplicity 8131502

WHEEL ASSEMBLY, Caster

$

$

Not available

29

Simplicity 8132502

BRACKET, L.H. Caster Wheel

$

$

Not available

30

Simplicity 8131007

FLANGE, Arbor

$

$

Not available

31

Simplicity 8131008

BLADE, Cutter

$

$

Not available

32

Simplicity 8132001

BAR, Cutter Blade

$

$

Not available

33

Simplicity 8131026

BLADE, Lift Cutter

$

$

Not available
