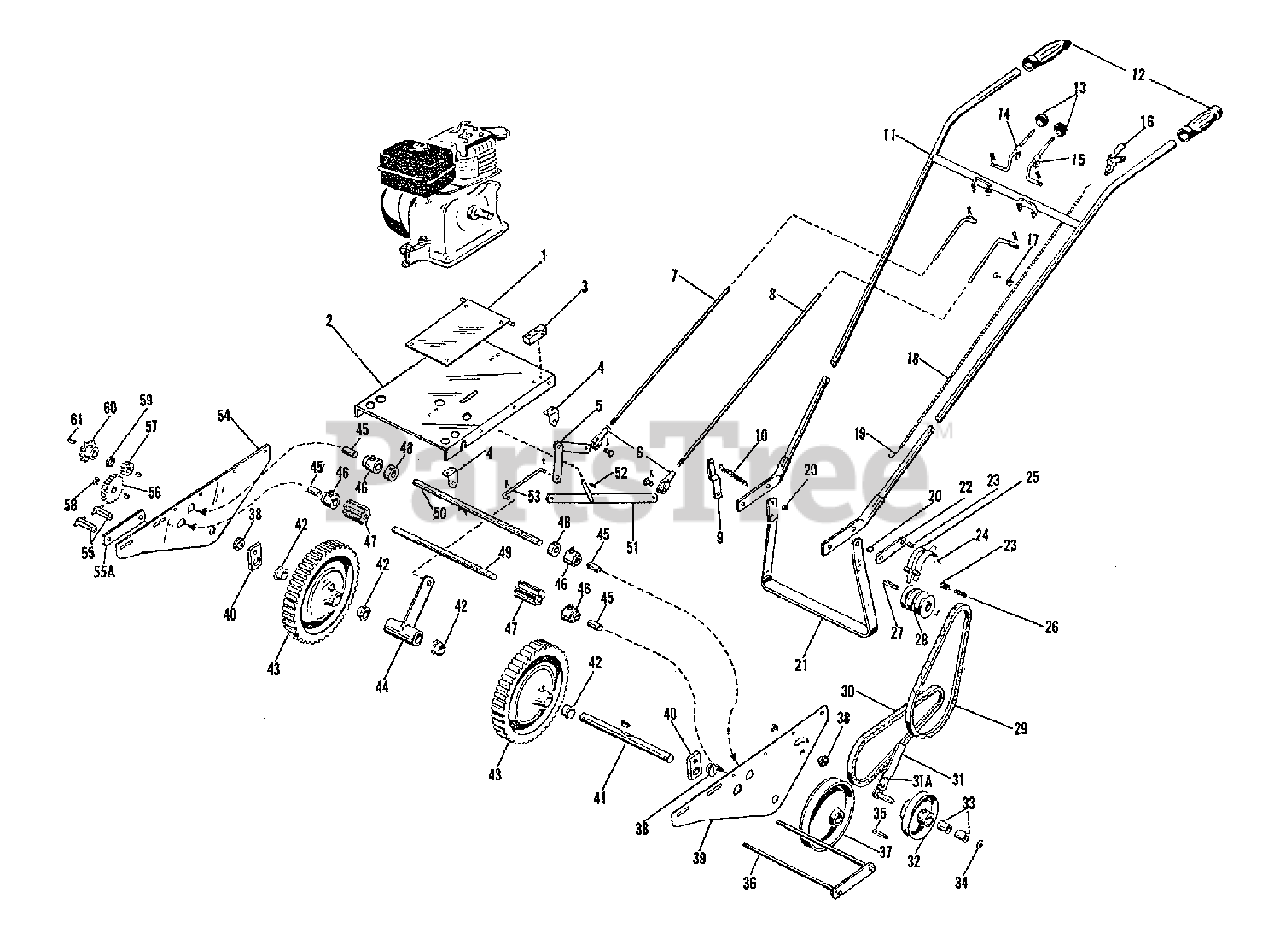

J (994950) - Simplicity Two-Wheeled Tractor, 2hp Tractor Group Parts Diagram

Two-Wheeled Tractor, 2hp

Tractor Group Parts Diagram

  • Title

1

Simplicity 8111503

PLATE ASSEMBLY, Engine Pivot

$

$

Not available

2

Simplicity 8112001

DECK, Frame

$

$

Not available

3

Simplicity 8111016

PIVOT BLOCK, Engine

$

$

Not available

4

Simplicity 8111027

BRACKET, Lever

$

$

Not available

5

Simplicity 8111505

LEVER ASSEMBLY, Wheel Clutch

$

$

Not available

6

Simplicity 1729254SM

END ASSEMBLY, Rod
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

7

Simplicity 8111046

CLUTCH ROD, Wheel

$

$

Not available

8

Simplicity 8111045

CLUTCH ROD, Engine

$

$

Not available

9

Simplicity 8111048

SPRING CLIP, Stand

$

$

Not available

10

Simplicity 8111047

SPRING, Stand

$

$

Not available

11

Simplicity 8113501

HANDLE ASSEMBLY

$

$

Not available

12

Simplicity 8161088

GRIP, Rubber

$

$

Not available

13

Simplicity 1729255SM

BALL, Clutch Lever

$12.99

$

In Stock, only 1 left!

0

14

Simplicity 8021509

LEVER ASSEMBLY, Clutch

$

$

Not available

15

Simplicity 8111504

LEVER ASSEMBLY, Engine Clutch

$

$

Not available

16

Simplicity 2805850SM

LEVER ASSEMBLY, Throttle Control

$2.49

$

Usually ships in 2-12 days

0

17

Simplicity 8251071

CLAMP, Cable

$

$

Not available

18

Simplicity 8111038

CABLE, Throttle

$

$

Not available

19

Simplicity 8111039

WIRE, Throttle

$

$

Not available

20

Simplicity 8111049

BUSHING, Stand

$

$

Not available

21

Simplicity 8112002

STAND

$

$

Not available

22

Simplicity 8111042

HOLDER, Belt Stop

$

$

Not available

23

Simplicity 1729278SM

SPRING

$2.49

$

Usually ships in 2-12 days

0

24

Simplicity 8111507

STOP ASSEMBLY, L.H. Belt

$

$

Not available

25

Simplicity 8111508

STOP ASSEMBLY, R.H. Belt

$

$

Not available

26

Simplicity 8111043

HOLDER STUD, Belt Stop

$

$

Not available

27

Simplicity 8111033

KEY, Engine Pulley

$

$

Not available

28

Simplicity 8111005

PULLEY, Engine

$

$

Not available

29

Simplicity 8116164

BELT, "V" 31"

$

$

Not available

30

Simplicity 8161120

BELT, "V" 27"

$

$

Not available

31

Simplicity 8111506

LEVER ASSEMBLY, Countershaft

$

$

Not available

31A

Simplicity 8111032

BUSHING

$

$

Not available

32

Simplicity 8112502

PULLEY ASSEMBLY, Countershaft

$

$

Not available

33

Simplicity 8111030

BEARING, Countershaft Pulley

$

$

Not available

34

Simplicity 2860164SM

WASHER

$4.49

$

In Stock, Qty 5

0

35

Simplicity 2805850SM

KEY, Pulley

$2.49

$

Usually ships in 2-12 days

0

36

Simplicity 8112501

CLAMP ASSEMBLY, Hitch

$

$

Not available

37

Simplicity 8111013

PULLEY, Drive

$

$

Not available

38

Simplicity 8111031

BUSHING, Flange

$

$

Not available

39

Simplicity 8113004

SIDE MEMBER, L.H. Frame

$

$

Not available

40

Simplicity 8111009

CRANK, Axle

$

$

Not available

41

Simplicity 8111008

AXLE

$

$

Not available

42

Simplicity 8111050

BUSHING, Wheel

$

$

Not available

43

Simplicity 8111511

WHEEL & TIRE ASSEMBLY

$

$

Not available

44

Simplicity 8111502

LEVER ASSEMBLY, Axle

$

$

Not available

45

Simplicity 8321012

BUSHING, Bearing

$

$

Not available

46

Simplicity 8321012

BEARING

$

$

Not available

47

Simplicity 8111006

DRIVE PINION, Wheel

$

$

Not available

48

Simplicity 1729258SM

COLLAR, Set
(Superseded to 5010477YP)

$8.99

$

Usually ships in 2-12 days

0

49

Simplicity 8111007

SHAFT, Wheel Pinion

$

$

Not available

50

Simplicity 8111015

SHAFT, Pulley

$

$

Not available

51

Simplicity 8111504

LEVER ASSEMBLY, Engine Lift

$

$

Not available

52

Simplicity 8111024

PIN, Engine Lift Rod

$

$

Not available

53

Simplicity 8111026

LEVER LINK, Wheel Clutch

$

$

Not available

54

Simplicity 8113003

SIDE MEMBER, R.H. Frame

$

$

Not available

55

Simplicity 8111019

NUT, Hitch Clamp

$

$

Not available

55A

Simplicity 8111020

BAR, Hitch Clamp

$

$

Not available

56

Simplicity 8111004

GEAR

$

$

Not available

57

Simplicity 8111003

PINION

$

$

Not available

58

Simplicity 1729260SM

RING, Retaining

$5.99

$

Usually ships in 2-12 days

0

59

Simplicity 8111014

SPACER, Sprocket

$

$

Not available

60

Simplicity 8111002

SPROCKET

$

$

Not available

61

Simplicity 8111037

KEY, Sprocket

$

$

Not available
