J (994950) - Simplicity Two-Wheeled Tractor, 2hp Weed Cutter Group Parts Diagram

Two-Wheeled Tractor, 2hp

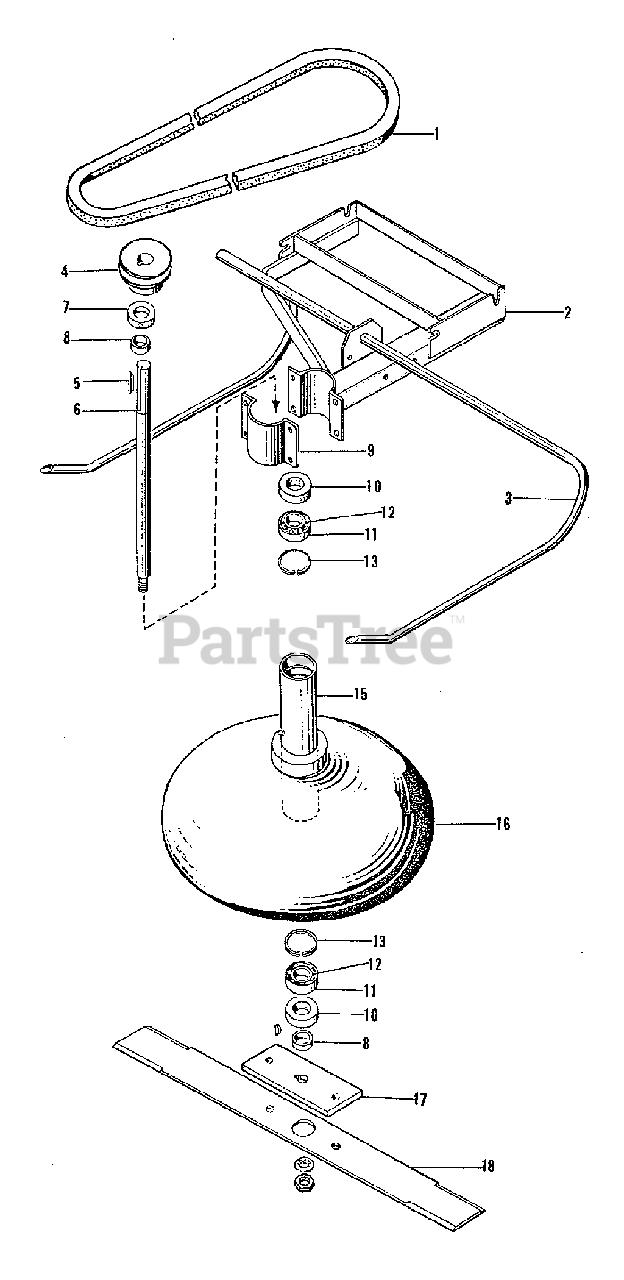

Weed Cutter Group Parts Diagram

  • Title

1

Simplicity 8141008

BELT, Drive, 49"

$

$

Not available

2

Simplicity 8143501

PUSH ARM ASSEMBLY

$

$

Not available

3

Simplicity 8143502

GAGE SHOE ASSSEMBLY

$

$

Not available

4

Simplicity 8141007

PULLEY, Arbor

$

$

Not available

5

Simplicity 8131025

KEY, Arbor Pulley

$

$

Not available

6

Simplicity 8142002

ARBOR

$

$

Not available

7

Simplicity 8131027

COLLAR, Set

$

$

Not available

8

Simplicity 8131028

SPACER, Arbor

$

$

Not available

9

Simplicity 8141001

CLAMP, Bearing Housing

$

$

Not available

10

Simplicity 8061118

SEAL, Oil

$

$

Not available

11

Simplicity 8061095

ROLLER BEARING, Cup

$

$

Not available

12

Simplicity 8061094

ROLLER BEARING, Cone

$

$

Not available

13

Simplicity 8061052

RING, Retaining

$

$

Not available

15

Simplicity 8142003

BEARING HOUSING, Arbor

$

$

Not available

16

Simplicity 8142501

DEFLECTOR ASSEMBLY

$

$

Not available

17

Simplicity 8131007

FLANGE, Arbor

$

$

Not available

18

Simplicity 8142004

BLADE, Knife

$

$

Not available

-

FITTING, Grease, #1641 Alemite

$

$

Not available

-

FITTING, Grease, #1792 Alemite

$

$

Not available

-

NUT, Hex, Full, R.H.

$

$

Not available
