J208F24 (960820036-00) - Jonsered Front-Tine Cultivator (2015-11) BELT GUARD PULLEY Parts Diagram

Front-Tine Cultivator

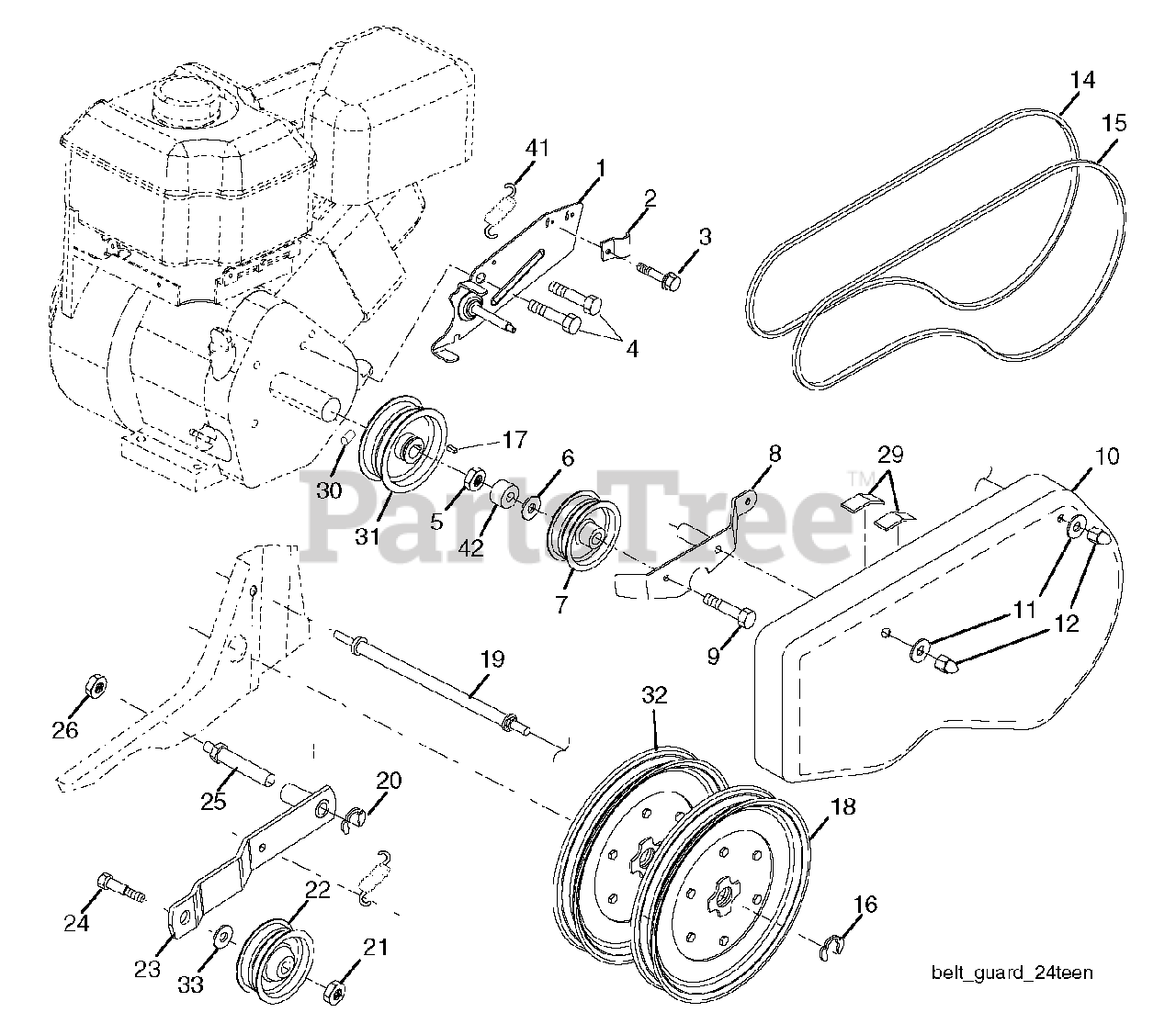

BELT GUARD PULLEY Parts Diagram

  • Title

1

Jonsered 532439162

RP ASSEMBLY,BRACKET,BELTGUARD
(Superseded to 532446043)

$

$

Not available

2

Jonsered 532446045

CLIP.PLATED
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

3

Jonsered 532150050

SCREW.HXTAP.10-24

$4.99

$

In Stock, only 1 left!

0

4

Jonsered 874770508

BOLT

$4.99

$

Usually ships in 3-10 days

0

5

Jonsered 532751153

NUT, LOCK 5/16-18

$4.99

$

In Stock, Qty 9

0

6

Jonsered 532437259

Axle Bushing Spacer

$3.99

$

Usually ships in 3-10 days

0

7

Jonsered 584911201

Flat Idler Pulley

$9.49

$

Usually ships in 3-10 days

0

8

Jonsered 532446051

ARM.ASM.REV.IDLER.TILL.BLACK

$27.99

$

Usually ships in 3-10 days

0

9

Jonsered 874780536

BOLT NLA

$4.99

$

Usually ships in 3-10 days

0

10

Jonsered 532195851

No Description Available
(Superseded to 532195855)

$145.99

$

Usually ships in 3-10 days

0

11

Jonsered 819091016

WASHER
(Superseded to 596582301)

$3.99

$

In Stock, Qty 12

0

12

Jonsered 532104213

CAP
(Superseded to 583644101)

$6.49

$

Usually ships in 3-10 days

0

14

Jonsered 532133035

BELT

$42.99

$

In Stock, only 1 left!

0

15

Jonsered 532446054

BELT.TILLER.DRIVE
(Superseded to 599385301)

$9.99

$

In Stock, Qty 20+

0

16

Jonsered 812000028

RETAINING RING LT
(Superseded to 532002267)

$7.49

$

In Stock, Qty 20+

0

17

Jonsered 532446048

(Superseded to 532002649)

$4.99

$

In Stock, only 1 left!

0

18

Jonsered 532151236

SHEAVE,TRANS."D"

$34.99

$

Usually ships in 3-10 days

0

19

Jonsered 532188502

BOLT.BELT.GUARD

$10.99

$

Usually ships in 3-10 days

0

20

Jonsered 812000036

KLIP RING TI

$6.49

$

In Stock, only 1 left!

0

21

Jonsered 532751153

NUT, LOCK 5/16-18

$4.99

$

In Stock, Qty 9

0

22

Jonsered 532180522

PULLEY.W/SPACER.2.25

$31.99

$

Usually ships in 3-10 days

0

23

Jonsered 580530002

ARM.ASM.IDLER.PNT

$11.99

$

Usually ships in 3-10 days

0

24

Jonsered 874780524

HEX BOLT
(Superseded to 596582201)

$3.99

$

In Stock, Qty 18

0

25

Jonsered 532106968

SHAFT.IDLER.TILLER

$15.99

$

Usually ships in 3-10 days

0

26

Jonsered 873350500

JAM NUT TI

$8.99

$

Usually ships in 3-10 days

0

29

Jonsered 532109227

PAD IDLER TI

$3.99

$

In Stock, Qty 20+

0

30

Jonsered 823200404

No Description Available
(Superseded to 583610201)

$6.49

$

Usually ships in 3-10 days

0

31

Jonsered 532101189

No Description Available

$66.99

$

Usually ships in 3-10 days

0

32

Jonsered 532151223

SHEAVE.TRANS

$34.99

$

Usually ships in 3-10 days

0

33

Jonsered 532155415

WASHER.20X8.5

$4.99

$

In Stock, only 2 left!

0

41

Jonsered 532180307

SPRING.EXTENSION

$3.99

$

In Stock, only 1 left!

0

42

Jonsered 532421613

SPACER.CONTROL.LEVER

$4.99

$

Usually ships in 3-10 days

0
