J208F24 (960820036-00) - Jonsered Front-Tine Cultivator (2015-11) HANDLE Parts Diagram

Front-Tine Cultivator

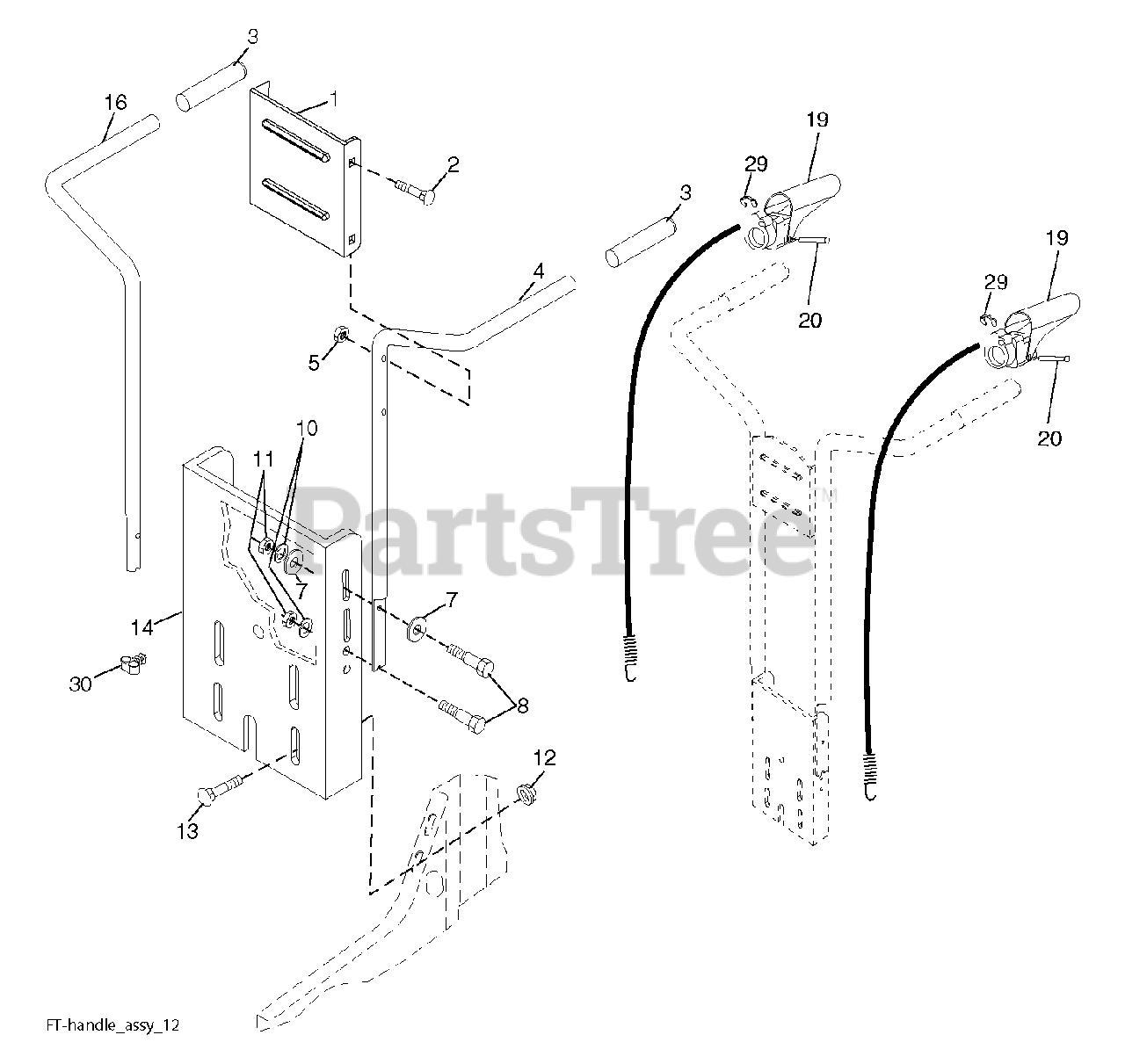

HANDLE Parts Diagram

  • Title

1

588253001

$

$

Not available

2

Jonsered 872140512

No Description Available
(Superseded to 596030801)

$4.99

$

Usually ships in 3-10 days

0

3

Jonsered 532165787

GRIP.HANDLE.BLACK

$6.99

$

In Stock, only 2 left!

0

4

Jonsered 532446013

HANDLE.LH.D.BEND.BLACK

$

$

Not available

5

Jonsered 532751153

NUT, LOCK 5/16-18

$3.49

$

In Stock, Qty 20+

0

7

Jonsered 819121414

WASHER
(Superseded to 734117201)

$

$

Not available

8

Jonsered 874760520

BOLT
(Superseded to 595305701)

$4.99

$

In Stock, Qty 14

0

10

Jonsered 810040500

LOCKWASHER
(Superseded to 596238801)

$3.49

$

In Stock, only 2 left!

0

11

Jonsered 873220500

NUT
(Superseded to 596436301)

$3.49

$

In Stock, only 3 left!

0

12

Jonsered 898000129

NUT
(Superseded to 873800500)

$3.49

$

In Stock, Qty 20+

0

13

Jonsered 532180847

BOLT, RDHD SQNK 5/16-18 X 3/4
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

14

Jonsered 580472001

PANEL.HANDLE.RED.667.PNT

$

$

Not available

16

Jonsered 532446014

HANDLE.RH.D.BEND.BLACK

$

$

Not available

19

Jonsered 532188562

No Description Available

$53.99

$

In Stock, only 2 left!

0

20

Jonsered 532188555

PIN, PIVOT

$4.99

$

In Stock, only 1 left!

0

29

Jonsered 812000059

RETAINING RING
(Superseded to 582730101)

$6.49

$

Usually ships in 3-10 days

0

30

Jonsered 532181580

CLIP.ROUTING DUAL

$3.49

$

Usually ships in 3-10 days

0
