J630ES (961920066-00) - Jonsered Snow Thrower (2013-9) AUGER HOUSING IMPELLER Parts Diagram

Snow Thrower

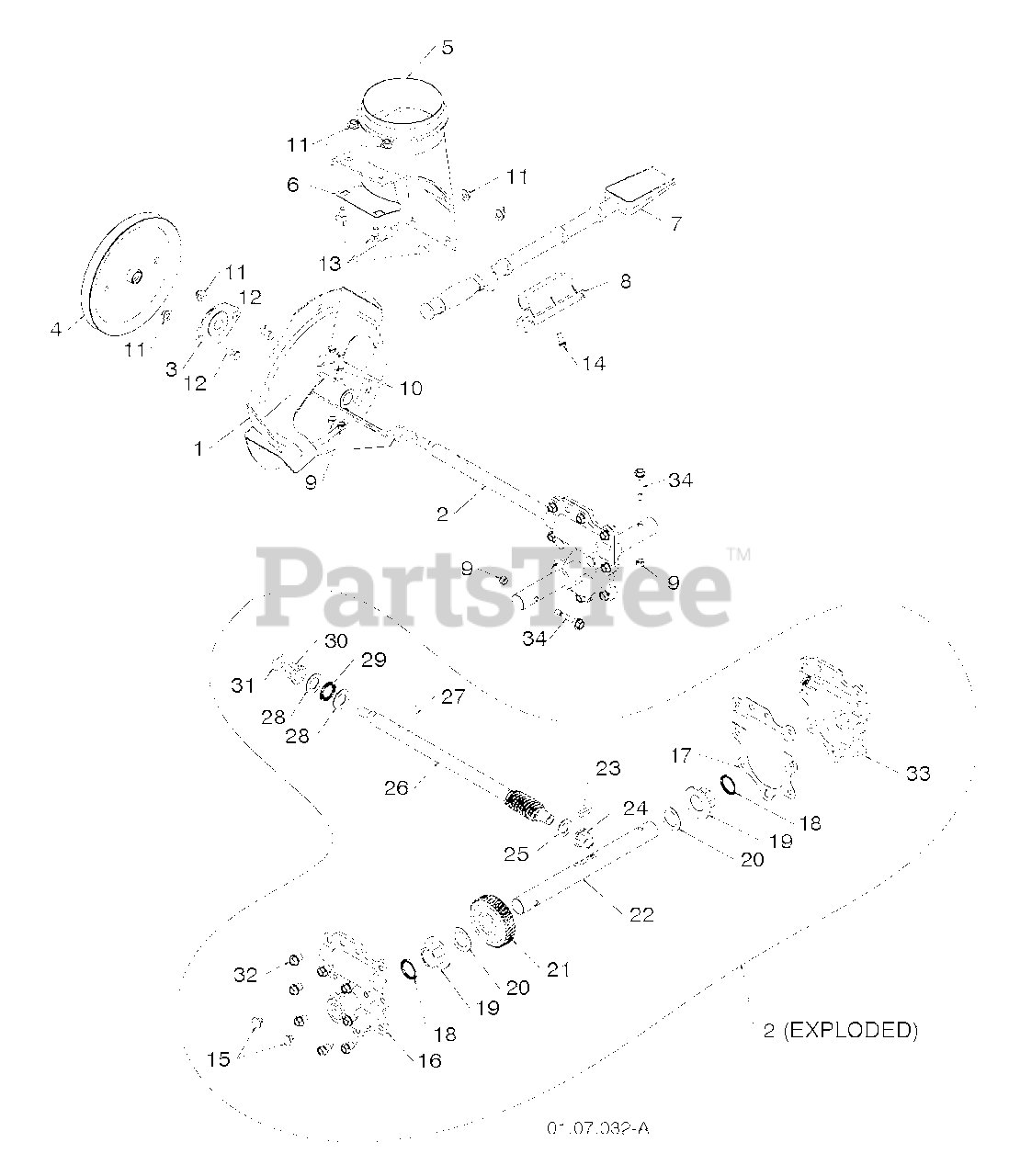

AUGER HOUSING IMPELLER Parts Diagram

  • Title

1

Jonsered 532184105

IMPELLER ASSY
(Superseded to 532175321)

$78.99

$

Usually ships in 3-10 days

0

2

Jonsered 584648301

Gearcase/Pulley Kit
(Superseded to 586854201)

$279.99

$

Usually ships in 3-10 days

0

3

Jonsered 532188909

BEARING FLANGE

$24.99

$

In Stock, Qty 6

0

4

Jonsered 585093201

Impeller Pulley, 7.5" Screw-on

$44.99

$

In Stock, only 1 left!

0

5

Jonsered 532442438

BASE.DISCHARGE.CHUTE
(Superseded to 585056901)

$11.99

$

In Stock, Qty 18

0

6

Jonsered 532184095

BRACKET, CORNER DISCHARGE
(Superseded to 532178675)

$4.99

$

Usually ships in 3-10 days

0

7

Jonsered 532192199

CLEAN OUT TOOL

$34.99

$

In Stock, only 2 left!

0

8

Jonsered 532405400

CLIP.CLEANOUT.TOOL

$6.49

$

In Stock, only 2 left!

0

9

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

10

Jonsered 874780426

SCREW.HEX.HD1/4-20X

$6.49

$

Usually ships in 3-10 days

0

11

Jonsered 532427942

NUTNYLOK.FLRANGE.5/16-18

$4.99

$

Usually ships in 3-10 days

0

12

Jonsered 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

13

Jonsered 532180355

BOLT.CARRIAGE.5/16-18X

$7.49

$

In Stock, Qty 13

0

14

Jonsered 532194189

SCREW.HWH.13-16-5.8.BZP

$7.49

$

In Stock, Qty 20+

0

15

Jonsered 532407760

CASE PLUG
(Superseded to 532086447)

$

$

Not available

16

Jonsered 532427302

GEAR.BOX.COVER.RIGHT.SIDE

Note: RH

$42.99

$

Usually ships in 3-10 days

0

17

Jonsered 532427345

GASKET.GEAR.BOX

$6.49

$

In Stock, only 1 left!

0

18

Jonsered 532407770

OIL SEAL
(Superseded to 532174698)

$

$

Not available

19

Jonsered 532407762

FLANGE BUSHING-1"
(Superseded to 532174701)

$

$

Not available

20

Jonsered 532174697

WASHER TRUST 1"
(Superseded to 532007396)

$

$

Not available

21

Jonsered 580364101

WORMGEAR.AUGER.SNOW

$145.99

$

Usually ships in 3-10 days

0

22

Jonsered 532407764

AUGER SHAFT
(Superseded to 532174657)

$

$

Not available

23

Jonsered 532189282

KEY, SQUARE 1/4 X .875

$7.49

$

In Stock, only 1 left!

0

24

Jonsered 532407758

FLANGE BUSHING-5/8
(Superseded to 532174686)

$

$

Not available

25

Jonsered 532174683

WASHER, THRUST 5/8

$4.99

$

Usually ships in 3-10 days

0

26

Jonsered 584648401

Gearcase/Pulley Kit
(Superseded to 586854201)

$279.99

$

Usually ships in 3-10 days

0

27

Jonsered 532184205

PIN, ROLL 3/16 X 1-1/8
(Superseded to 7836M)

$

$

Not available

28

Jonsered 532174681

WASHER, THRUST 3/4

$14.99

$

Usually ships in 3-10 days

0

29

Jonsered 532174684

BEARING TRUST 3/4

$9.99

$

Usually ships in 3-10 days

0

30

Jonsered 532407769

BUSHING, FLANGE 3/4
(Superseded to 407769)

$2.99

$

Usually ships in 3-10 days

0

31

Jonsered 532407768

O-RING

$6.49

$

Usually ships in 3-10 days

0

32

Jonsered 532407767

HEX SCREW-5/16 X 3/4
(Superseded to 532150078)

$3.99

$

In Stock, Qty 20+

0

33

Jonsered 532427317

GEAR.BOX.COVER.LEFT.SIDE

Note: LH

$42.99

$

Usually ships in 3-10 days

0

34

Jonsered 532192090

BOLT, SHOULDER SHEAR
(Superseded to 588077502)

$3.99

$

In Stock, Qty 20+

0
