Jet 55 (954170014-M) - Husqvarna Walk-Behind Mower (1999-02) DRIVE Parts Diagram

Walk-Behind Mower

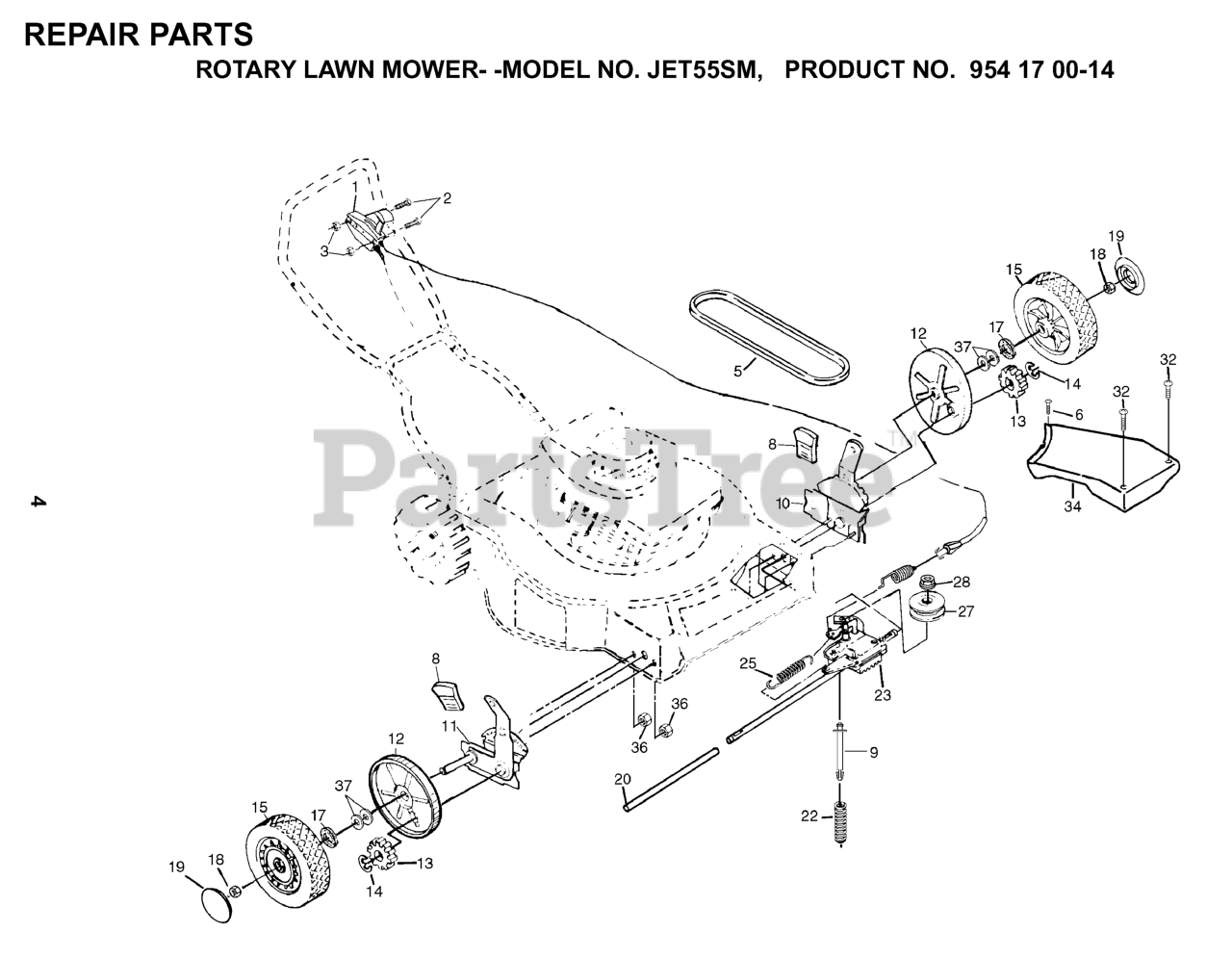

DRIVE Parts Diagram

  • Title

34

Husqvarna 532700422

COVER DRIVE

$11.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532057143

WAVE WASHER
(Superseded to 532428450)

$7.99

$

In Stock, only 2 left!

0

6

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532063601

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532151010

WHEEL ADJUSTER KIT RH

$31.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532137090

SPRING.EXTENSION

$6.49

$

In Stock, only 1 left!

0

- -

Husqvarna 532750319

DECAL HEIGHT ADJUST LH

$

$

Not available

23

Husqvarna 532702511

GEAR CASE ASMBLY
(Superseded to 532187211)

$109.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532151009

WHEEL ADJUSTER ASSY (LEFT)

$21.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

28

Husqvarna 532132010

FLANGED LOCKNUT 3/8-16 ZINC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 532088080

DUST SHROUD PM
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532075192

SPRING

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532146527

BELT THERM .32
(Superseded to 532157769)

$14.99

$

In Stock, only 3 left!

0

20

Husqvarna 532086012

DRV SHAFT TUBE PM

$

$

Not available

36

Husqvarna 532063601

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532801156

WHEEL & TIRE 8 X 2
(Superseded to 532193144)

$

$

Not available

27

Husqvarna 532137052

PULLEY
(Superseded to 532194126)

$

$

Not available

- -

Husqvarna 532750320

DECAL HEIGHT ADJUST RH NLA

$

$

Not available

1

Husqvarna 532142103

DRIVE CONTROL

$61.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 532157008

HUBCAP.8".GREY

$

$

Not available

2

Husqvarna 532144929

SCREW 1/4-20 X 2.12
(Superseded to 532158755)

$

$

Not available

8

Husqvarna 532132800

SELECTOR KNOB
(Superseded to 532701037)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532146072

SCREW

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532137054

PINION GEAR

$6.49

$

Usually ships in 3-10 days

0

- -

Husqvarna GCK5000

NEEDS DESCRIPTION

$

$

Not available

9

Husqvarna 532150495

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

- -

Husqvarna MK22SD

NEEDS DESCRIPTION

$

$

Not available

14

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0
