JR 1230 E (UT-32022) - Homelite Rear-Engine Riding Mower Differential Parts Diagram

Rear-Engine Riding Mower

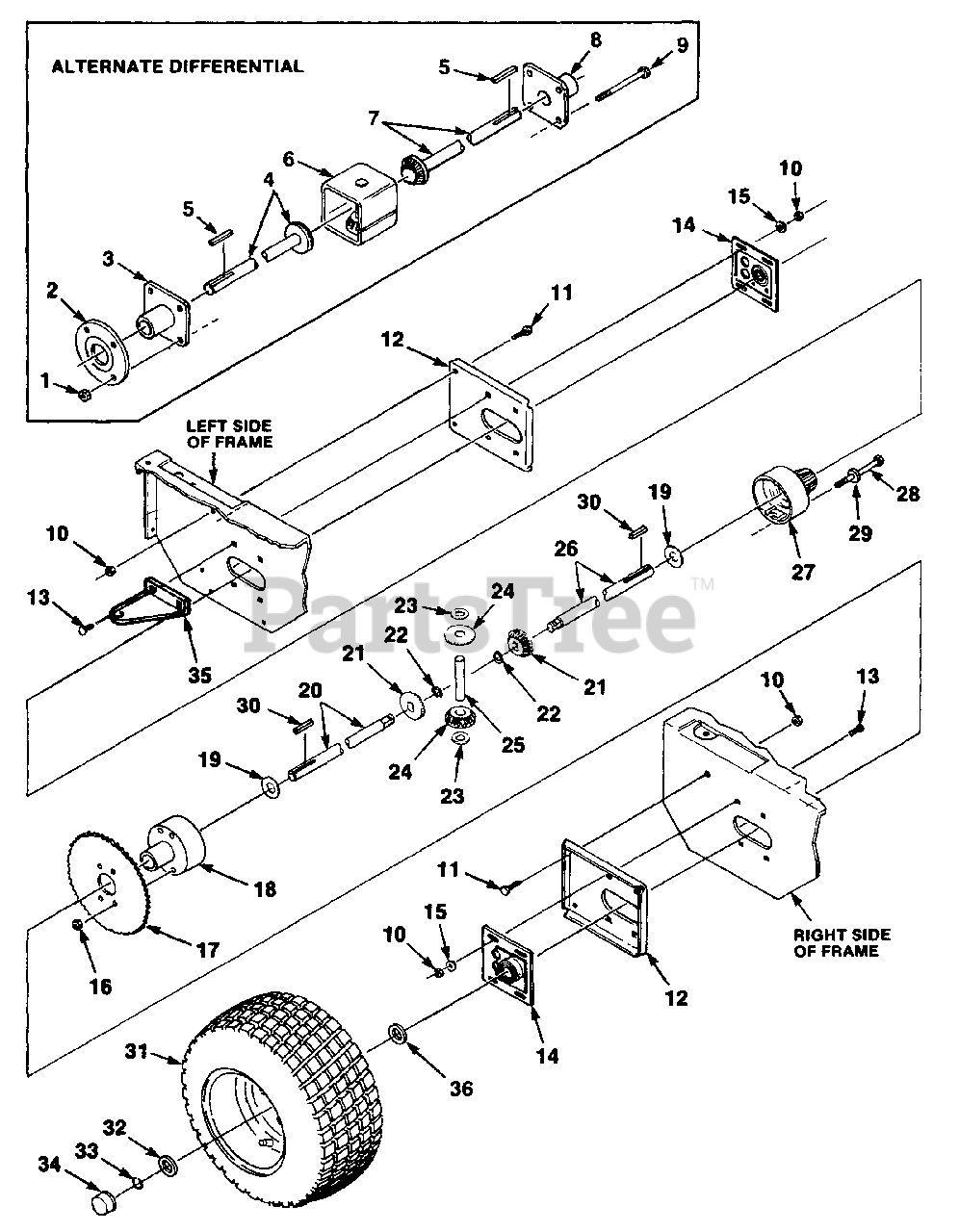

Differential Parts Diagram

  • Title

Homelite JA991308

DIFFERENTIAL ASSEMBLY

Note: (Stewart #9573) (incl. #s 1-9)

$

$

Currently unavailable

1

Homelite JA991305

NUT- Hex

$4.49

$

Usually ships in 3-7 days

0

2

Homelite JA990233

SPACER- Differential

$

$

Currently unavailable

3

Homelite JA990234

CAP & BEARING (R.H.)

$

$

Currently unavailable

4

Homelite JA991304

AXLE- R.H. w/Gear

$

$

Currently unavailable

5

Homelite JA310611

KEY 3/16 x 3/16 x 2 1/2

Note: (not part of differential)

$

$

Currently unavailable

6

Homelite JA990231

HOUSING & GEAR

$

$

Currently unavailable

7

Homelite JA991303

AXLE- L.H. w/Gear

$

$

Currently unavailable

8

Homelite JA990235

CAP & BEARING (L.H.)

$

$

Currently unavailable

9

Homelite JA990241

SCREW- Hex 5/16-18 x 4

$

$

Not available

10

Homelite JA444708

NUT- 1/4-20 lock

$

$

Currently unavailable

11

Homelite JA400106

SCREW 1/4-20 x 5/8

$

$

Currently unavailable

12

Homelite JA991167

SUPPORT- Frame

$

$

Currently unavailable

13

Homelite JA441606

BOLT- 1/4-20 x 3/4

$

$

Not available

14

Homelite JA992700

RETAINER & BEARING

$

$

Currently unavailable

15

Homelite JA452004

WASHER 1/4
(Superseded to 84026)

$

$

Not available

16

Homelite JA444762

NUT- Centerlock 3/8-16

$

$

Currently unavailable

17

Homelite JA990992

SPROCKET- 48 tooth

$

$

Currently unavailable

Homelite JA991307

DIFFERENTIAL (Peerless 774495)

Note: (Incl. #s 18-29)

$

$

Currently unavailable

18

Homelite JA990207

HOUSING- L.H. Gear

$

$

Currently unavailable

19

Homelite JA990204

WASHER

$4.99

$

Usually ships in 3-7 days

0

20

Homelite JA991349

AXLE-Short (RH)

$

$

Currently unavailable

21

Homelite JA990195

GEAR- Bevel

$

$

Currently unavailable

22

Homelite JA990205

RING- Snap

$

$

Currently unavailable

23

Homelite JA990199

WASHER- Thrust

$

$

Currently unavailable

24

Homelite JA990202

GEAR- Pinion

$173.99

$

Usually ships in 3-7 days

0

25

Homelite JA990201

PIN- Drive

$

$

Currently unavailable

26

Homelite JA991348

AXLE-Long(LH)

$

$

Currently unavailable

27

Homelite JA990206

GEAR HOUSING- R.H.

$

$

Currently unavailable

28

Homelite JA403754

SCREW- Mach hex hd.

$15.99

$

Usually ships in 3-7 days

0

29

Homelite JA990203

WASHER

$

$

Currently unavailable

30

Homelite JA310611

KEY

$

$

Currently unavailable

31

Homelite JA990825

TIRE & HUB (rear)

$

$

Currently unavailable

32

Homelite JA313820

SPACER- Axle

$

$

Currently unavailable

33

Homelite JA458038

RING- Retaining

$

$

Currently unavailable

34

Homelite JA376090

CAP-Hub

$

$

Not available

35

Homelite JA991144

BRACKET

$

$

Currently unavailable

36

Homelite JA455055

WASHER- Flat

$

$

Not available
