JS 26 (7800807) - John Deere 22" Walk-Behind Mower (2011) Engine Group (7501747) Parts Diagram

22" Walk-Behind Mower

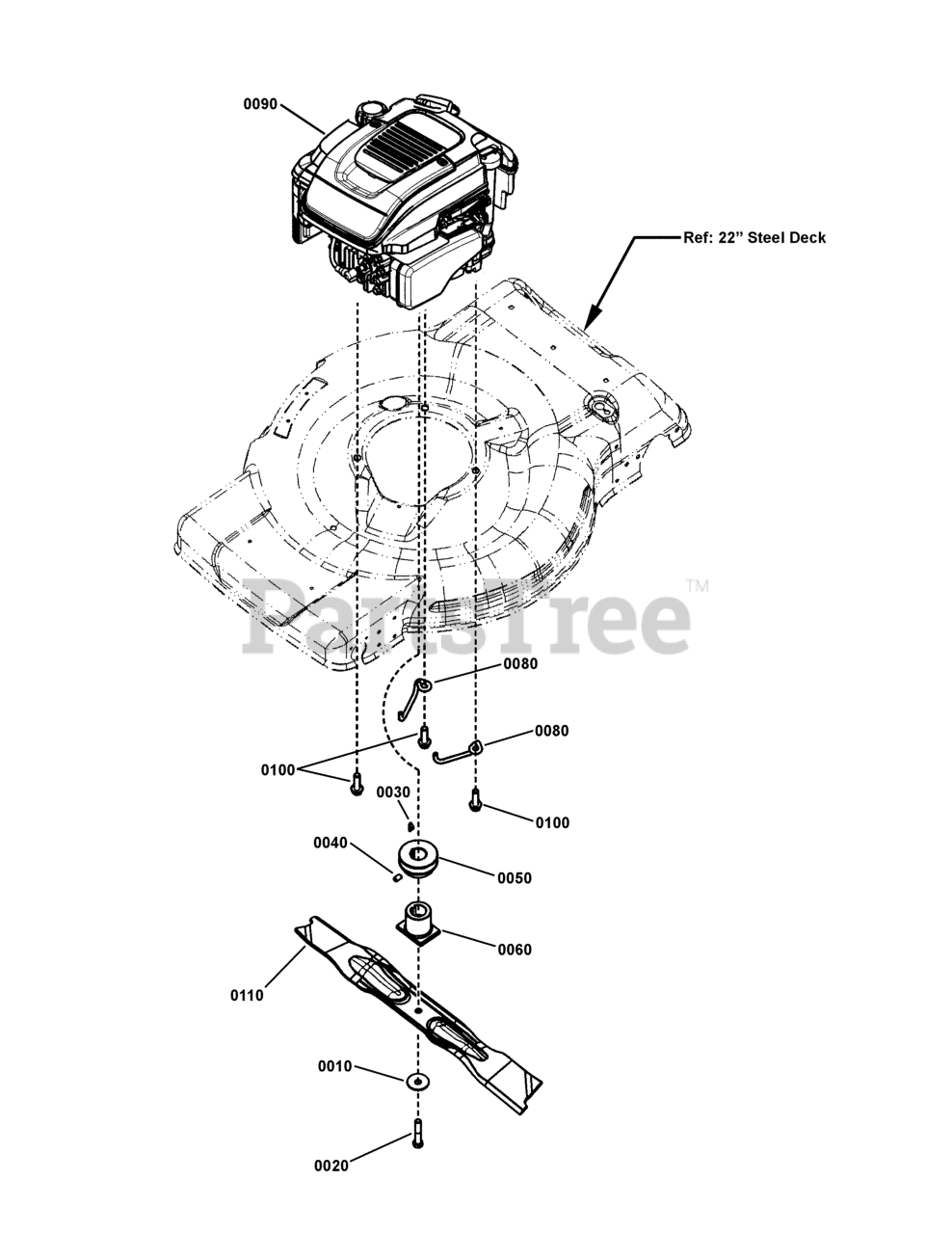

Engine Group (7501747) Parts Diagram

  • Title
0010

Murray 7012063SM

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, Qty 20+

0

0020

Murray 7090167SM

CAPSCREW, Hex Head, 3/8-16 x 2, GR 5

$3.99

$

Usually ships in 2-12 days

0

0030

Murray 7091214YP

KEY, Hi-Pro, #605

$4.99

$

In Stock, only 3 left!

0

0040

Murray 7092086YP

SET SCREW, Hex Recess, 5/16-18 x 1/2

$4.99

$

Usually ships in 2-12 days

0

0050

Murray 7100437YP

PULLEY, Engine

$40.99

$

Usually ships in 2-12 days

0

0060

Murray 7101414YP

HUB, Blade, 2 Position

$16.99

$

In Stock, only 2 left!

0

0080

Murray 7103517YP

BELT GUIDE, Engine

$3.49

$

Usually ships in 2-12 days

0

0090

Murray 128T02-0119-B1

* ENGINE, 700 Series Quantum

Note: (Engine Model: 128T02-0119-B1)

$

$

Currently unavailable

0100

Murray 7900072YP

SCREW, Hex Washer Self Tap, 3/8-16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

0110

Murray 7104179AYP

BLADE, 22, Wave, Deere Steel Deck

$43.99

$

In Stock, only 2 left!

0
