JS 26 (7800807) - John Deere 22" Walk-Behind Mower (2011) Handles Group (7501542) Parts Diagram

22" Walk-Behind Mower

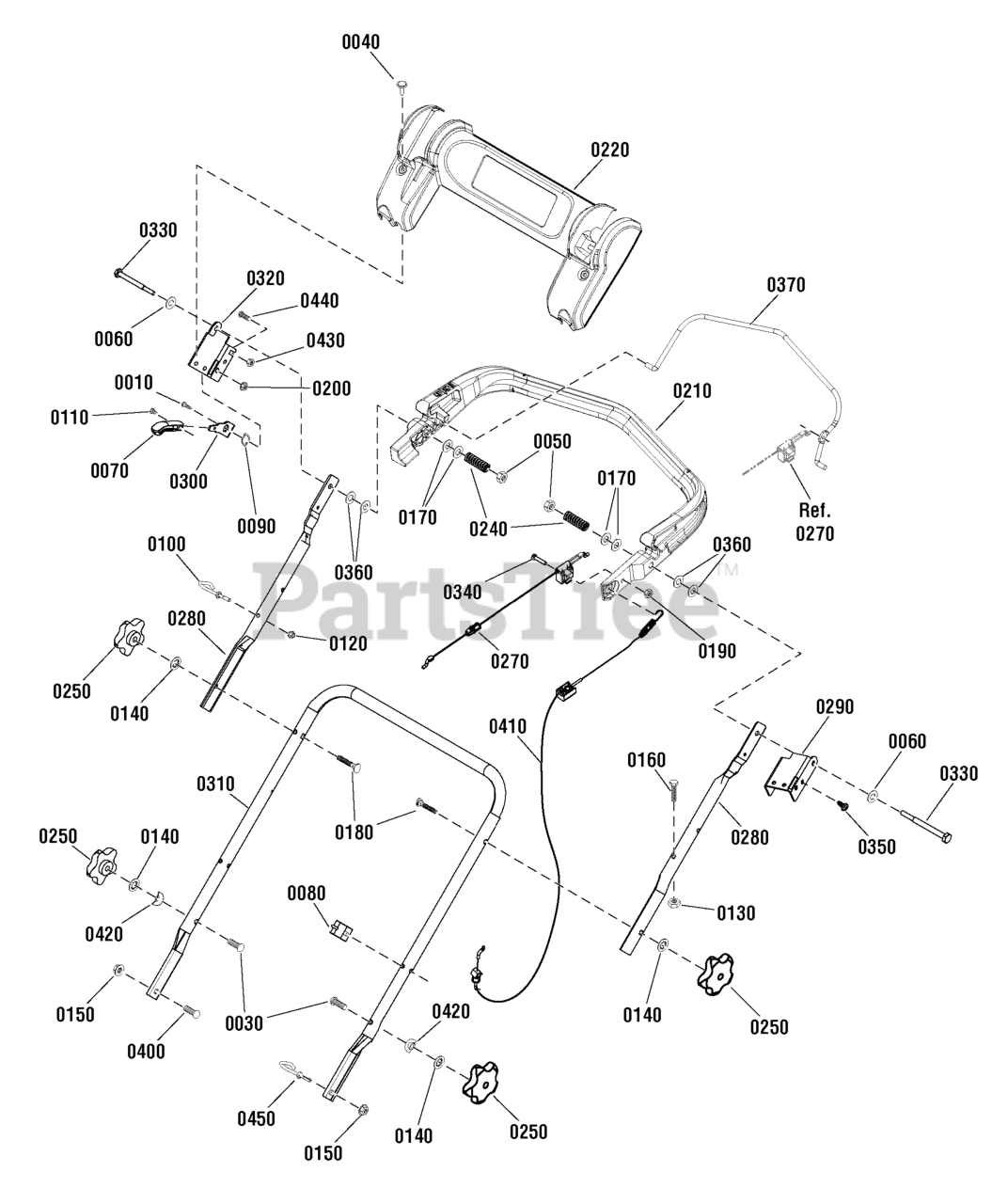

Handles Group (7501542) Parts Diagram

  • Title
0010

Murray 1716654SM

BOLT, Shoulder, 5/16-18 x 3/4, G5

$5.49

$

In Stock, Qty 5

0

0030

Murray 1931337SM

BOLT, Carriage, Short Neck, 5/16-18 x 1-1/2, G5
(Superseded to 703296)

$4.49

$

In Stock, Qty 10

0

0040

Murray 1960382YP

RIVET, Pop

$3.99

$

Usually ships in 2-12 days

0

0050

Murray 2860694SM

NUT, Hex Flange, ESNA, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 5

0

0060

Murray 7015686SM

WASHER, Shim

$3.99

$

Usually ships in 2-12 days

0

0070

Murray 7023655YP

LEVER, Throttle Control

$3.99

$

Usually ships in 2-12 days

0

0080

Murray 7104614YP

FITTING, Cable

$4.49

$

Usually ships in 2-12 days

0

0090

Murray 7026257MA

WASHER, Wave

$4.49

$

In Stock, only 3 left!

0

0100

Murray 7028488MA

GUIDE, Rope

$6.49

$

Usually ships in 2-12 days

0

0110

Murray 7071921YP

RIVET, Plastic Snap

$3.49

$

Usually ships in 2-12 days

0

0120

Murray 7076978SM

NUT, Hex Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0130

Murray 7090372SM

NUT, Center Lock Hex, 1/4-20, GR 5
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0140

Murray 7090391SM

WASHER, Internal Tooth, 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0150

Murray 7090951SM

NUT, Center Lock Hex, Large, 5/16-18
(Superseded to 704001)

$4.49

$

In Stock, Qty 19

0

0160

Murray 7091003YP

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, GR 5

$3.49

$

In Stock, only 2 left!

0

0170

Murray 7091130SM

WASHER, Flat, 5/16

$3.99

$

In Stock, Qty 5

0

0180

Murray 7091189YP

BOLT, Carriage, Curved Head, 5/16-18 x 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 18

0

0190

Murray 7091290SM

NUT, Hex Lock, Nylon, #10C
(Superseded to 703412)

$4.49

$

In Stock, Qty 13

0

0200

Murray 7091601SM

NUT, Hex Flange, 5/16-18, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0210

Murray 7101239YP

HANDLE, Pivoting

$72.99

$

Usually ships in 2-12 days

0

0220

Murray 7104759YP

PANEL, Upper

$33.99

$

Usually ships in 2-12 days

0

0240

Murray 7104703YP

SPRING, Compression, .095 x .550 x 1.575

$7.99

$

Usually ships in 2-12 days

0

0250

Murray 7102990YP

KNOB, Handle
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0270

Murray 7105033YP

CABLE, OPC

$20.99

$

In Stock, Qty 20+

0

0280

Murray 7300435AYP

HANDLE, Upper

$75.99

$

Usually ships in 2-12 days

0

0290

Murray 7301187AYP

BRACKET, Rotation Limit, LH

$5.49

$

Usually ships in 2-12 days

0

0300

Murray 7300526AYP

HANDLE, Lock
(Superseded to 7300526BMYP)

$31.99

$

Usually ships in 2-12 days

0

0310

Murray 7301182AYP

HANDLE, Lower

$87.99

$

In Stock, only 1 left!

0

0320

Murray 7301186AYP

BRACKET, Rotation Limit, RH

$6.49

$

Usually ships in 2-12 days

0

0330

Murray 7900045YP

BOLT, Shoulder, 5/16 x 2-1/2

$3.99

$

Usually ships in 2-12 days

0

0340

Murray 7900080YP

SCREW, Hex Head Machine, #10-24 x 7/8

$3.49

$

Usually ships in 2-12 days

0

0350

Murray 7900067YP

SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

0360

Murray 17X169MA

WASHER, Flat, 3/8
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

0370

Murray 7101322AYP

BAIL, Pivoting Handle - 21 JD WBM

$18.99

$

In Stock, only 1 left!

0

0400

Murray 340720MA

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0410

Murray 7103990YP

CABLE, Drive, VS, FWD

$29.99

$

In Stock, Qty 19

0

0420

Murray 880615YP

WASHER, Formed

$4.99

$

In Stock, only 2 left!

0

0430

Murray 15X143MA

NUT, Flange Lock, 1/4-20

$4.99

$

In Stock, only 4 left!

0

0440

Murray 7090803YP

BOLT, Flat Head Square Neck, 1/4-20 x 5/8, GR 5
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

0450

Murray 7104761YP

GUIDE, Cable

$7.49

$

In Stock, only 1 left!
